电商仓库建设之DWS和DWT层

前面的数据底层架构搭建好了过后，之后的工作就是写SQL了，主要是ETL工程师负责处理。
实际工作中，可能领导着急想看数据，可能倒过来开发，也就是说先处理ADS,在根据ADS的主题反过来开发DWS(按天)和DWT(累计)。DWS\DWT\ADS的创建完全取决于需求。主题和维度对应的，维度可以确定有哪些主题；而主题中具体的字段是和相关事实表对应的，相关事实表的度量值可以确定有哪些字段。

1. 业务术语

1.1 用户

用户以设备为判断标准，在移动统计中，每个独立设备认为是一个独立用户。Android系统根据IMEI号，IOS系统根据OpenUDID来标识一个独立用户，每部手机一个用户。

1.2 新增用户

首次联网使用应用的用户。如果一个用户首次打开某 APP，那这个用户定义为新增用户；卸载再安装的设备，不会被算作一次新增。新增用户包括日新增用户、周新增用户、月新增用户。

1.3 活跃用户

打开应用的用户即为活跃用户，不考虑用户的使用情况。每天一台设备打开多次会被计为一个活跃用户。

1.4 周(月)活跃用户

某个自然周(月)内启动过应用的用户，该周(月)内的多次启动只记一个活跃用户。

1.5 月活跃率

月活跃用户与截止到该月累计的用户总和之间的比例。

1.6 沉默用户

用户仅在安装当天(次日)启动一次，后续时间无再启动行为。该指标可以反映新增用户质量和用户与 APP 的匹配程度。

1.7 版本分布

不同版本的周内各天新增用户数，活跃用户数和启动次数。利于判断APP各个版本之间的优劣和用户行为习惯。

1.8 本周回流用户

上周未启动过应用，本周启动了应用的用户。

1.9 连续n周活跃用户

连续n周，每周至少启动一次。

1.10 忠诚用户

连续活跃5周以上的用户

1.11 连续活跃用户

连续 2 周及以上活跃的用户

1.12 近期流失用户

连续n(2<= n <= 4)周没有启动应用的用户。(第n+1周没有启动过)

1.13 留存用户

某段时间内的新增用户，经过一段时间后，仍然使用应用的被认作是留存用户；这部分用户占当时新增用户的比例即是留存率。

1.14 用户新鲜度

每天启动应用的新老用户比例，即新增用户数占活跃用户数的比例。

1.15 单次使用时长

每次启动使用的时间长度。

1.16 日使用时长

累计一天内的使用时间长度。

1.17 启动次数计算标准

IOS 平台应用退到后台就算一次独立的启动；Android 平台我们规定，两次启动之间的间隔小于 30 秒，被计算一次启动。用户在使用过程中，若因收发短信或接电话等退出应用30秒又再次返回应用中，那这两次行为应该是延续而非独立的，所以可以被算作一次使用行为，即一次启动。业内大多使用 30 秒这个标准，但用户还是可以自定义此时间间隔。

2. DWS层(用户行为)

DWS层数据不再采用压缩格式，避免报表和接口查询性能损失。

2.1 每日设备行为

每日设备行为，主要按照设备 id 统计。

建表语句

sql

drop table if exists dws_uv_detail_daycount;
create external table dws_uv_detail_daycount
(
    `mid_id` string COMMENT '设备唯一标识',
    `user_id` string COMMENT '用户标识',
    `version_code` string COMMENT '程序版本号',
    `version_name` string COMMENT '程序版本名',
    `lang` string COMMENT '系统语言',
    `source` string COMMENT '渠道号',
    `os` string COMMENT 'Android版本',
    `area` string COMMENT '区域',
    `model` string COMMENT '手机型号',
    `brand` string COMMENT '手机品牌',
    `sdk_version` string COMMENT 'sdkVersion',
    `gmail` string COMMENT 'gmail',
    `height_width` string COMMENT '屏幕宽高',
    `app_time` string COMMENT '客户端日志产生时的时间',
    `network` string COMMENT '网络模式',
    `lng` string COMMENT '经度',
    `lat` string COMMENT '纬度',
    `login_count` bigint COMMENT '活跃次数'
) COMMENT'每日设备行为表'
partitioned by(dt string)
stored as parquet
location '/warehouse/gmall/dws/dws_uv_detail_daycount';

数据加载

sql

insert overwrite table dws_uv_detail_daycount partition(dt='2020-03-10')
select
    mid_id,
    concat_ws('|', collect_set(user_id)) user_id,
    concat_ws('|', collect_set(version_code)) version_code,
    concat_ws('|', collect_set(version_name)) version_name,
    concat_ws('|', collect_set(lang))lang,
    concat_ws('|', collect_set(source)) source,
    concat_ws('|', collect_set(os)) os,
    concat_ws('|', collect_set(area)) area,
    concat_ws('|', collect_set(model)) model,
    concat_ws('|', collect_set(brand)) brand,
    concat_ws('|', collect_set(sdk_version)) sdk_version,
    concat_ws('|', collect_set(gmail)) gmail,
    concat_ws('|', collect_set(height_width)) height_width,
    concat_ws('|', collect_set(app_time)) app_time,
    concat_ws('|', collect_set(network)) network,
    concat_ws('|', collect_set(lng)) lng,
    concat_ws('|', collect_set(lat)) lat,
    count(*) login_count
from dwd_start_log
where dt='2020-03-10'
group by mid_id;

3. DWS层(业务)

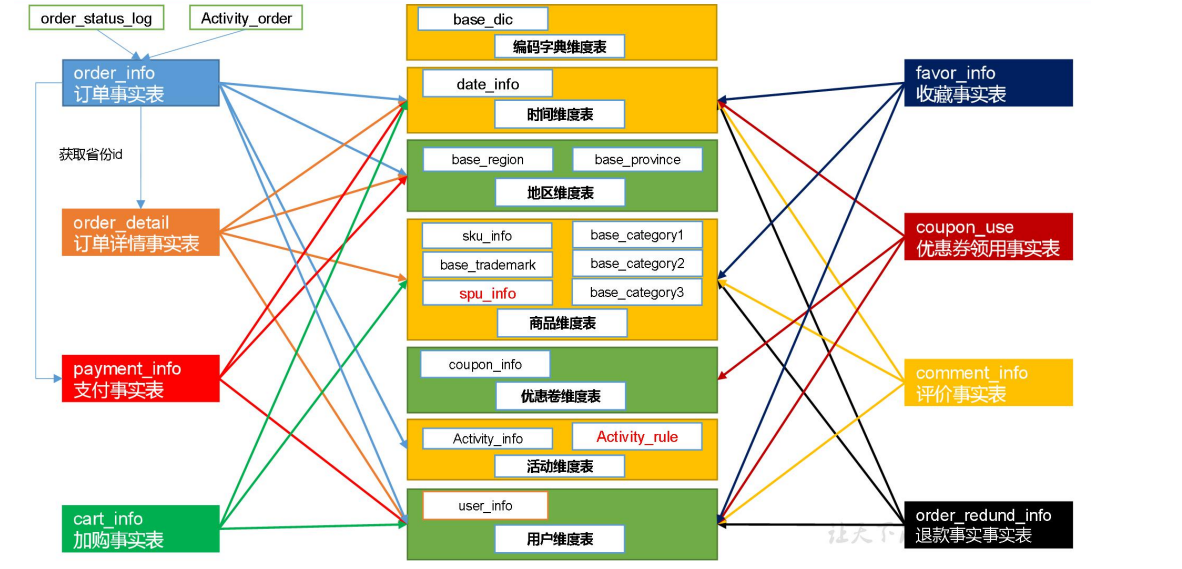

DWS层的宽表字段，是站在不同维度的视角去看事实表。重点关注业务事实表的度量值。也就是说DWS的表里面主要是维度+各种事实度量值字段组成。
Alt text 比如用户维度+订单个数(订单事实表)+订单金额(订单事实表)+支付次数(支付事实表)+支付总金额(支付事实表)+加购次数(加购事实表)+加购金额(加购事实表)

3.1 每日会员行为

建表语句

sql

drop table if exists dws_user_action_daycount;
create external table dws_user_action_daycount
(
user_id string comment '用户 id',
login_count bigint comment '登录次数',
cart_count bigint comment '加入购物车次数',
cart_amount double comment '加入购物车金额',
order_count bigint comment '下单次数',
order_amount decimal(16,2) comment '下单金额',
payment_count bigint comment '支付次数',
payment_amount decimal(16,2) comment '支付金额'
) COMMENT '每日用户行为'
PARTITIONED BY (`dt` string)
stored as parquet
location '/warehouse/gmall/dws/dws_user_action_daycount/'
tblproperties ("parquet.compression"="lzo");

数据装载,为了避免过多的join导致逻辑不太好查看，使用with语法提前准备数据

sql

with
tmp_login as --当日登录统计，统计每个会员当日登录次数
(
    select
        user_id,
        count(*) login_count --登录次数
    from dwd_start_log
    where dt='2020-03-10'
    and user_id is not null
    group by user_id
),
tmp_cart as --当日加入购物车统计，统计每个会员当日加入购物车情况
(
    select
        user_id,
        count(*) cart_count, --加入购物车次数
        sum(cart_price*sku_num) cart_amount --加入购物车金额
    from dwd_fact_cart_info
    where dt='2020-03-10'
and user_id is not null
and date_format(create_time,'yyyy-MM-dd')='2020-03-10'
    group by user_id
),
tmp_order as --当日下单统计，统计每个会员当日下单情况
(
    select
        user_id,
        count(*) order_count, --下单次数
        sum(final_total_amount) order_amount --下单金额
    from dwd_fact_order_info
    where dt='2020-03-10'
    group by user_id
) ,
tmp_payment as --当日支付统计，统计每个会员当日支付情况
(
    select
        user_id,
        count(*) payment_count, --支付次数
        sum(payment_amount) payment_amount --支付金额
    from dwd_fact_payment_info
    where dt='2020-03-10'
    group by user_id
),
tmp_order_detail as --当日订单详情统计，统计每个会员当日下单详细信息
(
    select
        user_id,
--结构为struct数组，每个数组元素对应该会员当日下单的一个商品，包含sku_id,sku_num(下单个
--数)，order_count(下单次数)，order_amount(下单金额)
        collect_set(named_struct('sku_id',sku_id,'sku_num',sku_num,'order_
count',order_count,'order_amount',order_amount)) order_stats
    from
    (
        select
            user_id,
            sku_id,
            sum(sku_num) sku_num,
            count(*) order_count,
            cast(sum(total_amount) as decimal(20,2)) order_amount
        from dwd_fact_order_detail
        where dt='2020-03-10'
        group by user_id,sku_id
    )tmp
    group by user_id
)

insert overwrite table dws_user_action_daycount partition(dt='2020-03-10')
select
    coalesce(tmp_login.user_id,tmp_cart.user_id,tmp_order.user_id,tmp_payment.
user_id,tmp_order_detail.user_id),
    login_count,
    nvl(cart_count,0),
    nvl(cart_amount,0),
    nvl(order_count,0),
    nvl(order_amount,0),
    nvl(payment_count,0),
    nvl(payment_amount,0),
    order_stats
from tmp_login
full outer join tmp_cart on tmp_login.user_id=tmp_cart.user_id
full outer join tmp_order on tmp_login.user_id=tmp_order.user_id
full outer join tmp_payment on tmp_login.user_id=tmp_payment.user_id
full outer join tmp_order_detail on tmp_login.user_id=tmp_order_detail.user_id

3.2 每日商品行为

建表语句

sql

drop table if exists dws_sku_action_daycount;
create external table dws_sku_action_daycount
(
    sku_id string comment 'sku_id',
    order_count bigint comment '被下单次数',
    order_num bigint comment '被下单件数',
    order_amount decimal(16,2) comment '被下单金额',
    payment_count bigint  comment '被支付次数',
    payment_num bigint comment '被支付件数',
    payment_amount decimal(16,2) comment '被支付金额',
    refund_count bigint  comment '被退款次数',
    refund_num bigint comment '被退款件数',
    refund_amount  decimal(16,2) comment '被退款金额',
    cart_count bigint comment '被加入购物车次数',
    cart_num bigint comment '被加入购物车件数',
    favor_count bigint comment '被收藏次数',
    appraise_good_count bigint comment '好评数',
    appraise_mid_count bigint comment '中评数',
    appraise_bad_count bigint comment '差评数',
    appraise_default_count bigint comment '默认评价数'
) COMMENT '每日商品行为表'
PARTITIONED BY (`dt` string)
stored as parquet
location '/warehouse/gmall/dws/dws_sku_action_daycount/';

数据加载

sql

with
tmp_order as --下单情况统计，统计每款商品(SKU)当日被下单的情况
(
    select
        sku_id,
        count(*) order_count, --被下单次数
        sum(sku_num) order_num, --被下单个数
        sum(total_amount) order_amount --被下单金额
    from dwd_fact_order_detail
    where dt='2020-03-10'
    group by sku_id
),
tmp_payment as --支付统计，统计每款商品(SKU)当日被支付的情况
(
    select
        sku_id,
        count(*) payment_count, --被支付次数
        sum(sku_num) payment_num, --被支付个数
        sum(total_amount) payment_amount --被支付金额
    from dwd_fact_order_detail
    where dt='2020-03-10'
    and order_id in
    (
        select
            id
        from dwd_fact_order_info
        where (dt='2020-03-10'
        or dt=date_add('2020-03-10',-1))
        and date_format(payment_time,'yyyy-MM-dd')='2020-03-10'
    )
    group by sku_id
),
tmp_refund as --退款统计
(
    select
        sku_id,
        count(*) refund_count, --被退款次数
        sum(refund_num) refund_num, --被退款件数
        sum(refund_amount) refund_amount --被退款金额
    from dwd_fact_order_refund_info
    where dt='2020-03-10'
    group by sku_id
),
tmp_cart as --加入购物车统计
(
    select
        sku_id,
        count(*) cart_count, --被加入购物车次数
        sum(sku_num) cart_num --被加入购物车个数
    from dwd_fact_cart_info
    where dt='2020-03-10'
    and date_format(create_time,'yyyy-MM-dd')='2020-03-10'
    group by sku_id
),
tmp_favor as --收藏统计
(
    select
        sku_id,
        count(*) favor_count --被收藏次数
    from dwd_fact_favor_info
    where dt='2020-03-10'
    and date_format(create_time,'yyyy-MM-dd')='2020-03-10'
    group by sku_id
),
tmp_appraise as
(
select
    sku_id,
    sum(if(appraise='1201',1,0)) appraise_good_count,
    sum(if(appraise='1202',1,0)) appraise_mid_count,
    sum(if(appraise='1203',1,0)) appraise_bad_count,
    sum(if(appraise='1204',1,0)) appraise_default_count
from dwd_fact_comment_info
where dt='2020-03-10'
group by sku_id
)

insert overwrite table dws_sku_action_daycount partition(dt='2020-03-10')
select
    sku_id,
    sum(order_count),
    sum(order_num),
    sum(order_amount),
    sum(payment_count),
    sum(payment_num),
    sum(payment_amount),
    sum(refund_count),
    sum(refund_num),
    sum(refund_amount),
    sum(cart_count),
    sum(cart_num),
    sum(favor_count),
    sum(appraise_good_count),
    sum(appraise_mid_count),
    sum(appraise_bad_count),
    sum(appraise_default_count)
from
(
    select
        sku_id,
        order_count,
        order_num,
        order_amount,
        0 payment_count,
        0 payment_num,
        0 payment_amount,
        0 refund_count,
        0 refund_num,
        0 refund_amount,
        0 cart_count,
        0 cart_num,
        0 favor_count,
        0 appraise_good_count,
        0 appraise_mid_count,
        0 appraise_bad_count,
        0 appraise_default_count
    from tmp_order
    union all
    select
        sku_id,
        0 order_count,
        0 order_num,
        0 order_amount,
        payment_count,
        payment_num,
        payment_amount,
        0 refund_count,
        0 refund_num,
        0 refund_amount,
        0 cart_count,
        0 cart_num,
        0 favor_count,
        0 appraise_good_count,
        0 appraise_mid_count,
        0 appraise_bad_count,
        0 appraise_default_count
    from tmp_payment
    union all
    select
        sku_id,
        0 order_count,
        0 order_num,
        0 order_amount,
        0 payment_count,
        0 payment_num,
        0 payment_amount,
        refund_count,
        refund_num,
        refund_amount,
        0 cart_count,
        0 cart_num,
        0 favor_count,
        0 appraise_good_count,
        0 appraise_mid_count,
        0 appraise_bad_count,
        0 appraise_default_count
    from tmp_refund
    union all
    select
        sku_id,
        0 order_count,
        0 order_num,
        0 order_amount,
        0 payment_count,
        0 payment_num,
        0 payment_amount,
        0 refund_count,
        0 refund_num,
        0 refund_amount,
        cart_count,
        cart_num,
        0 favor_count,
        0 appraise_good_count,
        0 appraise_mid_count,
        0 appraise_bad_count,
        0 appraise_default_count
    from tmp_cart
    union all
    select
        sku_id,
        0 order_count,
        0 order_num,
        0 order_amount,
        0 payment_count,
        0 payment_num,
        0 payment_amount,
        0 refund_count,
        0 refund_num,
        0 refund_amount,
        0 cart_count,
        0 cart_num,
        favor_count,
        0 appraise_good_count,
        0 appraise_mid_count,
        0 appraise_bad_count,
        0 appraise_default_count
    from tmp_favor
    union all
    select
        sku_id,
        0 order_count,
        0 order_num,
        0 order_amount,
        0 payment_count,
        0 payment_num,
        0 payment_amount,
        0 refund_count,
        0 refund_num,
        0 refund_amount,
        0 cart_count,
        0 cart_num,
        0 favor_count,
        appraise_good_count,
        appraise_mid_count,
        appraise_bad_count,
        appraise_default_count
    from tmp_appraise
)tmp
group by sku_id;

3.3 每日优惠券统计

建表语句

sql

drop table if exists dws_coupon_use_daycount;
create external table dws_coupon_use_daycount
(
    `coupon_id` string  COMMENT '优惠券id',
    `coupon_name` string COMMENT '优惠券名称',
    `coupon_type` string COMMENT '优惠券类型 1 现金券 2 折扣券 3 满减券 4 满件打折券',
    `condition_amount` string COMMENT '满额数',
    `condition_num` string COMMENT '满件数',
    `activity_id` string COMMENT '活动编号',
    `benefit_amount` string COMMENT '满减金额',
    `benefit_discount` string COMMENT '折扣',
    `create_time` string COMMENT '创建时间',
    `range_type` string COMMENT '范围类型 1商品 2品类 3品牌',
    `spu_id` string COMMENT '商品id',
    `tm_id` string COMMENT '品牌id',
    `category3_id` string COMMENT '品类id',
    `limit_num` string COMMENT '最多领用次数',
    `get_count` bigint COMMENT '领用次数',
    `using_count` bigint COMMENT '使用(下单)次数',
    `used_count` bigint COMMENT '使用(支付)次数'
) COMMENT '每日优惠券统计表'
PARTITIONED BY (`dt` string)
stored as parquet
location '/warehouse/gmall/dws/dws_coupon_use_daycount/';

数据装载

sql

insert overwrite table dws_coupon_use_daycount partition(dt='2020-03-10')
select
    cu.coupon_id,
    ci.coupon_name,
    ci.coupon_type,
    ci.condition_amount,
    ci.condition_num,
    ci.activity_id,
    ci.benefit_amount,
    ci.benefit_discount,
    ci.create_time,
    ci.range_type,
    ci.spu_id,
    ci.tm_id,
    ci.category3_id,
    ci.limit_num,
    cu.get_count,
    cu.using_count,
    cu.used_count
from
(
    select
        coupon_id,
        sum(if(date_format(get_time,'yyyy-MM-dd')='2020-03-10',1,0)) get_count,
        sum(if(date_format(using_time,'yyyy-MM-dd')='2020-03-10',1,0)) using_
count,
        sum(if(date_format(used_time,'yyyy-MM-dd')='2020-03-10',1,0)) used_
count
    from dwd_fact_coupon_use
    where dt='2020-03-10'
    group by coupon_id
)cu
left join
(
    select
        *
    from dwd_dim_coupon_info
    where dt='2020-03-10'
)ci on cu.coupon_id=ci.id;

3.4 每日活动统计

建表语句

sql

drop table if exists dws_activity_info_daycount;
create external table dws_activity_info_daycount(
    `id` string COMMENT '编号',
    `activity_name` string  COMMENT '活动名称',
    `activity_type` string  COMMENT '活动类型',
    `start_time` string  COMMENT '开始时间',
    `end_time` string  COMMENT '结束时间',
    `create_time` string  COMMENT '创建时间',
    `order_count` bigint COMMENT '下单次数',
    `payment_count` bigint COMMENT '支付次数'
) COMMENT '每日活动统计表'
PARTITIONED BY (`dt` string)
row format delimited fields terminated by '\t'
location '/warehouse/gmall/dws/dws_activity_info_daycount/';

数据装载

sql

insert overwrite table dws_activity_info_daycount partition(dt='2020-03-10')
select
    oi.activity_id,
    ai.activity_name,
    ai.activity_type,
    ai.start_time,
    ai.end_time,
    ai.create_time,
    oi.order_count,
    oi.payment_count
from
(
    -- dwd_fact_order_info使用create_time作为分区，可能会出现23:59分创建的订单，01:00进行支付
    -- 这笔支付数算昨天的话，要查询dt是昨天和今天
    select
        activity_id,
        sum(if(date_format(create_time,'yyyy-MM-dd')='2020-03-10',1,0)) order_count,
        sum(if(date_format(payment_time,'yyyy-MM-dd')='2020-03-10',1,0)) payment_count
    from dwd_fact_order_info
    where (dt='2020-03-10' or dt=date_add('2020-03-10',-1))
    and activity_id is not null
    group by activity_id
)oi
join
(
    select
        *
    from dwd_dim_activity_info
    where dt='2020-03-10'
)ai
on oi.activity_id=ai.id;

3.5 每日购买行为

建表脚本

sql

drop table if exists dws_sale_detail_daycount;
create external table dws_sale_detail_daycount
(
    user_id string comment '用户 id',
    sku_id string comment '商品 id',
    user_gender string comment '用户性别',
    user_age string comment '用户年龄',
    user_level string comment '用户等级',
    order_price decimal(10,2) comment '商品价格',
    sku_name string comment '商品名称',
    sku_tm_id string comment '品牌 id',
    sku_category3_id string comment '商品三级品类 id',
    sku_category2_id string comment '商品二级品类 id',
    sku_category1_id string comment '商品一级品类 id',
    sku_category3_name string comment '商品三级品类名称',
    sku_category2_name string comment '商品二级品类名称',
    sku_category1_name string comment '商品一级品类名称',
    spu_id string comment '商品 spu',
    sku_num int comment '购买个数',
    order_count bigint comment '当日下单单数',
    order_amount decimal(16,2) comment '当日下单金额'
) COMMENT '每日购买行为'
PARTITIONED BY (`dt` string)
stored as parquet
location '/warehouse/gmall/dws/dws_sale_detail_daycount/'
tblproperties ("parquet.compression"="lzo");

数据装载

sql

insert overwrite table dws_sale_detail_daycount partition(dt='2020-03-10')
select
		op.user_id,
		op.sku_id,
		ui.gender,
		months_between('2020-03-10', ui.birthday)/12 age,
		ui.user_level,
		si.price,
		si.sku_name,
		si.tm_id,
		si.category3_id,
		si.category2_id,
		si.category1_id,
		si.category3_name,
		si.category2_name,
		si.category1_name,
		si.spu_id,
		op.sku_num,
		op.order_count,
		op.order_amount
from
(
select
		user_id,
		sku_id,
		sum(sku_num) sku_num,
		count(*) order_count,
		sum(total_amount) order_amount
		from dwd_fact_order_detail
		where dt='2020-03-10'
group by user_id, sku_id
)op
join
(
		select
		*
		from dwd_dim_user_info_his
		where end_date='2099-12-31'
)ui on op.user_id = ui.id
join
(
		select
		*
		from dwd_dim_sku_info
		where dt='2020-03-10'
)si on op.sku_id = si.id;

4. DWS层数据导入脚本

#!/bin/bash

APP=gmall
hive=/opt/module/hive/bin/hive

# 如果输入了日期参数，则取输入参数作为日期值；
# 如果没有输入日期参数，则取当前时间的前一天作为日期值
if [ -n "$1" ] ;then
    do_date=$1
else
    do_date=`date -d "-1 day" +%F`
fi

sql="
insert overwrite table ${APP}.dws_uv_detail_daycount partition(dt='$do_date')
select
    mid_id,
    concat_ws('|', collect_set(user_id)) user_id,
    concat_ws('|', collect_set(version_code)) version_code,
    concat_ws('|', collect_set(version_name)) version_name,
    concat_ws('|', collect_set(lang))lang,
    concat_ws('|', collect_set(source)) source,
    concat_ws('|', collect_set(os)) os,
    concat_ws('|', collect_set(area)) area,
    concat_ws('|', collect_set(model)) model,
    concat_ws('|', collect_set(brand)) brand,
    concat_ws('|', collect_set(sdk_version)) sdk_version,
    concat_ws('|', collect_set(gmail)) gmail,
    concat_ws('|', collect_set(height_width)) height_width,
    concat_ws('|', collect_set(app_time)) app_time,
    concat_ws('|', collect_set(network)) network,
    concat_ws('|', collect_set(lng)) lng,
    concat_ws('|', collect_set(lat)) lat,
    count(*) login_count
from ${APP}.dwd_start_log
where dt='$do_date'
group by mid_id;


with
tmp_login as
(
    select
        user_id,
        count(*) login_count
    from ${APP}.dwd_start_log
    where dt='$do_date'
    and user_id is not null
    group by user_id
),
tmp_cart as
(
    select
        user_id,
        count(*) cart_count,
        sum(cart_price*sku_num) cart_amount
    from ${APP}.dwd_fact_cart_info
    where dt='$do_date'
    and user_id is not null
    and date_format(create_time,'yyyy-MM-dd')='$do_date'
    group by user_id
),
tmp_order as
(
    select
        user_id,
        count(*) order_count,
        sum(final_total_amount) order_amount
    from ${APP}.dwd_fact_order_info
    where dt='$do_date'
    group by user_id
) ,
tmp_payment as
(
    select
        user_id,
        count(*) payment_count,
        sum(payment_amount) payment_amount
    from ${APP}.dwd_fact_payment_info
    where dt='$do_date'
    group by user_id
),
tmp_order_detail as
(
    select
        user_id,
        collect_set(named_struct('sku_id',sku_id,'sku_num',sku_num,'order_count',
order_count,'order_amount',order_amount)) order_stats
    from
    (
        select
            user_id,
            sku_id,
            sum(sku_num) sku_num,
            count(*) order_count,
            cast(sum(total_amount) as decimal(20,2)) order_amount
        from ${APP}.dwd_fact_order_detail
        where dt='$do_date'
        group by user_id,sku_id
    )tmp
    group by user_id
)

insert overwrite table ${APP}.dws_user_action_daycount partition(dt='$do_date')
select
    coalesce(tmp_login.user_id,tmp_cart.user_id,tmp_order.user_id,tmp_payment.
user_id,tmp_order_detail.user_id),
    login_count,
    nvl(cart_count,0),
    nvl(cart_amount,0),
    nvl(order_count,0),
    nvl(order_amount,0),
    nvl(payment_count,0),
    nvl(payment_amount,0),
    order_stats
from tmp_login
full outer join tmp_cart on tmp_login.user_id=tmp_cart.user_id
full outer join tmp_order on tmp_login.user_id=tmp_order.user_id
full outer join tmp_payment on tmp_login.user_id=tmp_payment.user_id
full outer join tmp_order_detail on tmp_login.user_id=tmp_order_detail.user_id;

with
tmp_order as
(
    select
        sku_id,
        count(*) order_count,
        sum(sku_num) order_num,
        sum(total_amount) order_amount
    from ${APP}.dwd_fact_order_detail
    where dt='$do_date'
    group by sku_id
),
tmp_payment as
(
    select
        sku_id,
        count(*) payment_count,
        sum(sku_num) payment_num,
        sum(total_amount) payment_amount
    from ${APP}.dwd_fact_order_detail
    where dt='$do_date'
    and order_id in
    (
        select
            id
        from ${APP}.dwd_fact_order_info
        where (dt='$do_date' or dt=date_add('$do_date',-1))
        and date_format(payment_time,'yyyy-MM-dd')='$do_date'
    )
    group by sku_id
),
tmp_refund as
(
    select
        sku_id,
        count(*) refund_count,
        sum(refund_num) refund_num,
        sum(refund_amount) refund_amount
    from ${APP}.dwd_fact_order_refund_info
    where dt='$do_date'
    group by sku_id
),
tmp_cart as
(
    select
        sku_id,
        count(*) cart_count,
        sum(sku_num) cart_num
    from ${APP}.dwd_fact_cart_info
    where dt='$do_date'
    and date_format(create_time,'yyyy-MM-dd')='$do_date'
    group by sku_id
),
tmp_favor as
(
    select
        sku_id,
        count(*) favor_count
    from ${APP}.dwd_fact_favor_info
    where dt='$do_date'
    and date_format(create_time,'yyyy-MM-dd')='$do_date'
    group by sku_id
),
tmp_appraise as
(
    select
        sku_id,
        sum(if(appraise='1201',1,0)) appraise_good_count,
        sum(if(appraise='1202',1,0)) appraise_mid_count,
        sum(if(appraise='1203',1,0)) appraise_bad_count,
        sum(if(appraise='1204',1,0)) appraise_default_count
    from ${APP}.dwd_fact_comment_info
    where dt='$do_date'
    group by sku_id
)

insert overwrite table ${APP}.dws_sku_action_daycount partition(dt='$do_date')
select
    sku_id,
    sum(order_count),
    sum(order_num),
    sum(order_amount),
    sum(payment_count),
    sum(payment_num),
    sum(payment_amount),
    sum(refund_count),
    sum(refund_num),
    sum(refund_amount),
    sum(cart_count),
    sum(cart_num),
    sum(favor_count),
    sum(appraise_good_count),
    sum(appraise_mid_count),
    sum(appraise_bad_count),
    sum(appraise_default_count)
from
(
    select
        sku_id,
        order_count,
        order_num,
        order_amount,
        0 payment_count,
        0 payment_num,
        0 payment_amount,
        0 refund_count,
        0 refund_num,
        0 refund_amount,
        0 cart_count,
        0 cart_num,
        0 favor_count,
        0 appraise_good_count,
        0 appraise_mid_count,
        0 appraise_bad_count,
        0 appraise_default_count
    from tmp_order
    union all
    select
        sku_id,
        0 order_count,
        0 order_num,
        0 order_amount,
        payment_count,
        payment_num,
        payment_amount,
        0 refund_count,
        0 refund_num,
        0 refund_amount,
        0 cart_count,
        0 cart_num,
        0 favor_count,
        0 appraise_good_count,
        0 appraise_mid_count,
        0 appraise_bad_count,
        0 appraise_default_count
    from tmp_payment
    union all
    select
        sku_id,
        0 order_count,
        0 order_num,
        0 order_amount,
        0 payment_count,
        0 payment_num,
        0 payment_amount,
        refund_count,
        refund_num,
        refund_amount,
        0 cart_count,
        0 cart_num,
        0 favor_count,
        0 appraise_good_count,
        0 appraise_mid_count,
        0 appraise_bad_count,
        0 appraise_default_count
    from tmp_refund
    union all
    select
        sku_id,
        0 order_count,
        0 order_num,
        0 order_amount,
        0 payment_count,
        0 payment_num,
        0 payment_amount,
        0 refund_count,
        0 refund_num,
        0 refund_amount,
        cart_count,
        cart_num,
        0 favor_count,
        0 appraise_good_count,
        0 appraise_mid_count,
        0 appraise_bad_count,
        0 appraise_default_count
    from tmp_cart
    union all
    select
        sku_id,
        0 order_count,
        0 order_num,
        0 order_amount,
        0 payment_count,
        0 payment_num,
        0 payment_amount,
        0 refund_count,
        0 refund_num,
        0 refund_amount,
        0 cart_count,
        0 cart_num,
        favor_count,
        0 appraise_good_count,
        0 appraise_mid_count,
        0 appraise_bad_count,
        0 appraise_default_count
    from tmp_favor
    union all
    select
        sku_id,
        0 order_count,
        0 order_num,
        0 order_amount,
        0 payment_count,
        0 payment_num,
        0 payment_amount,
        0 refund_count,
        0 refund_num,
        0 refund_amount,
        0 cart_count,
        0 cart_num,
        0 favor_count,
        appraise_good_count,
        appraise_mid_count,
        appraise_bad_count,
        appraise_default_count
    from tmp_appraise
)tmp
group by sku_id;


insert overwrite table ${APP}.dws_coupon_use_daycount partition(dt='$do_date')
select
    cu.coupon_id,
    ci.coupon_name,
    ci.coupon_type,
    ci.condition_amount,
    ci.condition_num,
    ci.activity_id,
    ci.benefit_amount,
    ci.benefit_discount,
    ci.create_time,
    ci.range_type,
    ci.spu_id,
    ci.tm_id,
    ci.category3_id,
    ci.limit_num,
    cu.get_count,
    cu.using_count,
    cu.used_count
from
(
    select
        coupon_id,
        sum(if(date_format(get_time,'yyyy-MM-dd')='$do_date',1,0)) get_count,
        sum(if(date_format(using_time,'yyyy-MM-dd')='$do_date',1,0)) using_count,
        sum(if(date_format(used_time,'yyyy-MM-dd')='$do_date',1,0)) used_count
    from ${APP}.dwd_fact_coupon_use
    where dt='$do_date'
    group by coupon_id
)cu
left join
(
    select
        *
    from ${APP}.dwd_dim_coupon_info
    where dt='$do_date'
)ci on cu.coupon_id=ci.id;

insert overwrite table ${APP}.dws_activity_info_daycount partition(dt='$do_date')
select
    oi.activity_id,
    ai.activity_name,
    ai.activity_type,
    ai.start_time,
    ai.end_time,
    ai.create_time,
    oi.order_count,
    oi.payment_count
from
(
    select
        activity_id,
        sum(if(date_format(create_time,'yyyy-MM-dd')='$do_date',1,0)) order_count,
        sum(if(date_format(payment_time,'yyyy-MM-dd')='$do_date',1,0)) payment_count
    from ${APP}.dwd_fact_order_info
    where (dt='$do_date' or dt=date_add('$do_date',-1))
    and activity_id is not null
    group by activity_id
)oi
join
(
    select
        *
    from ${APP}.dwd_dim_activity_info
    where dt='$do_date'
)ai
on oi.activity_id=ai.id;
"
$hive -e "$sql"

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
408
409
410

5. DWT层

5.1 设备主题宽表

涉及累计型宽表需要整理出old、new,用full outer join。涉及首次XXX取old中的，涉及末次XXX取new中的，当日取new的，累计XXX取old+new。

建表语句

sql

drop table if exists dwt_uv_topic;
create external table dwt_uv_topic
(
    `mid_id` string COMMENT '设备唯一标识',
    `user_id` string COMMENT '用户标识',
    `version_code` string COMMENT '程序版本号',
    `version_name` string COMMENT '程序版本名',
    `lang` string COMMENT '系统语言',
    `source` string COMMENT '渠道号',
    `os` string COMMENT 'Android版本',
    `area` string COMMENT '区域',
    `model` string COMMENT '手机型号',
    `brand` string COMMENT '手机品牌',
    `sdk_version` string COMMENT 'sdkVersion',
    `gmail` string COMMENT 'gmail',
    `height_width` string COMMENT '屏幕宽高',
    `app_time` string COMMENT '客户端日志产生时的时间',
    `network` string COMMENT '网络模式',
    `lng` string COMMENT '经度',
    `lat` string COMMENT '纬度',
    `login_date_first` string  comment '首次活跃时间',
    `login_date_last` string  comment '末次活跃时间',
    `login_day_count` bigint comment '当日活跃次数',
    `login_count` bigint comment '累计活跃天数'
) COMMENT'设备主题宽表'
stored as parquet
location '/warehouse/gmall/dwt/dwt_uv_topic';

数据装载

sql

insert overwrite table dwt_uv_topic
select
    nvl(new.mid_id,old.mid_id),
    nvl(new.user_id,old.user_id),
    nvl(new.version_code,old.version_code),
    nvl(new.version_name,old.version_name),
    nvl(new.lang,old.lang),
    nvl(new.source,old.source),
    nvl(new.os,old.os),
    nvl(new.area,old.area),
    nvl(new.model,old.model),
    nvl(new.brand,old.brand),
    nvl(new.sdk_version,old.sdk_version),
    nvl(new.gmail,old.gmail),
    nvl(new.height_width,old.height_width),
    nvl(new.app_time,old.app_time),
    nvl(new.network,old.network),
    nvl(new.lng,old.lng),
    nvl(new.lat,old.lat),
    if(old.mid_id is null,'2020-03-10',old.login_date_first),
    if(new.mid_id is not null,'2020-03-10',old.login_date_last),
    if(new.mid_id is not null, new.login_count,0),
    nvl(old.login_count,0)+if(new.login_count>0,1,0)
from
(
    select
        *
    from dwt_uv_topic
)old
full outer join
(
    select
        *
    from dws_uv_detail_daycount
    where dt='2020-03-10'
)new
on old.mid_id=new.mid_id;

5.2 会员主题宽表

宽表字段怎么来？维度关联的事实表度量值+开头、结尾+累积+累积一个时间段。

建表脚本

sql

drop table if exists dwt_user_topic;
create external table dwt_user_topic
(
    user_id string  comment '用户id',
    login_date_first string  comment '首次登录时间',
    login_date_last string  comment '末次登录时间',
    login_count bigint comment '累计登录天数',
    login_last_30d_count bigint comment '最近30日登录天数',
    order_date_first string  comment '首次下单时间',
    order_date_last string  comment '末次下单时间',
    order_count bigint comment '累计下单次数',
    order_amount decimal(16,2) comment '累计下单金额',
    order_last_30d_count bigint comment '最近30日下单次数',
    order_last_30d_amount bigint comment '最近30日下单金额',
    payment_date_first string  comment '首次支付时间',
    payment_date_last string  comment '末次支付时间',
    payment_count decimal(16,2) comment '累计支付次数',
    payment_amount decimal(16,2) comment '累计支付金额',
    payment_last_30d_count decimal(16,2) comment '最近30日支付次数',
    payment_last_30d_amount decimal(16,2) comment '最近30日支付金额'
 )COMMENT '会员主题宽表'
stored as parquet
location '/warehouse/gmall/dwt/dwt_user_topic/';

数据加载

sql

insert overwrite table dwt_user_topic
select
    nvl(new.user_id,old.user_id),
    if(old.login_date_first is null and new.login_count>0,'2020-03-10',old.
login_date_first),
    if(new.login_count>0,'2020-03-10',old.login_date_last),
    nvl(old.login_count,0)+if(new.login_count>0,1,0),
    nvl(new.login_last_30d_count,0),
    if(old.order_date_first is null and new.order_count>0,'2020-03-10',old.
order_date_first),
    if(new.order_count>0,'2020-03-10',old.order_date_last),
    nvl(old.order_count,0)+nvl(new.order_count,0),
    nvl(old.order_amount,0)+nvl(new.order_amount,0),
    nvl(new.order_last_30d_count,0),
    nvl(new.order_last_30d_amount,0),
    if(old.payment_date_first is null and new.payment_count>0,'2020-03-10',old.
payment_date_first),
    if(new.payment_count>0,'2020-03-10',old.payment_date_last),
    nvl(old.payment_count,0)+nvl(new.payment_count,0),
    nvl(old.payment_amount,0)+nvl(new.payment_amount,0),
    nvl(new.payment_last_30d_count,0),
    nvl(new.payment_last_30d_amount,0)
from
dwt_user_topic old
full outer join
(
    select
        user_id,
        sum(if(dt='2020-03-10',login_count,0)) login_count,
        sum(if(dt='2020-03-10',order_count,0)) order_count,
        sum(if(dt='2020-03-10',order_amount,0)) order_amount,
        sum(if(dt='2020-03-10',payment_count,0)) payment_count,
        sum(if(dt='2020-03-10',payment_amount,0)) payment_amount,
        sum(if(login_count>0,1,0)) login_last_30d_count,
        sum(order_count) order_last_30d_count,
        sum(order_amount) order_last_30d_amount,
        sum(payment_count) payment_last_30d_count,
        sum(payment_amount) payment_last_30d_amount
    from dws_user_action_daycount
    where dt>=date_add( '2020-03-10',-30)
    group by user_id
)new
on old.user_id=new.user_id;

5.3 商品主题宽表

建表语句

sql

drop table if exists dwt_sku_topic;
create external table dwt_sku_topic
(
    sku_id string comment 'sku_id',
    spu_id string comment 'spu_id',
    order_last_30d_count bigint comment '最近30日被下单次数',
    order_last_30d_num bigint comment '最近30日被下单件数',
    order_last_30d_amount decimal(16,2)  comment '最近30日被下单金额',
    order_count bigint comment '累计被下单次数',
    order_num bigint comment '累计被下单件数',
    order_amount decimal(16,2) comment '累计被下单金额',
    payment_last_30d_count   bigint  comment '最近30日被支付次数',
    payment_last_30d_num bigint comment '最近30日被支付件数',
    payment_last_30d_amount  decimal(16,2) comment '最近30日被支付金额',
    payment_count   bigint  comment '累计被支付次数',
    payment_num bigint comment '累计被支付件数',
    payment_amount  decimal(16,2) comment '累计被支付金额',
    refund_last_30d_count bigint comment '最近30日退款次数',
    refund_last_30d_num bigint comment '最近30日退款件数',
    refund_last_30d_amount decimal(10,2) comment '最近30日退款金额',
    refund_count bigint comment '累计退款次数',
    refund_num bigint comment '累计退款件数',
    refund_amount decimal(10,2) comment '累计退款金额',
    cart_last_30d_count bigint comment '最近30日被加入购物车次数',
    cart_last_30d_num bigint comment '最近30日被加入购物车件数',
    cart_count bigint comment '累计被加入购物车次数',
    cart_num bigint comment '累计被加入购物车件数',
    favor_last_30d_count bigint comment '最近30日被收藏次数',
    favor_count bigint comment '累计被收藏次数',
    appraise_last_30d_good_count bigint comment '最近30日好评数',
    appraise_last_30d_mid_count bigint comment '最近30日中评数',
    appraise_last_30d_bad_count bigint comment '最近30日差评数',
    appraise_last_30d_default_count bigint comment '最近30日默认评价数',
    appraise_good_count bigint comment '累计好评数',
    appraise_mid_count bigint comment '累计中评数',
    appraise_bad_count bigint comment '累计差评数',
    appraise_default_count bigint comment '累计默认评价数'
 )COMMENT '商品主题宽表'
stored as parquet
location '/warehouse/gmall/dwt/dwt_sku_topic/';

数据装载

sql

insert overwrite table dwt_sku_topic
select
    nvl(new.sku_id,old.sku_id),
    sku_info.spu_id,
    nvl(new.order_count30,0),
    nvl(new.order_num30,0),
    nvl(new.order_amount30,0),
    nvl(old.order_count,0) + nvl(new.order_count,0),
    nvl(old.order_num,0) + nvl(new.order_num,0),
    nvl(old.order_amount,0) + nvl(new.order_amount,0),
    nvl(new.payment_count30,0),
    nvl(new.payment_num30,0),
    nvl(new.payment_amount30,0),
    nvl(old.payment_count,0) + nvl(new.payment_count,0),
    nvl(old.payment_num,0) + nvl(new.payment_count,0),
    nvl(old.payment_amount,0) + nvl(new.payment_count,0),
    nvl(new.refund_count30,0),
    nvl(new.refund_num30,0),
    nvl(new.refund_amount30,0),
    nvl(old.refund_count,0) + nvl(new.refund_count,0),
    nvl(old.refund_num,0) + nvl(new.refund_num,0),
    nvl(old.refund_amount,0) + nvl(new.refund_amount,0),
    nvl(new.cart_count30,0),
    nvl(new.cart_num30,0),
    nvl(old.cart_count,0) + nvl(new.cart_count,0),
    nvl(old.cart_num,0) + nvl(new.cart_num,0),
    nvl(new.favor_count30,0),
    nvl(old.favor_count,0) + nvl(new.favor_count,0),
    nvl(new.appraise_good_count30,0),
    nvl(new.appraise_mid_count30,0),
    nvl(new.appraise_bad_count30,0),
    nvl(new.appraise_default_count30,0)  ,
    nvl(old.appraise_good_count,0) + nvl(new.appraise_good_count,0),
    nvl(old.appraise_mid_count,0) + nvl(new.appraise_mid_count,0),
    nvl(old.appraise_bad_count,0) + nvl(new.appraise_bad_count,0),
    nvl(old.appraise_default_count,0) + nvl(new.appraise_default_count,0)
from
(
    select
        sku_id,
        spu_id,
        order_last_30d_count,
        order_last_30d_num,
        order_last_30d_amount,
        order_count,
        order_num,
        order_amount  ,
        payment_last_30d_count,
        payment_last_30d_num,
        payment_last_30d_amount,
        payment_count,
        payment_num,
        payment_amount,
        refund_last_30d_count,
        refund_last_30d_num,
        refund_last_30d_amount,
        refund_count,
        refund_num,
        refund_amount,
        cart_last_30d_count,
        cart_last_30d_num,
        cart_count,
        cart_num,
        favor_last_30d_count,
        favor_count,
        appraise_last_30d_good_count,
        appraise_last_30d_mid_count,
        appraise_last_30d_bad_count,
        appraise_last_30d_default_count,
        appraise_good_count,
        appraise_mid_count,
        appraise_bad_count,
        appraise_default_count
    from dwt_sku_topic
)old
full outer join
(
    select
        sku_id,
        sum(if(dt='2020-03-10', order_count,0 )) order_count,
        sum(if(dt='2020-03-10',order_num ,0 ))  order_num,
        sum(if(dt='2020-03-10',order_amount,0 )) order_amount ,
        sum(if(dt='2020-03-10',payment_count,0 )) payment_count,
        sum(if(dt='2020-03-10',payment_num,0 )) payment_num,
        sum(if(dt='2020-03-10',payment_amount,0 )) payment_amount,
        sum(if(dt='2020-03-10',refund_count,0 )) refund_count,
        sum(if(dt='2020-03-10',refund_num,0 )) refund_num,
        sum(if(dt='2020-03-10',refund_amount,0 )) refund_amount,
        sum(if(dt='2020-03-10',cart_count,0 )) cart_count,
        sum(if(dt='2020-03-10',cart_num,0 )) cart_num,
        sum(if(dt='2020-03-10',favor_count,0 )) favor_count,
        sum(if(dt='2020-03-10',appraise_good_count,0 )) appraise_good_count,
        sum(if(dt='2020-03-10',appraise_mid_count,0 ) ) appraise_mid_count ,
        sum(if(dt='2020-03-10',appraise_bad_count,0 )) appraise_bad_count,
        sum(if(dt='2020-03-10',appraise_default_count,0 )) appraise_default_
count,
        sum(order_count) order_count30 ,
        sum(order_num) order_num30,
        sum(order_amount) order_amount30,
        sum(payment_count) payment_count30,
        sum(payment_num) payment_num30,
        sum(payment_amount) payment_amount30,
        sum(refund_count) refund_count30,
        sum(refund_num) refund_num30,
        sum(refund_amount) refund_amount30,
        sum(cart_count) cart_count30,
        sum(cart_num) cart_num30,
        sum(favor_count) favor_count30,
        sum(appraise_good_count) appraise_good_count30,
        sum(appraise_mid_count) appraise_mid_count30,
        sum(appraise_bad_count) appraise_bad_count30,
        sum(appraise_default_count) appraise_default_count30
    from dws_sku_action_daycount
    where dt >= date_add ('2020-03-10', -30)
    group by sku_id
)new
on new.sku_id = old.sku_id
left join
(select * from dwd_dim_sku_info where dt='2020-03-10') sku_info
on nvl(new.sku_id,old.sku_id)= sku_info.id;

5.4 优惠券主题宽表

建表语句

sql

drop table if exists dwt_coupon_topic;
create external table dwt_coupon_topic
(
    `coupon_id` string  COMMENT '优惠券id',
    `get_day_count` bigint COMMENT '当日领用次数',
    `using_day_count` bigint COMMENT '当日使用(下单)次数',
    `used_day_count` bigint COMMENT '当日使用(支付)次数',
    `get_count` bigint COMMENT '累积计用次数',
    `using_count` bigint COMMENT '累计使用(下单)次数',
    `used_count` bigint COMMENT '累计使用(支付)次数'
)COMMENT '优惠券主题宽表'
stored as parquet
location '/warehouse/gmall/dwt/dwt_coupon_topic/';

数据装载

sql

insert overwrite table dwt_coupon_topic
select
    nvl(new.coupon_id,old.coupon_id),
    nvl(new.get_count,0),
    nvl(new.using_count,0),
    nvl(new.used_count,0),
    nvl(old.get_count,0)+nvl(new.get_count,0),
    nvl(old.using_count,0)+nvl(new.using_count,0),
    nvl(old.used_count,0)+nvl(new.used_count,0)
from
(
    select
        *
    from dwt_coupon_topic
)old
full outer join
(
    select
        coupon_id,
        get_count,
        using_count,
        used_count
    from dws_coupon_use_daycount
    where dt='2020-03-10'
)new
on old.coupon_id=new.coupon_id;

5.5 活动主题宽表

建表语句

sql

drop table if exists dwt_activity_topic;
create external table dwt_activity_topic(
    `id` string COMMENT '活动id',
    `activity_name` string  COMMENT '活动名称',
    `order_day_count` bigint COMMENT '当日下单次数',
    `payment_day_count` bigint COMMENT '当日支付次数',
    `order_count` bigint COMMENT '累计下单次数',
    `payment_count` bigint COMMENT '累计支付次数'
) COMMENT '活动主题宽表'
stored as parquet
location '/warehouse/gmall/dwt/dwt_activity_topic/';

数据装载

sql

insert overwrite table dwt_activity_topic
select
    nvl(new.id,old.id),
    nvl(new.activity_name,old.activity_name),
    nvl(new.order_count,0),
    nvl(new.payment_count,0),
    nvl(old.order_count,0)+nvl(new.order_count,0),
    nvl(old.payment_count,0)+nvl(new.payment_count,0)
from
(
    select
        *
    from dwt_activity_topic
)old
full outer join
(
    select
        id,
        activity_name,
        order_count,
        payment_count
    from dws_activity_info_daycount
    where dt='2020-03-10'
)new
on old.id=new.id;

6. DWT层数据导入脚本

#!/bin/bash

APP=gmall
hive=/opt/module/hive/bin/hive

# 如果输入了日期参数，则取输入参数作为日期值；如果没有输入日期参数，则取当前时间的前一天作为日期值
if [ -n "$1" ] ;then
    do_date=$1
else
    do_date=`date -d "-1 day" +%F`
fi

sql="
insert overwrite table ${APP}.dwt_uv_topic
select
    nvl(new.mid_id,old.mid_id),
    nvl(new.user_id,old.user_id),
    nvl(new.version_code,old.version_code),
    nvl(new.version_name,old.version_name),
    nvl(new.lang,old.lang),
    nvl(new.source,old.source),
    nvl(new.os,old.os),
    nvl(new.area,old.area),
    nvl(new.model,old.model),
    nvl(new.brand,old.brand),
    nvl(new.sdk_version,old.sdk_version),
    nvl(new.gmail,old.gmail),
    nvl(new.height_width,old.height_width),
    nvl(new.app_time,old.app_time),
    nvl(new.network,old.network),
    nvl(new.lng,old.lng),
    nvl(new.lat,old.lat),
    nvl(old.login_date_first,'$do_date'),
    if(new.login_count>0,'$do_date',old.login_date_last),
    nvl(new.login_count,0),
    nvl(new.login_count,0)+nvl(old.login_count,0)
from
(
    select
        *
    from ${APP}.dwt_uv_topic
)old
full outer join
(
    select
        *
    from ${APP}.dws_uv_detail_daycount
    where dt='$do_date'
)new
on old.mid_id=new.mid_id;

insert overwrite table ${APP}.dwt_user_topic
select
    nvl(new.user_id,old.user_id),
    if(old.login_date_first is null and new.login_count>0,'$do_date',old.login_
date_first),
    if(new.login_count>0,'$do_date',old.login_date_last),
    nvl(old.login_count,0)+if(new.login_count>0,1,0),
    nvl(new.login_last_30d_count,0),
    if(old.order_date_first is null and new.order_count>0,'$do_date',old.order_
date_first),
    if(new.order_count>0,'$do_date',old.order_date_last),
    nvl(old.order_count,0)+nvl(new.order_count,0),
    nvl(old.order_amount,0)+nvl(new.order_amount,0),
    nvl(new.order_last_30d_count,0),
    nvl(new.order_last_30d_amount,0),
    if(old.payment_date_first is null and new.payment_count>0,'$do_date',old.
payment_date_first),
    if(new.payment_count>0,'$do_date',old.payment_date_last),
    nvl(old.payment_count,0)+nvl(new.payment_count,0),
    nvl(old.payment_amount,0)+nvl(new.payment_amount,0),
    nvl(new.payment_last_30d_count,0),
    nvl(new.payment_last_30d_amount,0)
from
(
    select
        *
    from ${APP}.dwt_user_topic
)old
full outer join
(
    select
        user_id,
        sum(if(dt='$do_date',login_count,0)) login_count,
        sum(if(dt='$do_date',order_count,0)) order_count,
        sum(if(dt='$do_date',order_amount,0)) order_amount,
        sum(if(dt='$do_date',payment_count,0)) payment_count,
        sum(if(dt='$do_date',payment_amount,0)) payment_amount,
        sum(if(order_count>0,1,0)) login_last_30d_count,
        sum(order_count) order_last_30d_count,
        sum(order_amount) order_last_30d_amount,
        sum(payment_count) payment_last_30d_count,
        sum(payment_amount) payment_last_30d_amount
    from ${APP}.dws_user_action_daycount
    where dt>=date_add( '$do_date',-30)
    group by user_id
)new
on old.user_id=new.user_id;

with
sku_act as
(
select
    sku_id,
    sum(if(dt='$do_date', order_count,0 )) order_count,
    sum(if(dt='$do_date',order_num ,0 ))  order_num,
    sum(if(dt='$do_date',order_amount,0 )) order_amount ,
    sum(if(dt='$do_date',payment_count,0 )) payment_count,
    sum(if(dt='$do_date',payment_num,0 )) payment_num,
    sum(if(dt='$do_date',payment_amount,0 )) payment_amount,
    sum(if(dt='$do_date',refund_count,0 )) refund_count,
    sum(if(dt='$do_date',refund_num,0 )) refund_num,
    sum(if(dt='$do_date',refund_amount,0 )) refund_amount,
    sum(if(dt='$do_date',cart_count,0 )) cart_count,
    sum(if(dt='$do_date',cart_num,0 )) cart_num,
    sum(if(dt='$do_date',favor_count,0 )) favor_count,
    sum(if(dt='$do_date',appraise_good_count,0 )) appraise_good_count,
    sum(if(dt='$do_date',appraise_mid_count,0 ) ) appraise_mid_count ,
    sum(if(dt='$do_date',appraise_bad_count,0 )) appraise_bad_count,
    sum(if(dt='$do_date',appraise_default_count,0 )) appraise_default_count,
    sum( order_count  ) order_count30 ,
    sum( order_num  )  order_num30,
    sum(order_amount ) order_amount30,
    sum(payment_count ) payment_count30,
    sum(payment_num ) payment_num30,
    sum(payment_amount ) payment_amount30,
    sum(refund_count  ) refund_count30,
    sum(refund_num ) refund_num30,
    sum(refund_amount ) refund_amount30,
    sum(cart_count  ) cart_count30,
    sum(cart_num ) cart_num30,
    sum(favor_count ) favor_count30,
    sum(appraise_good_count ) appraise_good_count30,
    sum(appraise_mid_count  ) appraise_mid_count30,
    sum(appraise_bad_count ) appraise_bad_count30,
    sum(appraise_default_count )  appraise_default_count30
from ${APP}.dws_sku_action_daycount
where dt>=date_add ( '$do_date',-30)
group by sku_id
),
sku_topic
as
(
select
    sku_id,
    spu_id,
    order_last_30d_count,
    order_last_30d_num,
    order_last_30d_amount,
    order_count,
    order_num,
    order_amount  ,
    payment_last_30d_count,
    payment_last_30d_num,
    payment_last_30d_amount,
    payment_count,
    payment_num,
    payment_amount,
    refund_last_30d_count,
    refund_last_30d_num,
    refund_last_30d_amount ,
    refund_count  ,
    refund_num ,
    refund_amount  ,
    cart_last_30d_count  ,
    cart_last_30d_num  ,
    cart_count  ,
    cart_num  ,
    favor_last_30d_count  ,
    favor_count  ,
    appraise_last_30d_good_count  ,
    appraise_last_30d_mid_count  ,
    appraise_last_30d_bad_count  ,
    appraise_last_30d_default_count  ,
    appraise_good_count  ,
    appraise_mid_count  ,
    appraise_bad_count  ,
    appraise_default_count
from ${APP}.dwt_sku_topic
)
insert overwrite table ${APP}.dwt_sku_topic
select
    nvl(sku_act.sku_id,sku_topic.sku_id) ,
    sku_info.spu_id,
    nvl (sku_act.order_count30,0)      ,
    nvl (sku_act.order_num30,0)   ,
    nvl (sku_act.order_amount30,0)   ,
    nvl(sku_topic.order_count,0)+ nvl (sku_act.order_count,0) ,
    nvl(sku_topic.order_num,0)+ nvl (sku_act.order_num,0)   ,
    nvl(sku_topic.order_amount,0)+ nvl (sku_act.order_amount,0),
    nvl (sku_act.payment_count30,0),
    nvl (sku_act.payment_num30,0),
    nvl (sku_act.payment_amount30,0),
    nvl(sku_topic.payment_count,0)+ nvl (sku_act.payment_count,0) ,
    nvl(sku_topic.payment_num,0)+ nvl (sku_act.payment_count,0)  ,
    nvl(sku_topic.payment_amount,0)+ nvl (sku_act.payment_count,0)  ,
    nvl (refund_count30,0),
    nvl (sku_act.refund_num30,0),
    nvl (sku_act.refund_amount30,0),
    nvl(sku_topic.refund_count,0)+ nvl (sku_act.refund_count,0),
    nvl(sku_topic.refund_num,0)+ nvl (sku_act.refund_num,0),
    nvl(sku_topic.refund_amount,0)+ nvl (sku_act.refund_amount,0),
    nvl(sku_act.cart_count30,0)  ,
    nvl(sku_act.cart_num30,0)  ,
    nvl(sku_topic.cart_count  ,0)+ nvl (sku_act.cart_count,0),
    nvl( sku_topic.cart_num  ,0)+ nvl (sku_act.cart_num,0),
    nvl(sku_act.favor_count30 ,0)  ,
    nvl (sku_topic.favor_count  ,0)+ nvl (sku_act.favor_count,0),
    nvl (sku_act.appraise_good_count30 ,0)  ,
    nvl (sku_act.appraise_mid_count30 ,0)  ,
    nvl (sku_act.appraise_bad_count30 ,0)  ,
    nvl (sku_act.appraise_default_count30 ,0)  ,
    nvl (sku_topic.appraise_good_count  ,0)+ nvl (sku_act.appraise_good_count,0)  ,
    nvl (sku_topic.appraise_mid_count   ,0)+ nvl (sku_act.appraise_mid_count,0) ,
    nvl (sku_topic.appraise_bad_count  ,0)+ nvl (sku_act.appraise_bad_count,0)  ,
    nvl (sku_topic.appraise_default_count  ,0)+ nvl (sku_act.appraise_default_
count,0)
from sku_act
full outer join sku_topic
on sku_act.sku_id =sku_topic.sku_id
left join
(select * from ${APP}.dwd_dim_sku_info where dt='$do_date') sku_info
on nvl(sku_topic.sku_id,sku_act.sku_id)= sku_info.id;

insert overwrite table ${APP}.dwt_coupon_topic
select
    nvl(new.coupon_id,old.coupon_id),
    nvl(new.get_count,0),
    nvl(new.using_count,0),
    nvl(new.used_count,0),
    nvl(old.get_count,0)+nvl(new.get_count,0),
    nvl(old.using_count,0)+nvl(new.using_count,0),
    nvl(old.used_count,0)+nvl(new.used_count,0)
from
(
    select
        *
    from ${APP}.dwt_coupon_topic
)old
full outer join
(
    select
        coupon_id,
        get_count,
        using_count,
        used_count
    from ${APP}.dws_coupon_use_daycount
    where dt='$do_date'
)new
on old.coupon_id=new.coupon_id;

insert overwrite table ${APP}.dwt_activity_topic
select
    nvl(new.id,old.id),
    nvl(new.activity_name,old.activity_name),
    nvl(new.order_count,0),
    nvl(new.payment_count,0),
    nvl(old.order_count,0)+nvl(new.order_count,0),
    nvl(old.payment_count,0)+nvl(new.payment_count,0)
from
(
    select
        *
    from ${APP}.dwt_activity_topic
)old
full outer join
(
    select
        id,
        activity_name,
        order_count,
        payment_count
    from ${APP}.dws_activity_info_daycount
    where dt='$do_date'
)new
on old.id=new.id;
"

$hive -e "$sql"

电商仓库建设之DWS和DWT层 ​

1. 业务术语 ​

1.1 用户 ​

1.2 新增用户 ​

1.3 活跃用户 ​

1.4 周(月)活跃用户 ​

1.5 月活跃率 ​

1.6 沉默用户 ​

1.7 版本分布 ​

1.8 本周回流用户 ​

1.9 连续n周活跃用户 ​

1.10 忠诚用户 ​

1.11 连续活跃用户 ​

1.12 近期流失用户 ​

1.13 留存用户 ​

1.14 用户新鲜度 ​

1.15 单次使用时长 ​

1.16 日使用时长 ​

1.17 启动次数计算标准 ​

2. DWS层(用户行为) ​

2.1 每日设备行为 ​

3. DWS层(业务) ​

3.1 每日会员行为 ​

3.2 每日商品行为 ​

3.3 每日优惠券统计 ​

3.4 每日活动统计 ​

3.5 每日购买行为 ​

4. DWS层数据导入脚本 ​

5. DWT层 ​

5.1 设备主题宽表 ​

5.2 会员主题宽表 ​

5.3 商品主题宽表 ​

5.4 优惠券主题宽表 ​

5.5 活动主题宽表 ​

6. DWT层数据导入脚本 ​
