电商仓库建设之ODS层 ​

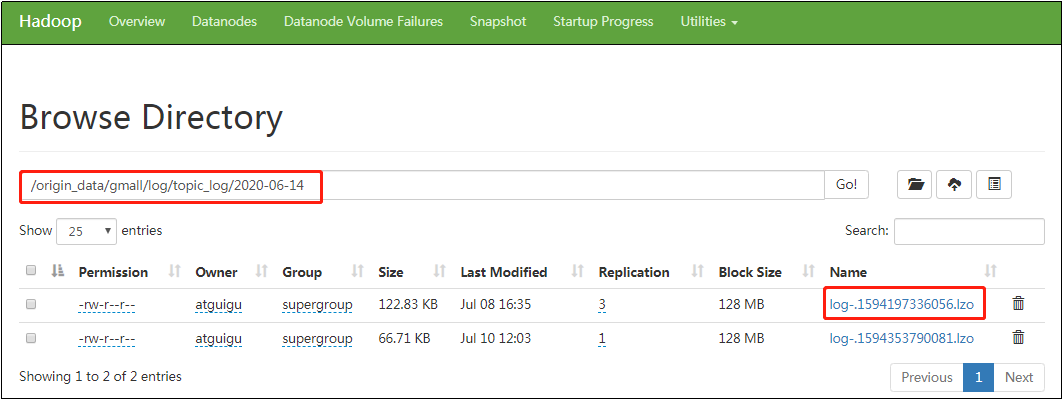

ODS层数据分为两大类： 用户行为数据和业务数据。其中用户行为数据如下： Alt text

1. ODS层数据总体思路 ​

1.1 用户行为数据 ​

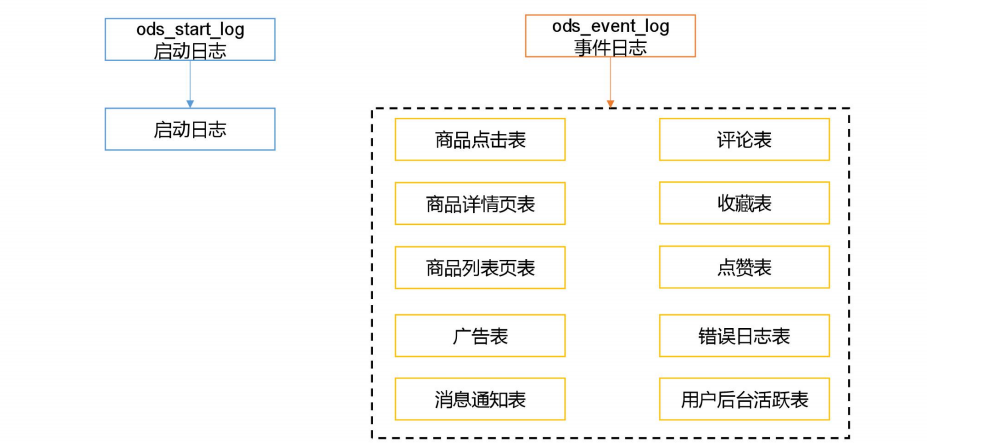

用户行为数据图

1.2 业务数据 ​

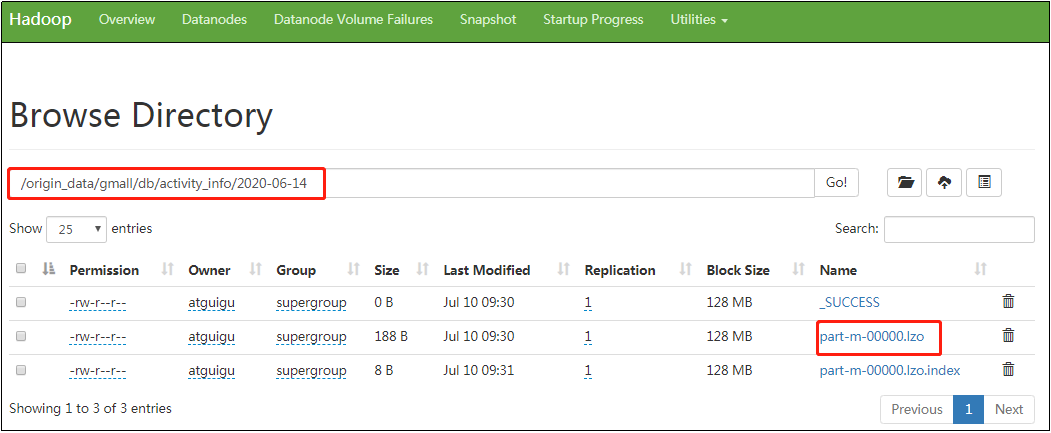

业务数据图 针对HDFS上的用户行为数据和业务数据，我们如何规划处理？

  • 保持数据原貌不做任何修改，起到备份数据的作用。
  • 数据采用压缩，减少磁盘存储空间(例如：原始数据100G，可以压缩到10G左右)
  • 创建分区表，防止后续的全表扫描。

2. 创建启动日志表ods_start_log ​

  1. 建表语句
sql
# 表存在先删除
drop table if exists ods_start_log;
# 创建外部表，字段为json字符串
CREATE EXTERNAL TABLE ods_start_log (`line` string)
# 按照日期分区
PARTITIONED BY (`dt` string)
STORED AS
# lzo压缩格式处理
INPUTFORMAT 'com.hadoop.mapred.DeprecatedLzoTextInputFormat'
OUTPUTFORMAT
'org.apache.hadoop.hive.ql.io.HiveIgnoreKeyTextOutputFormat'
# 设置存储位置
LOCATION '/warehouse/gmall/ods/ods_start_log';
  1. 数据装载
sql
load data INPath '/origin_data/gmall/log/topic_start/2020-03-10'
INTO TABLE ods_start_log partition(dt='2020-03-10')
  1. 维护索引
sh
hadoop jar /opt/module/hadoop-3.3.6/share/hadoop/common/hadoop-lzo-0.4.21-SNAPSHOT.jar  com.hadoop.compression.lzo.DistributedLzoIndexer /warehouse/gmall/ods/ods_start_log/dt=2020-03-10

3. 创建事件日志表ods_event_log ​

  1. 建表语句
sql
drop table if exists ods_event_log;
CREATE EXTERNAL TABLE ods_event_log(`line` string)
PARTITIONED BY (`dt` string)
STORED AS
INPUTFORMAT 'com.hadoop.mapred.DeprecatedLzoTextInputFormat'
OUTPUTFORMAT
'org.apache.hadoop.hive.ql.io.HiveIgnoreKeyTextOutputFormat'
LOCATION '/warehouse/gmall/ods/ods_event_log';
  1. 数据装载
sql
load data INPath '/origin_data/gmall/log/topic_event/2020-03-10'
INTO TABLE ods_event_log partition(dt='2020-03-10')
  1. 维护索引
sh
hadoop jar /opt/module/hadoop-3.3.6/share/hadoop/common/hadoop-lzo-0.4.21-SNAPSHOT.jar  com.hadoop.compression.lzo.DistributedLzoIndexer /warehouse/gmall/ods/ods_event_log/dt=2020-03-10

Shell中单引号和双引号区别

sh
#!/bin/bash
do_date=$1
echo '$do_date'
echo "$do_date"
echo "'$do_date'"
echo '"$do_date"'
echo `date`

执行结果：

sh
[jack@hadoop102 bin]$ test.sh 2020-03-10
$do_date
2020-03-10
'2020-03-10'
"$do_date"
2020 年 05 月 02 日 星期四 21:02:08 CST

总结
(1)单引号不取变量值
(2)双引号取变量值
(3)反引号`，执行引号中命令
(4)双引号内部嵌套单引号，取出变量值
(5)单引号内部嵌套双引号，不取出变量值

4. ODS层加载日志数据脚本 ​

  1. 在hadoop102的/home/jack/bin目录下创建脚本hdfs_to_ods_log.sh
sh
#!/bin/bash
# 定义变量方便修改
APP=gmall
hive=/opt/module/hive-4.0.1/bin/hive
# 如果是输入的日期按照取输入日期；如果没输入日期取当前时间的前一天
if [ -n "$1" ] ;then
	do_date=$1
else
	do_date=`date -d "-1 day" +%F`
fi
echo "===日志日期为 $do_date===="
sql="
load data inpath '/origin_data/gmall/log/topic_start/$do_date' overwrite
into table ${APP}.ods_start_log partition(dt='$do_date');
load data inpath '/origin_data/gmall/log/topic_event/$do_date' overwrite
into table ${APP}.ods_event_log partition(dt='$do_date');
"
$hive -e "$sql"
hadoop jar /opt/module/hadoop-3.3.6/share/hadoop/common/hadoop-lzo-0.4.21-SNAPSHOT.jar com.hadoop.compression.lzo.DistributedLzoIndexer /warehouse/gmall/ods/ods_start_log/dt=$do_date
hadoop jar /opt/module/hadoop-3.3.6/share/hadoop/common/hadoop-lzo-0.4.21-SNAPSHOT.jar com.hadoop.compression.lzo.DistributedLzoIndexer /warehouse/gmall/ods/ods_event_log/dt=$do_date
  1. 执行
sh
hdfs_to_ods_log.sh 2020-03-12

5. 订单表(增量更新) ​

  1. 建表语句
sql
drop table if exists ods_order_info;
create external table ods_order_info (
    `id` string COMMENT '订单号',
    `final_total_amount` decimal(10,2) COMMENT '订单金额',
    `order_status` string COMMENT '订单状态',
    `user_id` string COMMENT '用户 id',
    `out_trade_no` string COMMENT '支付流水号',
    `create_time` string COMMENT '创建时间',
    `operate_time` string COMMENT '操作时间',
    `province_id` string COMMENT '省份 ID',
    `benefit_reduce_amount` decimal(10,2) COMMENT '优惠金额',
    `original_total_amount` decimal(10,2) COMMENT '原价金额',
    `feight_fee` decimal(10,2) COMMENT '运费'
) COMMENT '订单表'
PARTITIONED BY (`dt` string)
row format delimited fields terminated by '\t'
STORED AS
INPUTFORMAT 'com.hadoop.mapred.DeprecatedLzoTextInputFormat'
OUTPUTFORMAT 'org.apache.hadoop.hive.ql.io.HiveIgnoreKeyTextOutputFormat'
location '/warehouse/gmall/ods/ods_order_info/';
  1. 数据装载
sql
load data INPath '/origin_data/gmall/db/order_detail/2020-03-10'
INTO TABLE ods_order_detail partition(dt='2020-03-10')
  1. 维护索引
sh

6. 订单详情表(增量) ​

  1. 建表语句
sql
drop table if exists ods_order_detail;
create external table ods_order_detail(
`id` string COMMENT '订单编号',
`order_id` string COMMENT '订单号',
`user_id` string COMMENT '用户 id',
`sku_id` string COMMENT '商品 id',
`sku_name` string COMMENT '商品名称',
`order_price` decimal(10,2) COMMENT '商品价格',
`sku_num` bigint COMMENT '商品数量',
`create_time` string COMMENT '创建时间'
) COMMENT '订单详情表'
PARTITIONED BY (`dt` string)
row format delimited fields terminated by '\t'
STORED AS
INPUTFORMAT 'com.hadoop.mapred.DeprecatedLzoTextInputFormat'
OUTPUTFORMAT 'org.apache.hadoop.hive.ql.io.HiveIgnoreKeyTextOutputFormat'
location '/warehouse/gmall/ods/ods_order_detail/';
  1. 数据装载
sql
load data INPath '/origin_data/gmall/db/order_detail/2020-03-10'
INTO TABLE ods_order_detail partition(dt='2020-03-10')
  1. 维护索引
sh

7. SKU商品表(全量) ​

  1. 建表语句
sh
drop table if exists ods_sku_info;
create external table ods_sku_info(
`id` string COMMENT 'skuId',
`spu_id` string COMMENT 'spuid',
`price` decimal(10,2) COMMENT '价格',
`sku_name` string COMMENT '商品名称',
`sku_desc` string COMMENT '商品描述',
`weight` string COMMENT '重量',
`tm_id` string COMMENT '品牌 id',
`category3_id` string COMMENT '品类 id',
`create_time` string COMMENT '创建时间'
) COMMENT 'SKU 商品表'
PARTITIONED BY (`dt` string)
row format delimited fields terminated by '\t'
STORED AS
INPUTFORMAT 'com.hadoop.mapred.DeprecatedLzoTextInputFormat'
OUTPUTFORMAT 'org.apache.hadoop.hive.ql.io.HiveIgnoreKeyTextOutputFormat'
location '/warehouse/gmall/ods/ods_sku_info/';
  1. 数据装载
sql
load data INPath '/origin_data/gmall/db/sku_info/2020-03-10'
INTO TABLE ods_sku_info partition(dt='2020-03-10')
  1. 维护索引
sh

8. 用户表(增量及更新) ​

  1. 建表语句
sh
drop table if exists ods_user_info;
create external table ods_user_info(
`id` string COMMENT '用户 id',
`name` string COMMENT '姓名',
`birthday` string COMMENT '生日',
`gender` string COMMENT '性别',
`email` string COMMENT '邮箱',
`user_level` string COMMENT '用户等级',
`create_time` string COMMENT '创建时间',
`operate_time` string COMMENT '操作时间'
) COMMENT '用户表'
PARTITIONED BY (`dt` string)
row format delimited fields terminated by '\t'
STORED AS
INPUTFORMAT 'com.hadoop.mapred.DeprecatedLzoTextInputFormat'
OUTPUTFORMAT 'org.apache.hadoop.hive.ql.io.HiveIgnoreKeyTextOutputFormat'
location '/warehouse/gmall/ods/ods_user_info/';
  1. 数据加载
sql
load DATA INPath '/origin_data/gmall/db/user_info/2020-03-10'
INTO TABLE ods_user_info partition(dt='2020-03-10')

9. 商品一级分类表(全量) ​

  1. 建表语句
sql
drop table if exists ods_base_category1;
create external table ods_base_category1(
    `id` string COMMENT 'id',
    `name`  string COMMENT '名称'
) COMMENT '商品一级分类品类表'
PARTITIONED BY (`dt` string)
row format delimited fields terminated by '\t'
STORED AS
  INPUTFORMAT 'com.hadoop.mapred.DeprecatedLzoTextInputFormat'
  OUTPUTFORMAT 'org.apache.hadoop.hive.ql.io.HiveIgnoreKeyTextOutputFormat'
location '/warehouse/gmall/ods/ods_base_category1/';

10. 商品二级分类表(全量) ​

  1. 建表语句
sql
drop table if exists ods_base_category2;
create external table ods_base_category2(
    `id` string COMMENT ' id',
    `name` string COMMENT '名称',
    category1_id string COMMENT '一级品类id'
) COMMENT '商品二级分类品类表'
PARTITIONED BY (`dt` string)
row format delimited fields terminated by '\t'
STORED AS
  INPUTFORMAT 'com.hadoop.mapred.DeprecatedLzoTextInputFormat'
  OUTPUTFORMAT 'org.apache.hadoop.hive.ql.io.HiveIgnoreKeyTextOutputFormat'
location '/warehouse/gmall/ods/ods_base_category2/';

11. 商品三级分类表(全量) ​

  1. 建表语句
sql
drop table if exists ods_base_category3;
create external table ods_base_category3(
    `id` string COMMENT ' id',
    `name`  string COMMENT '名称',
    category2_id string COMMENT '二级品类id'
) COMMENT '商品三级分类品类表'
PARTITIONED BY (`dt` string)
row format delimited fields terminated by '\t'
STORED AS
  INPUTFORMAT 'com.hadoop.mapred.DeprecatedLzoTextInputFormat'
  OUTPUTFORMAT 'org.apache.hadoop.hive.ql.io.HiveIgnoreKeyTextOutputFormat'
location '/warehouse/gmall/ods/ods_base_category3/';

12. 支付流水表(增量) ​

  1. 建表语句
sql
drop table if exists ods_payment_info;
create external table ods_payment_info(
    `id`   bigint COMMENT '编号',
    `out_trade_no`    string COMMENT '对外业务编号',
    `order_id`        string COMMENT '订单编号',
    `user_id`         string COMMENT '用户编号',
    `alipay_trade_no` string COMMENT '支付宝交易流水编号',
    `total_amount`    decimal(16,2) COMMENT '支付金额',
    `subject`         string COMMENT '交易内容',
    `payment_type`    string COMMENT '支付类型',
    `payment_time`    string COMMENT '支付时间'
)  COMMENT '支付流水表'
PARTITIONED BY (`dt` string)
row format delimited fields terminated by '\t'
STORED AS
  INPUTFORMAT 'com.hadoop.mapred.DeprecatedLzoTextInputFormat'
  OUTPUTFORMAT 'org.apache.hadoop.hive.ql.io.HiveIgnoreKeyTextOutputFormat'
location '/warehouse/gmall/ods/ods_payment_info/';

13. 省份表(特殊) ​

  1. 建表语句
sql
drop table if exists ods_base_province;
create external table ods_base_province (
    `id`   bigint COMMENT '编号',
    `name`        string COMMENT '省份名称',
    `region_id`    string COMMENT '地区id',
    `area_code`    string COMMENT '地区编码',
    `iso_code` string COMMENT 'iso编码'
   )  COMMENT '省份表'
row format delimited fields terminated by '\t'
STORED AS
  INPUTFORMAT 'com.hadoop.mapred.DeprecatedLzoTextInputFormat'
  OUTPUTFORMAT 'org.apache.hadoop.hive.ql.io.HiveIgnoreKeyTextOutputFormat'
location '/warehouse/gmall/ods/ods_base_province/';

14. 地区表(特殊) ​

  1. 建表语句
sql
drop table if exists ods_base_region;
create external table ods_base_region (
    `id`   bigint COMMENT '编号',
    `region_name`        string COMMENT '地区名称'
   )  COMMENT '地区表'
row format delimited fields terminated by '\t'
STORED AS
  INPUTFORMAT 'com.hadoop.mapred.DeprecatedLzoTextInputFormat'
  OUTPUTFORMAT 'org.apache.hadoop.hive.ql.io.HiveIgnoreKeyTextOutputFormat'
location '/warehouse/gmall/ods/ods_base_region/';

15. 品牌表(全量) ​

  1. 建表语句
sql
drop table if exists ods_base_trademark;
create external table ods_base_trademark (
    `tm_id`   bigint COMMENT '编号',
    `tm_name` string COMMENT '品牌名称'
)  COMMENT '品牌表'
PARTITIONED BY (`dt` string)
row format delimited fields terminated by '\t'
STORED AS
  INPUTFORMAT 'com.hadoop.mapred.DeprecatedLzoTextInputFormat'
  OUTPUTFORMAT 'org.apache.hadoop.hive.ql.io.HiveIgnoreKeyTextOutputFormat'
location '/warehouse/gmall/ods/ods_base_trademark/';

16. 订单状态表(增量) ​

  1. 建表语句
sql
drop table if exists ods_order_status_log;
create external table ods_order_status_log (
    `id`   bigint COMMENT '编号',
    `order_id` string COMMENT '订单id编号',
    `order_status` string COMMENT '订单状态',
    `operate_time` string COMMENT '操作时间'
)  COMMENT '订单状态表'
PARTITIONED BY (`dt` string)
row format delimited fields terminated by '\t'
STORED AS
  INPUTFORMAT 'com.hadoop.mapred.DeprecatedLzoTextInputFormat'
  OUTPUTFORMAT 'org.apache.hadoop.hive.ql.io.HiveIgnoreKeyTextOutputFormat'
location '/warehouse/gmall/ods/ods_order_status_log/';

17. SPU商品表(全量) ​

  1. 建表语句
sql
drop table if exists ods_spu_info;
create external table ods_spu_info(
    `id` string COMMENT '商品id',
    `spu_name` string COMMENT '商品名称',
    `category3_id` string COMMENT '三级分类品类id',
    `tm_id` string COMMENT '品牌id'
) COMMENT 'SPU商品表'
PARTITIONED BY (`dt` string)
row format delimited fields terminated by '\t'
STORED AS
  INPUTFORMAT 'com.hadoop.mapred.DeprecatedLzoTextInputFormat'
  OUTPUTFORMAT 'org.apache.hadoop.hive.ql.io.HiveIgnoreKeyTextOutputFormat'
location '/warehouse/gmall/ods/ods_spu_info/';

18. 商品评论表(增量) ​

  1. 建表语句
sql
drop table if exists ods_comment_info;
create external table ods_comment_info(
    `id` string COMMENT '编号',
    `user_id` string COMMENT '用户id',
    `sku_id` string COMMENT '商品id',
    `spu_id` string COMMENT '标准产品单位id',
    `order_id` string COMMENT '订单id编号',
    `appraise` string COMMENT '评价',
    `create_time` string COMMENT '评价时间'
) COMMENT '商品评论评价表'
PARTITIONED BY (`dt` string)
row format delimited fields terminated by '\t'
STORED AS
  INPUTFORMAT 'com.hadoop.mapred.DeprecatedLzoTextInputFormat'
  OUTPUTFORMAT 'org.apache.hadoop.hive.ql.io.HiveIgnoreKeyTextOutputFormat'
location '/warehouse/gmall/ods/ods_comment_info/';

19. 退单表(增量) ​

  1. 建表语句
sql
drop table if exists ods_order_refund_info;
create external table ods_order_refund_info(
    `id` string COMMENT '编号',
    `user_id` string COMMENT '用户id',
    `order_id` string COMMENT '订单编号',
    `sku_id` string COMMENT '商品id',
    `refund_type` string COMMENT '退款类型',
    `refund_num` bigint COMMENT '退款件数',
    `refund_amount` decimal(16,2) COMMENT '退款金额',
    `refund_reason_type` string COMMENT '退款原因类型',
    `create_time` string COMMENT '退款时间'
) COMMENT '退单退款表'
PARTITIONED BY (`dt` string)
row format delimited fields terminated by '\t'
STORED AS
  INPUTFORMAT 'com.hadoop.mapred.DeprecatedLzoTextInputFormat';

20. 加购表(全量) ​

  1. 建表语句
sql
drop table if exists ods_cart_info;
create external table ods_cart_info(
    `id` string COMMENT '编号',
    `user_id` string  COMMENT '用户id',
    `sku_id` string  COMMENT '商品id',
    `cart_price` string  COMMENT '放入购物车时的价格',
    `sku_num` string  COMMENT '数量',
    `sku_name` string  COMMENT 'SKU名称 (冗余)',
    `create_time` string  COMMENT '创建时间',
    `operate_time` string COMMENT '修改时间操作时间',
    `is_ordered` string COMMENT '是否已经下单',
    `order_time` string  COMMENT '下单时间'
) COMMENT '加购表'
PARTITIONED BY (`dt` string)
row format delimited fields terminated by '\t'
STORED AS
  INPUTFORMAT 'com.hadoop.mapred.DeprecatedLzoTextInputFormat'
  OUTPUTFORMAT 'org.apache.hadoop.hive.ql.io.HiveIgnoreKeyTextOutputFormat'
location '/warehouse/gmall/ods/ods_cart_info/';

21. 商品收藏表(全量) ​

  1. 建表语句
sql
drop table if exists ods_favor_info;
create external table ods_favor_info(
    `id` string COMMENT '编号',
    `user_id` string  COMMENT '用户id',
    `sku_id` string  COMMENT '商品id',
    `spu_id` string  COMMENT '标准产品单位id',
    `is_cancel` string  COMMENT '是否取消',
    `create_time` string  COMMENT '收藏时间',
    `cancel_time` string  COMMENT '取消时间'
) COMMENT '商品收藏表'
PARTITIONED BY (`dt` string)
row format delimited fields terminated by '\t'
STORED AS
  INPUTFORMAT 'com.hadoop.mapred.DeprecatedLzoTextInputFormat'
  OUTPUTFORMAT 'org.apache.hadoop.hive.ql.io.HiveIgnoreKeyTextOutputFormat'
location '/warehouse/gmall/ods/ods_favor_info/';

22. 优惠券领用表(新增及变化) ​

  1. 建表语句
sql
drop table if exists ods_coupon_use;
create external table ods_coupon_use(
    `id` string COMMENT '编号',
    `coupon_id` string  COMMENT '优惠券id',
    `user_id` string  COMMENT '用户id',
    `order_id` string  COMMENT '订单编号',
    `coupon_status` string  COMMENT '优惠券状态',
    `get_time` string  COMMENT '领取时间',
    `using_time` string  COMMENT '使用时间(下单)',
    `used_time` string  COMMENT '使用时间(支付)'
) COMMENT '优惠券领用表'
PARTITIONED BY (`dt` string)
row format delimited fields terminated by '\t'
STORED AS
  INPUTFORMAT 'com.hadoop.mapred.DeprecatedLzoTextInputFormat'
  OUTPUTFORMAT 'org.apache.hadoop.hive.ql.io.HiveIgnoreKeyTextOutputFormat'
location '/warehouse/gmall/ods/ods_coupon_use/';
  1. 数据加载
sh
import_coupon_use(){
  import_data coupon_use "select
                          id,
                          coupon_id,
                          user_id,
                          order_id,
                          coupon_status,
                          get_time,
                          using_time,
                          used_time
                        from coupon_use
                        where (date_format(get_time,'%Y-%m-%d')='$do_date'
                        or date_format(using_time,'%Y-%m-%d')='$do_date'
                        or date_format(used_time,'%Y-%m-%d')='$do_date')"
}

23. 优惠券表(全量) ​

  1. 建表语句
sql
drop table if exists ods_coupon_info;
create external table ods_coupon_info(
  `id` string COMMENT '优惠券编号',
  `coupon_name` string COMMENT '优惠券名称',
  `coupon_type` string COMMENT '优惠券类型 1 现金券 2 折扣券 3 满减券 4 满件打折券',
  `condition_amount` string COMMENT '满减金额',
  `condition_num` string COMMENT '满减件数',
  `activity_id` string COMMENT '活动编号',
  `benefit_amount` string COMMENT '优惠金额',
  `benefit_discount` string COMMENT '优惠折扣',
  `create_time` string COMMENT '创建时间',
  `range_type` string COMMENT '范围类型1商品2品类3品牌',
  `spu_id` string COMMENT '商品id',
  `tm_id` string COMMENT '品牌id',
  `category3_id` string COMMENT '品类id',
  `limit_num` string COMMENT '最多领用次数',
  `operate_time`  string COMMENT '操作时间',
  `expire_time`  string COMMENT '过期时间'
) COMMENT '优惠券表'
PARTITIONED BY (`dt` string)
row format delimited fields terminated by '\t'
STORED AS
  INPUTFORMAT 'com.hadoop.mapred.DeprecatedLzoTextInputFormat'
  OUTPUTFORMAT 'org.apache.hadoop.hive.ql.io.HiveIgnoreKeyTextOutputFormat'
location '/warehouse/gmall/ods/ods_coupon_info/';

24. 活动表(全量) ​

  1. 建表语句
sql
drop table if exists ods_activity_info;
create external table ods_activity_info(
    `id` string COMMENT '活动id',
    `activity_name` string  COMMENT '活动名称',
    `activity_type` string  COMMENT '活动类型',
    `start_time` string  COMMENT '开始时间',
    `end_time` string  COMMENT '结束时间',
    `create_time` string  COMMENT '创建时间'
) COMMENT '活动表'
PARTITIONED BY (`dt` string)
row format delimited fields terminated by '\t'
STORED AS
  INPUTFORMAT 'com.hadoop.mapred.DeprecatedLzoTextInputFormat'
  OUTPUTFORMAT 'org.apache.hadoop.hive.ql.io.HiveIgnoreKeyTextOutputFormat'
location '/warehouse/gmall/ods/ods_activity_info/';

25. 活动订单关联表(增量) ​

  1. 建表语句
sql
drop table if exists ods_activity_order;
create external table ods_activity_order(
    `id` string COMMENT '编号',
    `activity_id` string  COMMENT '活动id',
    `order_id` string  COMMENT '订单编号',
    `create_time` string  COMMENT '创建时间'
) COMMENT '活动订单关联表'
PARTITIONED BY (`dt` string)
row format delimited fields terminated by '\t'
STORED AS
  INPUTFORMAT 'com.hadoop.mapred.DeprecatedLzoTextInputFormat'
  OUTPUTFORMAT 'org.apache.hadoop.hive.ql.io.HiveIgnoreKeyTextOutputFormat'
location '/warehouse/gmall/ods/ods_activity_order/';

26. 优惠规则表(全量) ​

  1. 建表语句
sql
drop table if exists ods_activity_rule;
create external table ods_activity_rule(
    `id` string COMMENT '编号',
    `activity_id` string  COMMENT '活动id',
    `condition_amount` string  COMMENT '满减金额',
    `condition_num` string  COMMENT '满减件数',
    `benefit_amount` string  COMMENT '优惠金额',
    `benefit_discount` string  COMMENT '优惠折扣',
    `benefit_level` string  COMMENT '优惠级别'
) COMMENT '优惠规则表'
PARTITIONED BY (`dt` string)
row format delimited fields terminated by '\t'
STORED AS
  INPUTFORMAT 'com.hadoop.mapred.DeprecatedLzoTextInputFormat'
  OUTPUTFORMAT 'org.apache.hadoop.hive.ql.io.HiveIgnoreKeyTextOutputFormat'
location '/warehouse/gmall/ods/ods_activity_rule/';

27. 编码字典表(全量) ​

  1. 建表语句
sql
drop table if exists ods_base_dic;
create external table ods_base_dic(
    `dic_code` string COMMENT '编号',
    `dic_name` string  COMMENT '编码名称',
    `parent_code` string  COMMENT '父编码',
    `create_time` string  COMMENT '创建日期',
    `operate_time` string  COMMENT '操作日期'
) COMMENT '编码字典表'
PARTITIONED BY (`dt` string)
row format delimited fields terminated by '\t'
STORED AS
  INPUTFORMAT 'com.hadoop.mapred.DeprecatedLzoTextInputFormat'
  OUTPUTFORMAT 'org.apache.hadoop.hive.ql.io.HiveIgnoreKeyTextOutputFormat'
location '/warehouse/gmall/ods/ods_base_dic/';

28. 参与活动商品表 ​

sql
drop table if exists ods_activity_sku;
create external table ods_activity_sku (
    `id` string COMMENT '编号',
    `activity_id` string  COMMENT '活动id',
    `sku_id` string  COMMENT '商品id',
    `create_time` string  COMMENT '创建日期'
) COMMENT '参与活动商品表'
PARTITIONED BY (`dt` string)
row format delimited fields terminated by '\t'
STORED AS
  INPUTFORMAT 'com.hadoop.mapred.DeprecatedLzoTextInputFormat'
  OUTPUTFORMAT 'org.apache.hadoop.hive.ql.io.HiveIgnoreKeyTextOutputFormat'
location '/warehouse/gmall/ods/ods_activity_sku/';

29. ODS层加载数据脚本 ​

  1. 在/home/jack/bin目录下创建脚本hdfs_to_ods_db.sh
sh
#!/bin/bash

APP=gmall
hive=/opt/module/hive/bin/hive

# 如果输入了日期参数，则取输入参数作为日期值；如果没有输入日期参数，则取当前时间的前一天作为日期值
if [ -n "$2" ] ;then
    do_date=$2
else
    do_date=`date -d "-1 day" +%F`
fi

sql1="
load data inpath '/origin_data/$APP/db/order_info/$do_date' OVERWRITE into table ${APP}.ods_order_info partition(dt='$do_date');

load data inpath '/origin_data/$APP/db/order_detail/$do_date' OVERWRITE into table ${APP}.ods_order_detail partition(dt='$do_date');

load data inpath '/origin_data/$APP/db/sku_info/$do_date' OVERWRITE into table ${APP}.ods_sku_info partition(dt='$do_date');

load data inpath '/origin_data/$APP/db/user_info/$do_date' OVERWRITE into table ${APP}.ods_user_info partition(dt='$do_date');

load data inpath '/origin_data/$APP/db/payment_info/$do_date' OVERWRITE into table ${APP}.ods_payment_info partition(dt='$do_date');

load data inpath '/origin_data/$APP/db/base_category1/$do_date' OVERWRITE into table ${APP}.ods_base_category1 partition(dt='$do_date');

load data inpath '/origin_data/$APP/db/base_category2/$do_date' OVERWRITE into table ${APP}.ods_base_category2 partition(dt='$do_date');

load data inpath '/origin_data/$APP/db/base_category3/$do_date' OVERWRITE into table ${APP}.ods_base_category3 partition(dt='$do_date');

load data inpath '/origin_data/$APP/db/base_trademark/$do_date' OVERWRITE into table ${APP}.ods_base_trademark partition(dt='$do_date');

load data inpath '/origin_data/$APP/db/activity_info/$do_date' OVERWRITE into table ${APP}.ods_activity_info partition(dt='$do_date');

load data inpath '/origin_data/$APP/db/activity_order/$do_date' OVERWRITE into table ${APP}.ods_activity_order partition(dt='$do_date');

load data inpath '/origin_data/$APP/db/cart_info/$do_date' OVERWRITE into table ${APP}.ods_cart_info partition(dt='$do_date');

load data inpath '/origin_data/$APP/db/comment_info/$do_date' OVERWRITE into table ${APP}.ods_comment_info partition(dt='$do_date');

load data inpath '/origin_data/$APP/db/coupon_info/$do_date' OVERWRITE into table ${APP}.ods_coupon_info partition(dt='$do_date');

load data inpath '/origin_data/$APP/db/coupon_use/$do_date' OVERWRITE into table ${APP}.ods_coupon_use partition(dt='$do_date');

load data inpath '/origin_data/$APP/db/favor_info/$do_date' OVERWRITE into table ${APP}.ods_favor_info partition(dt='$do_date');

load data inpath '/origin_data/$APP/db/order_refund_info/$do_date' OVERWRITE into table ${APP}.ods_order_refund_info partition(dt='$do_date');

load data inpath '/origin_data/$APP/db/order_status_log/$do_date' OVERWRITE into table ${APP}.ods_order_status_log partition(dt='$do_date');

load data inpath '/origin_data/$APP/db/spu_info/$do_date' OVERWRITE into table ${APP}.ods_spu_info partition(dt='$do_date');

load data inpath '/origin_data/$APP/db/activity_rule/$do_date' OVERWRITE into table ${APP}.ods_activity_rule partition(dt='$do_date');

load data inpath '/origin_data/$APP/db/base_dic/$do_date' OVERWRITE into table ${APP}.ods_base_dic partition(dt='$do_date');

load data inpath '/origin_data/$APP/db/activity_sku/$do_date' OVERWRITE into table ${APP}.ods_activity_sku partition(dt='$do_date');
"

sql2="
load data inpath '/origin_data/$APP/db/base_province/$do_date' OVERWRITE into table ${APP}.ods_base_province;

load data inpath '/origin_data/$APP/db/base_region/$do_date' OVERWRITE into table ${APP}.ods_base_region;
"
case $1 in
"first"){
    $hive -e "$sql1"
    $hive -e "$sql2"
};;
"all"){
    $hive -e "$sql1"
};;
esac
