电商仓库建设之DWD和DMI层

1. 维度建模

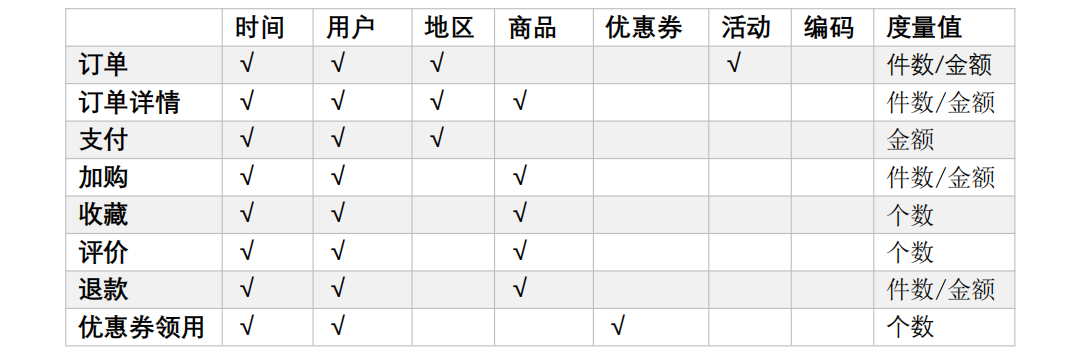

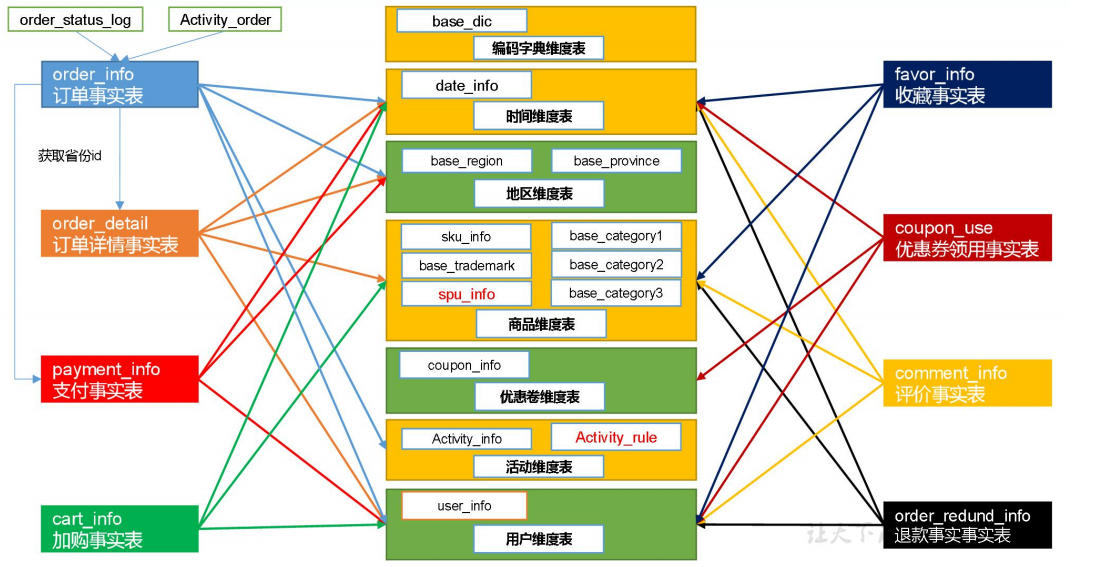

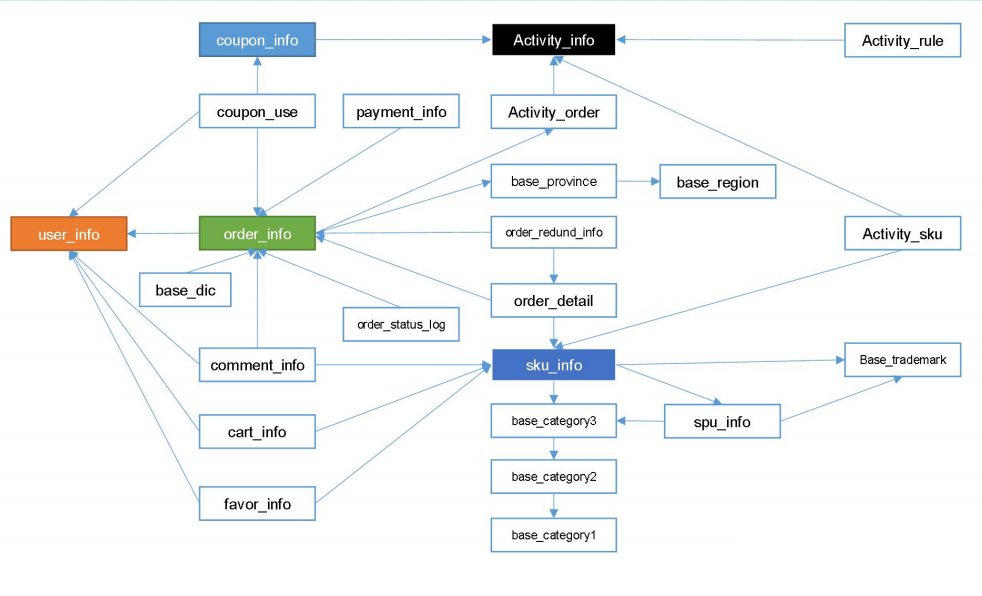

DWD层需构建维度模型，经过分析业务、维度、度量关系如下：
Alt text 至此，电商仓库的维度建模已经完毕。

2. DWD层表结构设计

Alt text 数据采用parquet存储方式，是可以支持切片的，不需要再对数据创建索引。

3. 创建启动表

创建表

sql

drop table if exists dwd_start_log;
CREATE EXTERNAL TABLE dwd_start_log(
`mid_id` string,
`user_id` string,
`version_code` string,
`version_name` string,
`lang` string,
`source` string,
`os` string,
`area` string,
`model` string,
`brand` string,
`sdk_version` string,
`gmail` string,
`height_width` string,
`app_time` string,
`network` string,
`lng` string,
`lat` string,
`entry` string,
`open_ad_type` string,
`action` string,
`loading_time` string,
`detail` string,
`extend1` string
)
PARTITIONED BY (dt string)
stored as parquet
location '/warehouse/gmall/dwd/dwd_start_log/'
TBLPROPERTIES('parquet.compression'='lzo');

导入数据,其中get_json_object支持解析json字符串

insert overwrite table dwd_start_log
PARTITION (dt='2020-03-10')
select
get_json_object(line,'$.mid') mid_id,
get_json_object(line,'$.uid') user_id,
get_json_object(line,'$.vc') version_code,
get_json_object(line,'$.vn') version_name,
get_json_object(line,'$.l') lang,
get_json_object(line,'$.sr') source,
get_json_object(line,'$.os') os,
get_json_object(line,'$.ar') area,
get_json_object(line,'$.md') model,
get_json_object(line,'$.ba') brand,
get_json_object(line,'$.sv') sdk_version,
get_json_object(line,'$.g') gmail,
get_json_object(line,'$.hw') height_width,
get_json_object(line,'$.t') app_time,
get_json_object(line,'$.nw') network,
get_json_object(line,'$.ln') lng,
get_json_object(line,'$.la') lat,
get_json_object(line,'$.entry') entry,
get_json_object(line,'$.open_ad_type') open_ad_type,
get_json_object(line,'$.action') action,
get_json_object(line,'$.loading_time') loading_time,
get_json_object(line,'$.detail') detail,
get_json_object(line,'$.extend1') extend1
from ods_start_log
where dt='2020-03-10';

方便维护，可以写成一个脚本ods_to_dwd_log.sh

#!/bin/bash
# 定义变量方便修改
APP=gmall
hive=/opt/module/hive/bin/hive
# 如果是输入的日期按照取输入日期；如果没输入日期取当前时间的前一天
if [ -n "$1" ] ;then
do_date=$1
else
do_date=`date -d "-1 day" +%F`
fi
sql="
set hive.exec.dynamic.partition.mode=nonstrict;
insert overwrite table "$APP".dwd_start_log
PARTITION (dt='$do_date')
select
get_json_object(line,'$.mid') mid_id,
get_json_object(line,'$.uid') user_id,
get_json_object(line,'$.vc') version_code,
get_json_object(line,'$.vn') version_name,
get_json_object(line,'$.l') lang,
get_json_object(line,'$.sr') source,
get_json_object(line,'$.os') os,
get_json_object(line,'$.ar') area,
get_json_object(line,'$.md') model,
get_json_object(line,'$.ba') brand,
get_json_object(line,'$.sv') sdk_version,
get_json_object(line,'$.g') gmail,
get_json_object(line,'$.hw') height_width,
get_json_object(line,'$.t') app_time,
get_json_object(line,'$.nw') network,
get_json_object(line,'$.ln') lng,
get_json_object(line,'$.la') lat,
get_json_object(line,'$.entry') entry,
get_json_object(line,'$.open_ad_type') open_ad_type,
get_json_object(line,'$.action') action,
get_json_object(line,'$.loading_time') loading_time,
get_json_object(line,'$.detail') detail,
get_json_object(line,'$.extend1') extend1
from "$APP".ods_start_log
where dt='$do_date';
"
$hive -e "$sql"

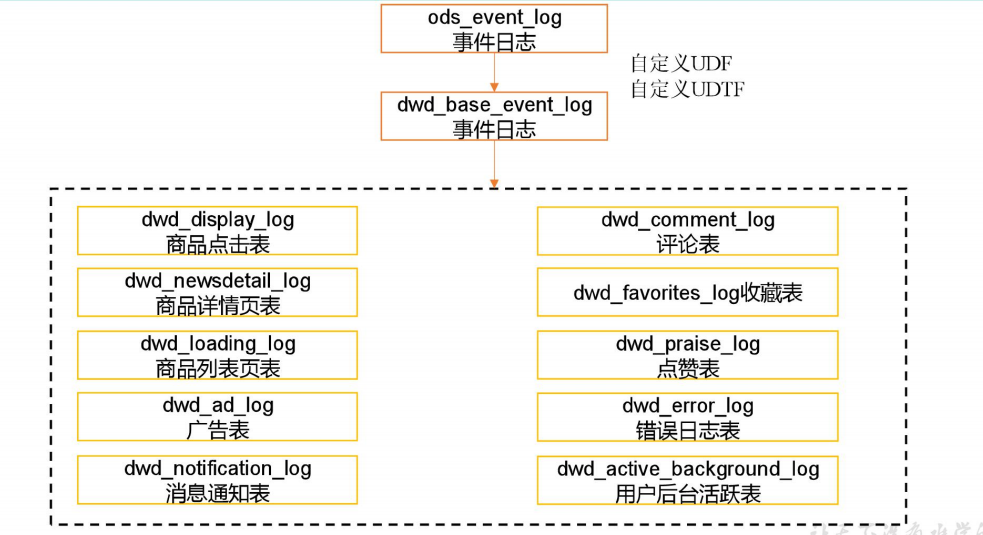

4. DWD层(用户行为相关表)

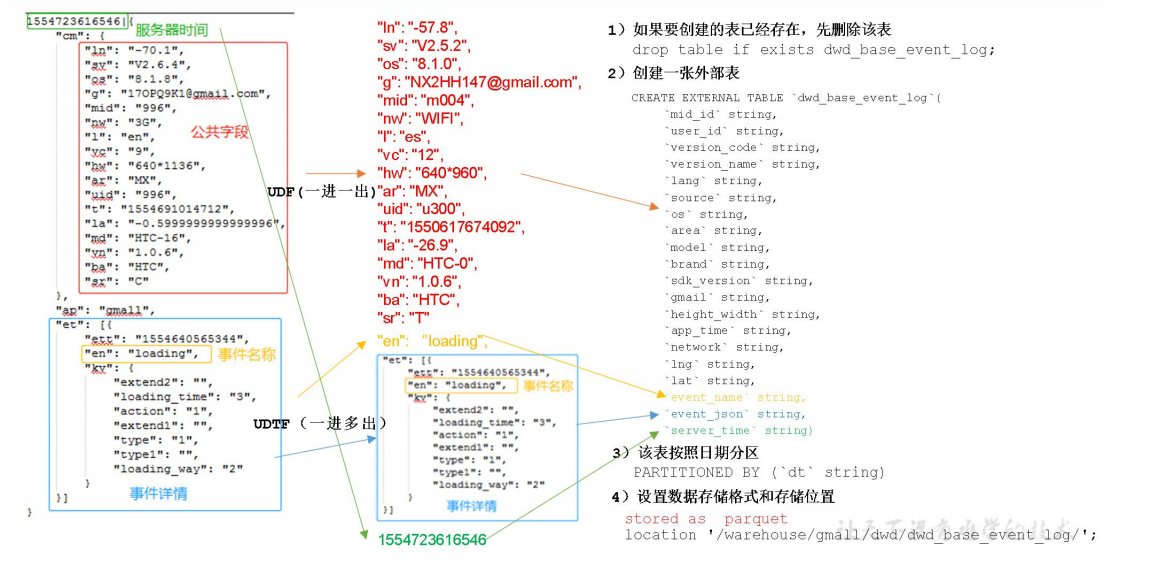

Alt text 从json字段中解析并炸裂成多行的逻辑解析：

创建事件日志基础明细表

sql

drop table if exists dwd_base_event_log;
CREATE EXTERNAL TABLE dwd_base_event_log(
`mid_id` string,
`user_id` string,
`version_code` string,
`version_name` string,
`lang` string,
`source` string,
`os` string,
`area` string,
`model` string,
`brand` string,
`sdk_version` string,
`gmail` string,
`height_width` string,
`app_time` string,
`network` string,
`lng` string,
`lat` string,
`event_name` string,
`event_json` string,
`server_time` string)
PARTITIONED BY (`dt` string)
stored as parquet
location '/warehouse/gmall/dwd/dwd_base_event_log/'
TBLPROPERTIES('parquet.compression'='lzo');

说明：其中event_name和event_json用来对应事件名和整个事件。这个地方将原始日志一对多的形式拆分出来了。操作的时候我们需要将原始日志展平，需要用到UDF和UDTF。

4.5 自定义UDF函数(解析公共字段)

UDF函数特点：一行进一行出。简称，一进一出。

创建hivefunction工程
自定义UDF函数(解析公共字段)

BaseFieldUdfFunction.javaEventJsonUDTF.java

java

public class BaseFieldUdfFunction extends UDF {

    public String evaluate(String line, String key) {
        String[] log = line.split("\\|");
        if(log.length!=2 || StringUtils.isBlank(log[0])){
            return "";
        }
        JSONObject baseJson = new JSONObject(log[1]);
        if("st".equals(key)){
            return log[0].trim();
        }else if("et".equals(key)){
            if(baseJson.has("et")){
                return baseJson.getString("et");
            }
        }else {
            // 获取 key 对应公共字段的 value
            JSONObject cm = baseJson.getJSONObject("cm");
            if(cm.has(key)){
                return cm.getString(key);
            }
        }
        return "";
    }
}

java

public class EventJsonUDTF extends GenericUDTF {

    //该方法中，我们将指定输出参数的名称和参数类型：
    @Override
    public StructObjectInspector initialize(StructObjectInspector argOIs) throws UDFArgumentException {
        ArrayList<String> fieldNames = new ArrayList<String>();
        ArrayList<ObjectInspector> fieldTypes = new ArrayList<>();

        fieldNames.add("event_name");
        fieldTypes.add(PrimitiveObjectInspectorFactory.javaStringObjectInspector);
        fieldNames.add("event_json");
        fieldTypes.add(PrimitiveObjectInspectorFactory.javaStringObjectInspector);
        return ObjectInspectorFactory.getStandardStructObjectInspector(fieldNames, fieldTypes);
    }
    //输入 1 条记录，输出若干条结果
    @Override
    public void process(Object[] objects) throws HiveException {
        // 获取传入的 et
        String et = objects[0].toString();
        // 如果传进来的数据为空，直接返回过滤掉该数据
        if(StringUtils.isBlank(et)){
            return;
        }else{
            JSONArray ja = new JSONArray(et);
            if (ja == null)
                return;

            String[] result = new String[2];
            try{
                // 循环遍历每一个事件
                for (int i = 0; i < ja.length(); i++) {

                    // 取出每个的事件名称(ad/facoriters)
                    result[0] = ja.getJSONObject(i).getString("en");
                    // 取出每一个事件整体
                    result[1] = ja.getString(i);
                }
                forward(result);
            }catch (JSONException e){
                e.printStackTrace();
            }
        }
    }

    //当没有记录处理的时候该方法会被调用，用来清理代码或者产生额外的输出
    @Override
    public void close() throws HiveException {

    }
}

打包上传到HDFS中

[jack@hadoop102 software]$ hadoop fs -mkdir -p /user/hive/jars
[jack@hadoop102 software]$ hadoop fs -put hivefunctions-1.0-SNAPSHOT.jar /user/hive/jars

创建永久函数

sql

create function base_analizer as 'com.rocket.hive.functions.BaseFieldUdfFunction' using jar 'hdfs://hadoop102:8020/user/hive/jars/hivefunctions-1.0-SNAPSHOT.jar';
create function flat_analizer AS 'com.rocket.hive.functions.EventJsonUDTF' using jar 'hdfs://hadoop102:8020/user/hive/jars/	hivefunctions-1.0-SNAPSHOT.jar';

提示

如果修改了自定义函数重新生成 jar 包怎么处理？
只需要替换HDFS路径上的旧jar包，然后重启Hive客户端即可。

导入数据sql编写

sql

INSERT overwrite TABLE dwd_base_event_log partition(dt='2020-03-12')
SELECT
    base_analizer(line,'mid') as mid_id,
    base_analizer(line,'uid') as user_id,
    base_analizer(line,'vc') as version_code,
    base_analizer(line,'vn') as version_name,
    base_analizer(line,'l') as lang,
    base_analizer(line,'sr') as source,
    base_analizer(line,'os') as os,
    base_analizer(line,'ar') as area,
    base_analizer(line,'md') as model,
    base_analizer(line,'ba') as brand,
    base_analizer(line,'sv') as sdk_version,
    base_analizer(line,'g') as gmail,
    base_analizer(line,'hw') as height_width,
    base_analizer(line,'t') as app_time,
    base_analizer(line,'nw') as network,
    base_analizer(line,'ln') as lng,
    base_analizer(line,'la') as lat,
    event_name,
    event_json,
    base_analizer(line,'st') as server_time
FROM ods_event_log lateral view flat_analizer(base_analizer(line,'et')) tmp_flat AS event_name,event_json
WHERE dt='2020-03-12';

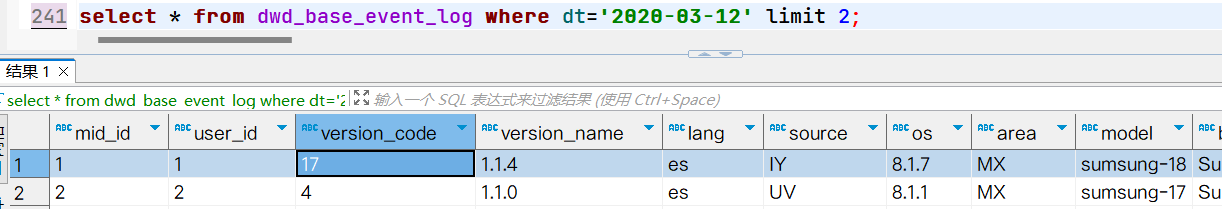

测试数据是否导入

4.6 DWD层数据解析脚本

在hadoop102的/home/jack/bin目录下创建脚本

[jack@hadoop102 bin]$ vim ods_to_dwd_base_log.sh
# 在脚本中编写如下内容
#!/bin/bash
# 定义变量方便修改
APP=gmall
hive=/opt/module/hive-4.0.1/bin/hive
# 如果是输入的日期按照取输入日期；如果没输入日期取当前时间的前一天
if [ -n "$1" ] ;then
  do_date=$1
else
  do_date=`date -d "-1 day" +%F`
fi
sql="
use gmall;
insert overwrite table "$APP".dwd_base_event_log partition(dt='$do_date')
select
base_analizer(line,'mid') as mid_id,
base_analizer(line,'uid') as user_id,
base_analizer(line,'vc') as version_code,
base_analizer(line,'vn') as version_name,
base_analizer(line,'l') as lang,
base_analizer(line,'sr') as source,
base_analizer(line,'os') as os,
base_analizer(line,'ar') as area,
base_analizer(line,'md') as model,
base_analizer(line,'ba') as brand,
base_analizer(line,'sv') as sdk_version,
base_analizer(line,'g') as gmail,
base_analizer(line,'hw') as height_width,
base_analizer(line,'t') as app_time,
base_analizer(line,'nw') as network,
base_analizer(line,'ln') as lng,
base_analizer(line,'la') as lat,
event_name,
event_json,
base_analizer(line,'st') as server_time
from "$APP".ods_event_log lateral view flat_analizer(base_analizer(line,'et')) tem_flat as
event_name,event_json
where dt='$do_date' and base_analizer(line,'et')<>''; "
$hive -e "$sql"

警告

使用自定义函数时，需要在执行脚本前，增加上要使用的库。例如：use gmall;

增加脚本执行权限

[jack@hadoop102 bin]$ chmod 777 ods_to_dwd_base_log.sh

4.7 DWD层(大屏显示表)

创建表

sql

drop table if exists dwd_display_log;
CREATE EXTERNAL TABLE dwd_display_log(
`mid_id` string,
`user_id` string,
`version_code` string,
`version_name` string,
`lang` string,
`source` string,
`os` string,
`area` string,
`model` string,
`brand` string,
`sdk_version` string,
`gmail` string,
`height_width` string,
`app_time` string,
`network` string,
`lng` string,
`lat` string,
`action` string,
`goodsid` string,
`place` string,
`extend1` string,
`category` string,
`server_time` string
)
PARTITIONED BY (dt string)
stored as parquet
location '/warehouse/gmall/dwd/dwd_display_log/'
TBLPROPERTIES('parquet.compression'='lzo');

导入数据

sql

insert overwrite table dwd_display_log PARTITION (dt='2020-03-12')
select
mid_id,
user_id,
version_code,
version_name,
lang,
source,
os,
area,
model,
brand,
sdk_version,
gmail,
height_width,
app_time,
network,
lng,
lat,
get_json_object(event_json,'$.kv.action') action,
get_json_object(event_json,'$.kv.goodsid') goodsid,
get_json_object(event_json,'$.kv.place') place,
get_json_object(event_json,'$.kv.extend1') extend1,
get_json_object(event_json,'$.kv.category') category,
server_time
from dwd_base_event_log
where dt='2020-03-12' and event_name='display';

4.8 商品详情页表

建表语句

sql

drop table if exists dwd_newsdetail_log;
CREATE EXTERNAL TABLE dwd_newsdetail_log(
`mid_id` string,
`user_id` string,
`version_code` string,
`version_name` string,
`lang` string,
`source` string,
`os` string,
`area` string,
`model` string,
`brand` string,
`sdk_version` string,
`gmail` string,
`height_width` string,
`app_time` string,
`network` string,
`lng` string,
`lat` string,
`entry` string,
`action` string,
`goodsid` string,
`showtype` string,
`news_staytime` string,
`loading_time` string,
`type1` string,
`category` string,
`server_time` string)
PARTITIONED BY (dt string)
stored as parquet
location '/warehouse/gmall/dwd/dwd_newsdetail_log/'
TBLPROPERTIES('parquet.compression'='lzo');

导入数据

sql

insert overwrite table dwd_newsdetail_log PARTITION (dt='2020-03-10')
select
mid_id,
user_id,
version_code,
version_name,
lang,
source,
os,
area,
model,
brand,
sdk_version,
gmail,
height_width,
app_time,
network,
lng,
lat,
get_json_object(event_json,'$.kv.entry') entry,
get_json_object(event_json,'$.kv.action') action,
get_json_object(event_json,'$.kv.goodsid') goodsid,
get_json_object(event_json,'$.kv.showtype') showtype,
get_json_object(event_json,'$.kv.news_staytime') news_staytime,
get_json_object(event_json,'$.kv.loading_time') loading_time,
get_json_object(event_json,'$.kv.type1') type1,
get_json_object(event_json,'$.kv.category') category,
server_time
from dwd_base_event_log
where dt='2020-03-10' and event_name='newsdetail';

4.9 商品列表页表

建表语句

sql

drop table if exists dwd_loading_log;
CREATE EXTERNAL TABLE dwd_loading_log(
`mid_id` string,
`user_id` string,
`version_code` string,
`version_name` string,
`lang` string,
`source` string,
`os` string,
`area` string,
`model` string,
`brand` string,
`sdk_version` string,
`gmail` string,
`height_width` string,
`app_time` string,
`network` string,
`lng` string,
`lat` string,
`action` string,
`loading_time` string,
`loading_way` string,
`extend1` string,
`extend2` string,
`type` string,
`type1` string,
`server_time` string)
PARTITIONED BY (dt string)
stored as parquet
location '/warehouse/gmall/dwd/dwd_loading_log/'
TBLPROPERTIES('parquet.compression'='lzo');

导入数据

sql

insert overwrite table dwd_loading_log PARTITION (dt='2020-03-10')
select
mid_id,
user_id,
version_code,
version_name,
lang,
source,
os,
area,
model,
brand,
sdk_version,
gmail,
height_width,
app_time,
network,
lng,
lat,
get_json_object(event_json,'$.kv.action') action,
get_json_object(event_json,'$.kv.loading_time') loading_time,
get_json_object(event_json,'$.kv.loading_way') loading_way,
get_json_object(event_json,'$.kv.extend1') extend1,
get_json_object(event_json,'$.kv.extend2') extend2,
get_json_object(event_json,'$.kv.type') type,
get_json_object(event_json,'$.kv.type1') type1,
server_time
from dwd_base_event_log
where dt='2020-03-10' and event_name='loading';

4.10 广告表

建表语句

sql

drop table if exists dwd_ad_log;
CREATE EXTERNAL TABLE dwd_ad_log(
`mid_id` string,
`user_id` string,
`version_code` string,
`version_name` string,
`lang` string,
`source` string,
`os` string,
`area` string,
`model` string,
`brand` string,
`sdk_version` string,
`gmail` string,
`height_width` string,
`app_time` string,
`network` string,
`lng` string,
`lat` string,
`entry` string,
`action` string,
`contentType` string,
`displayMills` string,
`itemId` string,
`activityId` string,
`server_time` string)
PARTITIONED BY (dt string)
stored as parquet
location '/warehouse/gmall/dwd/dwd_ad_log/'
TBLPROPERTIES('parquet.compression'='lzo');

导入数据

sql

select
mid_id,
user_id,
version_code,
version_name,
lang,
source,
os,
area,
model,
brand,
sdk_version,
gmail,
height_width,
app_time,
network,
lng,
lat,
get_json_object(event_json,'$.kv.entry') entry,
get_json_object(event_json,'$.kv.action') action,
get_json_object(event_json,'$.kv.contentType') contentType,
get_json_object(event_json,'$.kv.displayMills') displayMills,
get_json_object(event_json,'$.kv.itemId') itemId,
get_json_object(event_json,'$.kv.activityId') activityId,
server_time
from dwd_base_event_log
where dt='2020-03-10' and event_name='ad';

4.12 消息通知表

建表语句

sql

drop table if exists dwd_notification_log;
CREATE EXTERNAL TABLE dwd_notification_log(
`mid_id` string,
`user_id` string,
`version_code` string,
`version_name` string,
`lang` string,
`source` string,
`os` string,
`area` string,
`model` string,
`brand` string,
`sdk_version` string,
`gmail` string,
`height_width` string,
`app_time` string,
`network` string,
`lng` string,
`lat` string,
`action` string,
`noti_type` string,
`ap_time` string,
`content` string,
`server_time` string
)
PARTITIONED BY (dt string)
stored as parquet
location '/warehouse/gmall/dwd/dwd_notification_log/'
TBLPROPERTIES('parquet.compression'='lzo');

导入数据

sql

insert overwrite table dwd_notification_log PARTITION (dt='2020-03-10')
select
mid_id,
user_id,
version_code,
version_name,
lang,
source,
os,
area,
model,
brand,
sdk_version,
gmail,
height_width,
app_time,
network,
lng,
lat,
get_json_object(event_json,'$.kv.action') action,
get_json_object(event_json,'$.kv.noti_type') noti_type,
get_json_object(event_json,'$.kv.ap_time') ap_time,
get_json_object(event_json,'$.kv.content') content,
server_time
from dwd_base_event_log
where dt='2020-03-10' and event_name='notification';

4.13 用户后台活跃表

建表语句

sql

drop table if exists dwd_active_background_log;
CREATE EXTERNAL TABLE dwd_active_background_log(
`mid_id` string,
`user_id` string,
`version_code` string,
`version_name` string,
`lang` string,
`source` string,
`os` string,
`area` string,
`model` string,
`brand` string,
`sdk_version` string,
`gmail` string,
`height_width` string,
`app_time` string,
`network` string,
`lng` string,
`lat` string,
`active_source` string,
`server_time` string
)
PARTITIONED BY (dt string)
stored as parquet
location '/warehouse/gmall/dwd/dwd_background_log/'
TBLPROPERTIES('parquet.compression'='lzo');

导入数据

sql

insert overwrite table dwd_active_background_log PARTITION
(dt='2020-03-10')
select
mid_id,
user_id,
version_code,
version_name,
lang,
source,
os,
area,
model,
brand,
sdk_version,
gmail,
height_width,
app_time,
network,
lng,
lat,
get_json_object(event_json,'$.kv.active_source') active_source,
server_time
from dwd_base_event_log
where dt='2020-03-10' and event_name='active_background';

4.14 评论表

建表语句

sql

drop table if exists dwd_comment_log;
CREATE EXTERNAL TABLE dwd_comment_log(
`mid_id` string,
`user_id` string,
`version_code` string,
`version_name` string,
`lang` string,
`source` string,
`os` string,
`area` string,
`model` string,
`brand` string,
`sdk_version` string,
`gmail` string,
`height_width` string,
`app_time` string,
`network` string,
`lng` string,
`lat` string,
`comment_id` int,
`userid` int,
`p_comment_id` int,
`content` string,
`addtime` string,
`other_id` int,
`praise_count` int,
`reply_count` int,
`server_time` string
)
PARTITIONED BY (dt string)
stored as parquet
location '/warehouse/gmall/dwd/dwd_comment_log/'
TBLPROPERTIES('parquet.compression'='lzo');

导入数据

sql

insert overwrite table dwd_comment_log PARTITION (dt='2020-03-10')
select
mid_id,
user_id,
version_code,
version_name,
lang,
source,
os,
area,
model,
brand,
sdk_version,
gmail,
height_width,
app_time,
network,
lng,
lat,
get_json_object(event_json,'$.kv.comment_id') comment_id,
get_json_object(event_json,'$.kv.userid') userid,
get_json_object(event_json,'$.kv.p_comment_id') p_comment_id,
get_json_object(event_json,'$.kv.content') content,
get_json_object(event_json,'$.kv.addtime') addtime,
get_json_object(event_json,'$.kv.other_id') other_id,
get_json_object(event_json,'$.kv.praise_count') praise_count,
get_json_object(event_json,'$.kv.reply_count') reply_count,
server_time
from dwd_base_event_log
where dt='2020-03-10' and event_name='comment';

4.15 收藏表

建表语句

sql

drop table if exists dwd_favorites_log;
CREATE EXTERNAL TABLE dwd_favorites_log(
`mid_id` string,
`user_id` string,
`version_code` string,
`version_name` string,
`lang` string,
`source` string,
`os` string,
`area` string,
`model` string,
`brand` string,
`sdk_version` string,
`gmail` string,
`height_width` string,
`app_time` string,
`network` string,
`lng` string,
`lat` string,
`id` int,
`course_id` int,
`userid` int,
`add_time` string,
`server_time` string
)
PARTITIONED BY (dt string)
stored as parquet
location '/warehouse/gmall/dwd/dwd_favorites_log/'
TBLPROPERTIES('parquet.compression'='lzo');

导入数据

sql

insert overwrite table dwd_favorites_log PARTITION (dt='2020-03-10')
select
mid_id,
user_id,
version_code,
version_name,
lang,
source,
os,
area,
model,
brand,
sdk_version,
gmail,
height_width,
app_time,
network,
lng,
lat,
get_json_object(event_json,'$.kv.id') id,
get_json_object(event_json,'$.kv.course_id') course_id,
get_json_object(event_json,'$.kv.userid') userid,
get_json_object(event_json,'$.kv.add_time') add_time,
server_time
from dwd_base_event_log
where dt='2020-03-10' and event_name='favorites';

4.16 点赞表

建表语句

sql

drop table if exists dwd_praise_log;
CREATE EXTERNAL TABLE dwd_praise_log(
`mid_id` string,
`user_id` string,
`version_code` string,
`version_name` string,
`lang` string,
`source` string,
`os` string,
`area` string,
`model` string,
`brand` string,
`sdk_version` string,
`gmail` string,
`height_width` string,
`app_time` string,
`network` string,
`lng` string,
`lat` string,
`id` string,
`userid` string,
`target_id` string,
`type` string,
`add_time` string,
`server_time` string
)
PARTITIONED BY (dt string)
stored as parquet
location '/warehouse/gmall/dwd/dwd_praise_log/'
TBLPROPERTIES('parquet.compression'='lzo');

导入数据

sql

insert overwrite table dwd_praise_log PARTITION (dt='2020-03-10')
select
mid_id,
user_id,
version_code,
version_name,
lang,
source,
os,
area,
model,
brand,
sdk_version,
gmail,
height_width,
app_time,
network,
lng,
lat,
get_json_object(event_json,'$.kv.id') id,
get_json_object(event_json,'$.kv.userid') userid,
get_json_object(event_json,'$.kv.target_id') target_id,
get_json_object(event_json,'$.kv.type') type,
get_json_object(event_json,'$.kv.add_time') add_time,
server_time
from dwd_base_event_log
where dt='2020-03-10' and event_name='praise';

4.17 错误日志表

建表语句

sql

drop table if exists dwd_error_log;
CREATE EXTERNAL TABLE dwd_error_log(
`mid_id` string,
`user_id` string,
`version_code` string,
`version_name` string,
`lang` string,
`source` string,
`os` string,
`area` string,
`model` string,
`brand` string,
`sdk_version` string,
`gmail` string,
`height_width` string,
`app_time` string,
`network` string,
`lng` string,
`lat` string,
`errorBrief` string,
`errorDetail` string,
`server_time` string)
PARTITIONED BY (dt string)
stored as parquet
location '/warehouse/gmall/dwd/dwd_error_log/'
TBLPROPERTIES('parquet.compression'='lzo');

导入数据

sql

insert overwrite table dwd_error_log PARTITION (dt='2020-03-10')
select
mid_id,
user_id,
version_code,
version_name,
lang,
source,
os,
area,
model,
brand,
sdk_version,
gmail,
height_width,
app_time,
network,
lng,
lat,
get_json_object(event_json,'$.kv.errorBrief') errorBrief,
get_json_object(event_json,'$.kv.errorDetail') errorDetail,
server_time
from dwd_base_event_log
where dt='2020-03-10' and event_name='error';

4.18 DWD层事件表加载数据脚本

在hadoop102的/home/jack/bin目录下创建脚本

[jack@hadoop102 bin]$ vim ods_to_dwd_event_log.sh
## 内容和之前大体相同

增加脚本执行权限

chmod 777 ods_to_dwd_event_log.sh

5. DWD层(业务数据)

Alt text

5.1 商品维度表(全量表)

建表脚本

sql

DROP TABLE IF EXISTS `dwd_dim_sku_info`;
CREATE EXTERNAL TABLE `dwd_dim_sku_info` (
`id` string COMMENT '商品 id',
`spu_id` string COMMENT 'spuid',
`price` double COMMENT '商品价格',
`sku_name` string COMMENT '商品名称',
`sku_desc` string COMMENT '商品描述',
`weight` double COMMENT '重量',
`tm_id` string COMMENT '品牌 id',
`tm_name` string COMMENT '品牌名称',
`category3_id` string COMMENT '三级分类 id',
`category2_id` string COMMENT '二级分类 id',
`category1_id` string COMMENT '一级分类 id',
`category3_name` string COMMENT '三级分类名称',
`category2_name` string COMMENT '二级分类名称',
`category1_name` string COMMENT '一级分类名称',
`spu_name` string COMMENT 'spu 名称',
`create_time` string COMMENT '创建时间'
)
COMMENT '商品维度表'
PARTITIONED BY (`dt` string)
stored as parquet
location '/warehouse/gmall/dwd/dwd_dim_sku_info'
tblproperties ("parquet.compression"="lzo");

导入数据

sql

insert overwrite table dwd_dim_sku_info partition(dt='2020-03-10')
select
sku.id,
sku.spu_id,
sku.price,
sku.sku_name,
sku.sku_desc,
sku.weight,
sku.tm_id,
ob.tm_name,
sku.category3_id,
c2.id category2_id,
c1.id category1_id,
c3.name category3_name,
c2.name category2_name,
c1.name category1_name,
spu.spu_name,
sku.create_time
from
(
select * from ods_sku_info where dt='2020-03-10'
)sku
join
(
select * from ods_base_trademark where dt='2020-03-10'
)ob on sku.tm_id=ob.tm_id
join
(
select * from ods_spu_info where dt='2020-03-10'
)spu on spu.id = sku.spu_id
join
(
select * from ods_base_category3 where dt='2020-03-10'
)c3 on sku.category3_id=c3.id
join
(
select * from ods_base_category2 where dt='2020-03-10'
)c2 on c3.category2_id=c2.id
join
(
select * from ods_base_category1 where dt='2020-03-10'
)c1 on c2.category1_id=c1.id;

5.2 优惠券信息表(全量)

建表脚本


drop table if exists dwd_dim_coupon_info;
create external table dwd_dim_coupon_info(
`id` string COMMENT '购物券编号',
`coupon_name` string COMMENT '购物券名称',
`coupon_type` string COMMENT '购物券类型 1 现金券 2 折扣券 3 满减券 4 满件打折券',
`condition_amount` string COMMENT '满额数',
`condition_num` string COMMENT '满件数',
`activity_id` string COMMENT '活动编号',
`benefit_amount` string COMMENT '减金额',
`benefit_discount` string COMMENT '折扣',
`create_time` string COMMENT '创建时间',
`range_type` string COMMENT '范围类型 1、商品 2、品类 3、品牌',
`spu_id` string COMMENT '商品 id',
`tm_id` string COMMENT '品牌 id',
`category3_id` string COMMENT '品类 id',
`limit_num` string COMMENT '最多领用次数',
`operate_time` string COMMENT '修改时间',
`expire_time` string COMMENT '过期时间'
) COMMENT '优惠券信息表'
PARTITIONED BY (`dt` string)
row format delimited fields terminated by '\t'
stored as parquet
location '/warehouse/gmall/dwd/dwd_dim_coupon_info/'
tblproperties ("parquet.compression"="lzo");

导入数据

sql

insert overwrite table dwd_dim_coupon_info partition(dt='2020-03-10')
select
id,
coupon_name,
coupon_type,
condition_amount,
condition_num,
activity_id,
benefit_amount,
benefit_discount,
create_time,
range_type,
spu_id,
tm_id,
category3_id,
limit_num,
operate_time,
expire_time
from ods_coupon_info
where dt='2020-03-10';

5.3 活动维度表(全量)

建表脚本

drop table if exists dwd_dim_activity_info;
create external table dwd_dim_activity_info(
`id` string COMMENT '编号',
`activity_name` string COMMENT '活动名称',
`activity_type` string COMMENT '活动类型',
`condition_amount` string COMMENT '满减金额',
`condition_num` string COMMENT '满减件数',
`benefit_amount` string COMMENT '优惠金额',
`benefit_discount` string COMMENT '优惠折扣',
`benefit_level` string COMMENT '优惠级别',
`start_time` string COMMENT '开始时间',
`end_time` string COMMENT '结束时间',
`create_time` string COMMENT '创建时间'
) COMMENT '活动信息表'
PARTITIONED BY (`dt` string)
row format delimited fields terminated by '\t'
stored as parquet
location '/warehouse/gmall/dwd/dwd_dim_activity_info/';
tblproperties ("parquet.compression"="lzo");

导入数据

sql

insert overwrite table dwd_dim_activity_info partition(dt='2020-03-10')
SELECT
info.id,
info.activity_name,
info.activity_type,
rule.condition_amount,
rule.condition_num,
rule.benefit_amount,
rule.benefit_discount,
rule.benefit_level,
info.start_time,
info.end_time,
info.create_time
from
(
select * from ods_activity_info where dt='2020-03-10'
)info
left join
(
select * from ods_activity_rule where dt='2020-03-10'
)rule on info.id = rule.activity_id;

5.3 地区维度表(特殊)

地区维度表不是分区表,下面是建表脚本：

sql

DROP TABLE IF EXISTS `dwd_dim_base_province`;
CREATE EXTERNAL TABLE `dwd_dim_base_province` (
`id` string COMMENT 'id',
`province_name` string COMMENT '省市名称',
`area_code` string COMMENT '地区编码',
`iso_code` string COMMENT 'ISO 编码',
`region_id` string COMMENT '地区 id',
`region_name` string COMMENT '地区名称'
)
COMMENT '地区省市表'
stored as parquet
location '/warehouse/gmall/dwd/dwd_dim_base_province/'
tblproperties ("parquet.compression"="lzo");

导入数据

sql

insert overwrite table dwd_dim_base_province
select
bp.id,
bp.name,
bp.area_code,
bp.iso_code,
bp.region_id,
br.region_name
from ods_base_province bp
join ods_base_region br
on bp.region_id=br.id;

5.4 时间维度表(特殊)

sql

DROP TABLE IF EXISTS `dwd_dim_date_info`;
CREATE EXTERNAL TABLE `dwd_dim_date_info`(
`date_id` string COMMENT '日',
`week_id` int COMMENT '周',
`week_day` int COMMENT '周的第几天',
`day` int COMMENT '每月的第几天',
`month` int COMMENT '第几月',
`quarter` int COMMENT '第几季度',
`year` int COMMENT '年',
`is_workday` int COMMENT '是否是周末',
`holiday_id` int COMMENT '是否是节假日'
)
row format delimited fields terminated by '\t'
stored as textfile
location '/warehouse/gmall/dwd/dwd_dim_date_info/';

把date_info.txt文件上传到hadoop102的/opt/software/db_log/路径
数据装载

sql

load data local inpath '/opt/software/date_info.txt' into table dwd_dim_date_info;

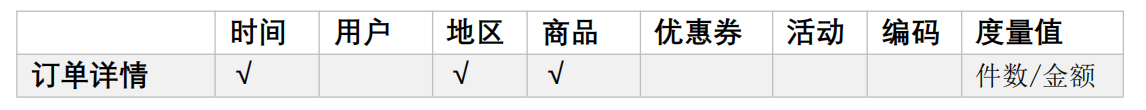

5.5 订单明细事实表(事务型快照事实表)

Alt text

建表脚本

sql

drop table if exists dwd_fact_order_detail;
create external table dwd_fact_order_detail (
`id` string COMMENT '订单编号',
`order_id` string COMMENT '订单号',
`user_id` string COMMENT '用户 id',
`sku_id` string COMMENT 'sku 商品 id',
`sku_name` string COMMENT '商品名称',
`order_price` decimal(10,2) COMMENT '商品价格',
`sku_num` bigint COMMENT '商品数量',
`create_time` string COMMENT '创建时间',
`province_id` string COMMENT '省份 ID',
`total_amount` decimal(20,2) COMMENT '订单总金额'
)
PARTITIONED BY (`dt` string)
stored as parquet
location '/warehouse/gmall/dwd/dwd_fact_order_detail/'
tblproperties ("parquet.compression"="lzo");

sql

insert overwrite table dwd_fact_order_detail partition(dt='2020-03-10')
select
od.id,
od.order_id,
od.user_id,
od.sku_id,
od.sku_name,
od.order_price,
od.sku_num,
od.create_time,
oi.province_id,
od.order_price*od.sku_num
from
(
select * from ods_order_detail where dt='2020-03-10'
) od
join
(
select * from ods_order_info where dt='2020-03-10'
) oi
on od.order_id=oi.id;

5.6 支付事实表(事务型快照事实表)

Alt text

建表语句

sql

drop table if exists dwd_fact_payment_info;
create external table dwd_fact_payment_info (
`id` string COMMENT '',
`out_trade_no` string COMMENT '对外业务编号',
`order_id` string COMMENT '订单编号',
`user_id` string COMMENT '用户编号',
`alipay_trade_no` string COMMENT '支付宝交易流水编号',
`payment_amount` decimal(16,2) COMMENT '支付金额',
`subject` string COMMENT '交易内容',
`payment_type` string COMMENT '支付类型',
`payment_time` string COMMENT '支付时间',
`province_id` string COMMENT '省份 ID'
)
PARTITIONED BY (`dt` string)
stored as parquet
location '/warehouse/gmall/dwd/dwd_fact_payment_info/'
tblproperties ("parquet.compression"="lzo");

数据装载

sql

insert overwrite table dwd_fact_payment_info partition(dt='2020-03-10')
select
pi.id,
pi.out_trade_no,
pi.order_id,
pi.user_id,
pi.alipay_trade_no,
pi.total_amount,
pi.subject,
pi.payment_type,
pi.payment_time,
oi.province_id
from
(
select * from ods_payment_info where dt='2020-03-10'
)pi
join
(
select id, province_id from ods_order_info where dt='2020-03-10'
)oi
on pi.order_id = oi.id;

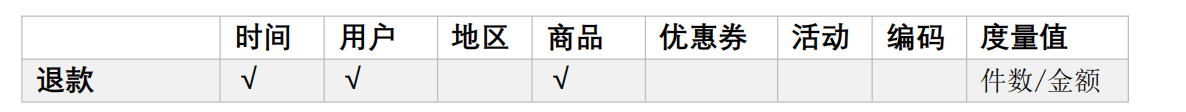

5.7 退款事实表(事务型快照事实表)

Alt text

建表语句

drop table if exists dwd_fact_order_refund_info;
create external table dwd_fact_order_refund_info(
`id` string COMMENT '编号',
`user_id` string COMMENT '用户 ID',
`order_id` string COMMENT '订单 ID',
`sku_id` string COMMENT '商品 ID',
`refund_type` string COMMENT '退款类型',
`refund_num` bigint COMMENT '退款件数',
`refund_amount` decimal(16,2) COMMENT '退款金额',
`refund_reason_type` string COMMENT '退款原因类型',
`create_time` string COMMENT '退款时间'
) COMMENT '退款事实表'
PARTITIONED BY (`dt` string)
row format delimited fields terminated by '\t'
location '/warehouse/gmall/dwd/dwd_fact_order_refund_info/';

数据装载

sql

insert overwrite table dwd_fact_order_refund_info partition(dt='2020-03-10')
select
id,
user_id,
order_id,
sku_id,
refund_type,
refund_num,
refund_amount,
refund_reason_type,
create_time
from ods_order_refund_info
where dt='2020-03-10';

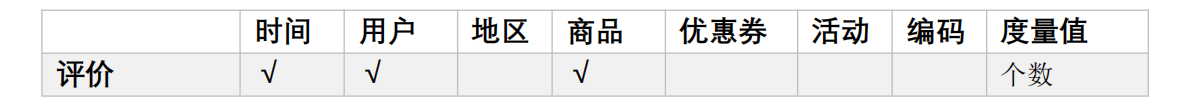

5.8 评价事实表(事务型快照事实表)

Alt text

建表脚本

sql

drop table if exists dwd_fact_comment_info;
create external table dwd_fact_comment_info(
`id` string COMMENT '编号',
`user_id` string COMMENT '用户 ID',
`sku_id` string COMMENT '商品 sku',
`spu_id` string COMMENT '商品 spu',
`order_id` string COMMENT '订单 ID',
`appraise` string COMMENT '评价',
`create_time` string COMMENT '评价时间'
) COMMENT '评价事实表'
PARTITIONED BY (`dt` string)
row format delimited fields terminated by '\t'
location '/warehouse/gmall/dwd/dwd_fact_comment_info/';

数据装载

sql

insert overwrite table dwd_fact_comment_info partition(dt='2020-03-10')
select
id,
user_id,
sku_id,
spu_id,
order_id,
appraise,
create_time
from ods_comment_info
where dt='2020-03-10';

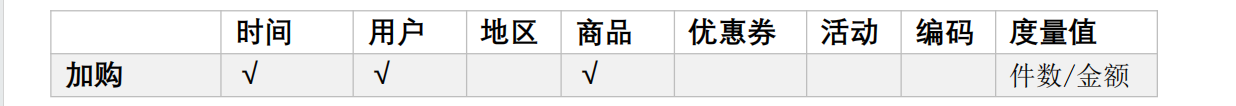

5.9 加购事实表(周期型快照事实表，每日快照)

由于购物车的数量是会发生变化，所以只导增量不合适。
每天做一次快照，导入的数据是全量，区别于事务型事实表是每天导入新增。
周期型快照事实表劣势：存储的数据量会比较大。
解决方案：周期型快照事实表存储的数据比较讲究时效性，时间太久了的意义不大，可以删除以前的数据。 Alt text

建表脚本

drop table if exists dwd_fact_cart_info;
create external table dwd_fact_cart_info(
`id` string COMMENT '编号',
`user_id` string COMMENT '用户 id',
`sku_id` string COMMENT 'skuid',
`cart_price` string COMMENT '放入购物车时价格',
`sku_num` string COMMENT '数量',
`sku_name` string COMMENT 'sku 名称 (冗余)',
`create_time` string COMMENT '创建时间',
`operate_time` string COMMENT '修改时间',
`is_ordered` string COMMENT '是否已经下单。1 为已下单;0 为未下单',
`order_time` string COMMENT '下单时间'
) COMMENT '加购事实表'
PARTITIONED BY (`dt` string)
row format delimited fields terminated by '\t'
location '/warehouse/gmall/dwd/dwd_fact_cart_info/';

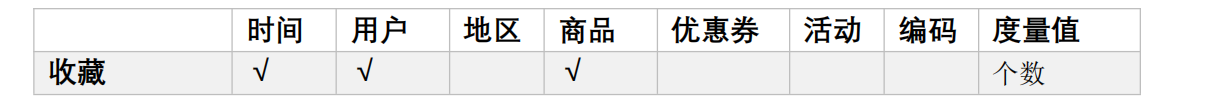

5.10 收藏事实表(周期型快照事实表，每日快照)

收藏的标记，是否取消，会发生变化，做增量不合适。
每天做一次快照，导入的数据是全量，区别于事务型事实表是每天导入新增。
Alt text

创建脚本

sql

drop table if exists dwd_fact_favor_info;
create external table dwd_fact_favor_info(
`id` string COMMENT '编号',
`user_id` string COMMENT '用户 id',
`sku_id` string COMMENT 'skuid',
`spu_id` string COMMENT 'spuid',
`is_cancel` string COMMENT '是否取消',
`create_time` string COMMENT '收藏时间',
`cancel_time` string COMMENT '取消时间'
) COMMENT '收藏事实表'
PARTITIONED BY (`dt` string)
row format delimited fields terminated by '\t'
location '/warehouse/gmall/dwd/dwd_fact_favor_info/';

数据导入

sql

insert overwrite table dwd_fact_favor_info partition(dt='2020-03-10')
select
id,
user_id,
sku_id,
spu_id,
is_cancel,
create_time,
cancel_time
from ods_favor_info
where dt='2020-03-10';

5.11 优惠券领用事实表(累积型快照事实表)

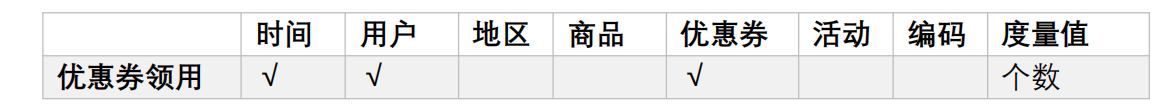

Alt text 优惠券的生命周期：领取优惠券-》用优惠券下单-》优惠券参与支付。
累积型快照事实表使用：统计优惠券领取次数、优惠券下单次数、优惠券参与支付次数。

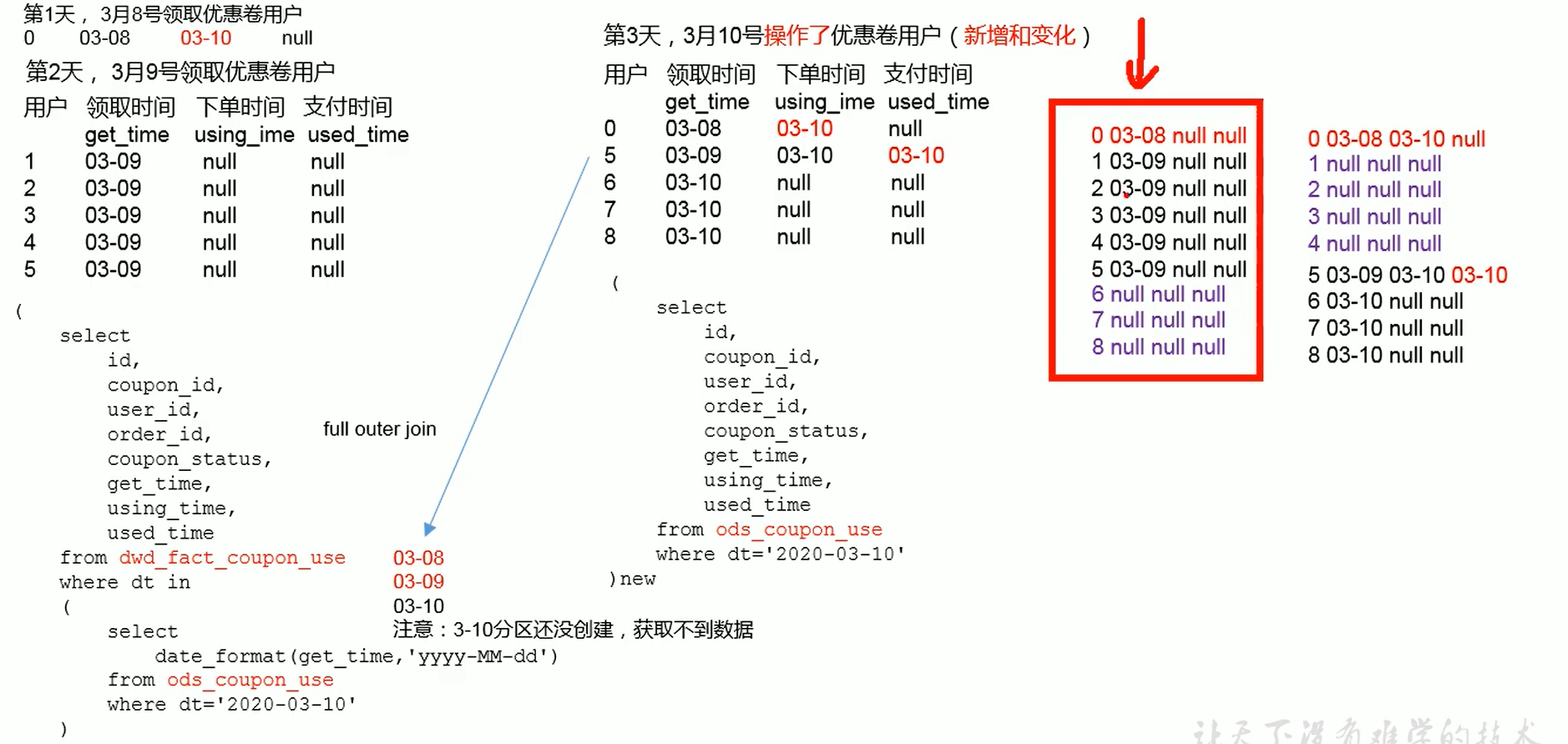

dt是按照优惠券领用时间get_time作为分区, 另外ods_coupon_use是从mysql每日按照get_time|using_time|used_time来匹配抽取过来。
Alt text

建表脚本

sql

drop table if exists dwd_fact_coupon_use;
create external table dwd_fact_coupon_use(
`id` string COMMENT '编号',
`coupon_id` string COMMENT '优惠券 ID',
`user_id` string COMMENT 'userid',
`order_id` string COMMENT '订单 id',
`coupon_status` string COMMENT '优惠券状态',
`get_time` string COMMENT '领取时间',
`using_time` string COMMENT '使用时间(下单)',
`used_time` string COMMENT '使用时间(支付)'
) COMMENT '优惠券领用事实表'
PARTITIONED BY (`dt` string)
row format delimited fields terminated by '\t'
location '/warehouse/gmall/dwd/dwd_fact_coupon_use/';

数据装载,利用动态分区

sql

set hive.exec.dynamic.partition.mode=nonstrict;
insert overwrite table dwd_fact_coupon_use partition(dt)
select
if(new.id is null,old.id,new.id),
if(new.coupon_id is null,old.coupon_id,new.coupon_id),
if(new.user_id is null,old.user_id,new.user_id),
if(new.order_id is null,old.order_id,new.order_id),
if(new.coupon_status is null,old.coupon_status,new.coupon_status),
if(new.get_time is null,old.get_time,new.get_time),
if(new.using_time is null,old.using_time,new.using_time),
if(new.used_time is null,old.used_time,new.used_time),
date_format(if(new.get_time is null,old.get_time,new.get_time),'yyyy-MM-dd')
from
(
select
	id,
	coupon_id,
	user_id,
	order_id,
	coupon_status,
	get_time,
	using_time,
	used_time
from dwd_fact_coupon_use
where dt in
(
	select
		date_format(get_time,'yyyy-MM-dd')
		from ods_coupon_use
	where dt='2020-03-10'
)
)old
full outer join
(
	select
		id,
		coupon_id,
		user_id,
		order_id,
		coupon_status,
		get_time,
		using_time,
		used_time
	from ods_coupon_use
	where dt='2020-03-10'
)new
on old.id=new.id;

5.12 订单事实表(累积型快照事实表)

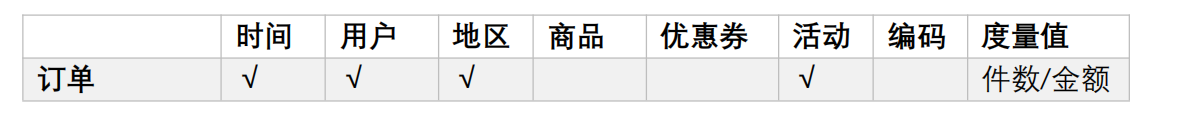

Alt text 订单生命周期：创建时间=》支付时间=》取消时间=》完成时间=》退款时间=》退款完成时间。
由于ODS层订单表只有创建时间和操作时间两个状态，不能表达所有时间含义，所以需要关联订单状态表。订单事实表里面增加了活动id，所以需要关联活动订单表。

建表脚本

sql

drop table if exists dwd_fact_order_info;
create external table dwd_fact_order_info (
`id` string COMMENT '订单编号',
`order_status` string COMMENT '订单状态',
`user_id` string COMMENT '用户 id',
`out_trade_no` string COMMENT '支付流水号',
`create_time` string COMMENT '创建时间(未支付状态)',
`payment_time` string COMMENT '支付时间(已支付状态)',
`cancel_time` string COMMENT '取消时间(已取消状态)',
`finish_time` string COMMENT '完成时间(已完成状态)',
`refund_time` string COMMENT '退款时间(退款中状态)',
`refund_finish_time` string COMMENT '退款完成时间(退款完成状态)',
`province_id` string COMMENT '省份 ID',
`activity_id` string COMMENT '活动 ID',
`original_total_amount` string COMMENT '原价金额',
`benefit_reduce_amount` string COMMENT '优惠金额',
`feight_fee` string COMMENT '运费',
`final_total_amount` decimal(10,2) COMMENT '订单金额'
)
PARTITIONED BY (`dt` string)
stored as parquet
location '/warehouse/gmall/dwd/dwd_fact_order_info/'
tblproperties ("parquet.compression"="lzo");

数据装载, 累计型事实表都是拿业务起始时间作为分区值，比如这里使用create_time。

sql

set hive.exec.dynamic.partition.mode=nonstrict;
insert overwrite table dwd_fact_order_info partition(dt)
select
if(new.id is null,old.id,new.id),
if(new.order_status is null,old.order_status,new.order_status),
if(new.user_id is null,old.user_id,new.user_id),
if(new.out_trade_no is null,old.out_trade_no,new.out_trade_no),
if(new.tms['1001'] is null,old.create_time,new.tms['1001']),--1001 对应未支付状态
if(new.tms['1002'] is null,old.payment_time,new.tms['1002']),
if(new.tms['1003'] is null,old.cancel_time,new.tms['1003']),
if(new.tms['1004'] is null,old.finish_time,new.tms['1004']),
if(new.tms['1005'] is null,old.refund_time,new.tms['1005']),
if(new.tms['1006'] is null,old.refund_finish_time,new.tms['1006']),
if(new.province_id is null,old.province_id,new.province_id),
if(new.activity_id is null,old.activity_id,new.activity_id),
if(new.original_total_amount is
null,old.original_total_amount,new.original_total_amount),
if(new.benefit_reduce_amount is
null,old.benefit_reduce_amount,new.benefit_reduce_amount),
if(new.feight_fee is null,old.feight_fee,new.feight_fee),
if(new.final_total_amount is null,old.final_total_amount,new.final_total_amount),
date_format(if(new.tms['1001'] is
null,old.create_time,new.tms['1001']),'yyyy-MM-dd')
from
(
select
id,
order_status,
user_id,
out_trade_no,
create_time,
payment_time,
cancel_time,
finish_time,
refund_time,
refund_finish_time,
province_id,
activity_id,
original_total_amount,
benefit_reduce_amount,
feight_fee,
final_total_amount
from dwd_fact_order_info
where dt
in
(
select
date_format(create_time,'yyyy-MM-dd')
from ods_order_info
where dt='2020-03-10'
)
)old
full outer join
(
select
    info.id,
    info.order_status,
    info.user_id,
    info.out_trade_no,
    info.province_id,
    act.activity_id,
    log.tms,
    info.original_total_amount,
    info.benefit_reduce_amount,
    info.feight_fee,
    info.final_total_amount
from
(
select
    order_id,
    str_to_map(concat_ws(',',collect_set(concat(order_status,'=',operate_time))),',','=')
tms
from ods_order_status_log
where dt='2020-03-10'
group by order_id
)log
join
(
select * from ods_order_info where dt='2020-03-10'
)info
on log.order_id=info.id
left join
(
select * from ods_activity_order where dt='2020-03-10'
)act
on log.order_id=act.order_id
)new
on old.id=new.id;

5.13 用户维度表(拉链表)

用户表中的数据每日既有可能新增，也有可能修改，但修改频率并不高，属于缓慢变化维度，此处采用拉链表存储用户维度数据。对于拉链表不需要分区的。

建表脚本

sql

drop table if exists dwd_dim_user_info_his;
create external table dwd_dim_user_info_his(
    `id` string COMMENT '用户id',
    `name` string COMMENT '姓名',
    `birthday` string COMMENT '生日',
    `gender` string COMMENT '性别',
    `email` string COMMENT '邮箱',
    `user_level` string COMMENT '用户等级',
    `create_time` string COMMENT '创建时间',
    `operate_time` string COMMENT '操作时间',
    `start_date`  string COMMENT '生效开始日期',
    `end_date`  string COMMENT '生效结束日期'
) COMMENT '用户拉链表'
stored as parquet
location '/warehouse/gmall/dwd/dwd_dim_user_info_his/'
tblproperties ("parquet.compression"="lzo");

-- 用户维度拉链临时表
drop table if exists dwd_dim_user_info_his_tmp;
create external table dwd_dim_user_info_his_tmp(
    `id` string COMMENT '用户id',
    `name` string COMMENT '姓名',
    `birthday` string COMMENT '生日',
    `gender` string COMMENT '性别',
    `email` string COMMENT '邮箱',
    `user_level` string COMMENT '用户等级',
    `create_time` string COMMENT '创建时间',
    `operate_time` string COMMENT '操作时间',
    `start_date`  string COMMENT '生效开始日期',
    `end_date`  string COMMENT '生效结束日期'
) COMMENT '用户拉链临时表'
stored as parquet
location '/warehouse/gmall/dwd/dwd_dim_user_info_his_tmp/'
tblproperties ("parquet.compression"="lzo");

数据加载，一共三个步骤

sql

-- 1. 初始化用户拉链表
insert overwrite table dwd_dim_user_info_his
select
    id,
    name,
    birthday,
    gender,
    email,
    user_level,
    create_time,
    operate_time,
    '2020-03-10',
    '9999-99-99'
from ods_user_info oi
where oi.dt='2020-03-10';
-- 2. 用户拉链临时表
insert overwrite table dwd_dim_user_info_his_tmp
select * from
(
    select
        id,
        name,
        birthday,
        gender,
        email,
        user_level,
        create_time,
        operate_time,
        '2020-03-11' start_date,
        '9999-99-99' end_date
    from ods_user_info where dt='2020-03-11'
    union all
    select
        uh.id,
        uh.name,
        uh.birthday,
        uh.gender,
        uh.email,
        uh.user_level,
        uh.create_time,
        uh.operate_time,
        uh.start_date,
        if(ui.id is not null  and uh.end_date='9999-99-99', date_add(ui.dt,-1), uh.end_date) end_date
    from dwd_dim_user_info_his uh left join
    (
        select
            *
        from ods_user_info
        where dt='2020-03-11'
    ) ui on uh.id=ui.id
)his
order by his.id, start_date;
-- 3. 写入用户拉链正式表
insert overwrite table dwd_dim_user_info_his select * from dwd_dim_user_info_his_tmp;

6. DWD层数据导入脚本

在/home/jack/bin目录下创建脚本ods_to_dwd_db.sh

[jack@hadoop102 bin]$ vim ods_to_dwd_db.sh
## 在脚本中填写如下内容
#!/bin/bash

APP=gmall
hive=/opt/module/hive/bin/hive

# 如果输入了日期参数，则取输入参数作为日期值；如果没有输入日期参数，则取当前时间的前一天作为日期值
if [ -n "$2" ] ;then
    do_date=$2
else
    do_date=`date -d "-1 day" +%F`
fi

sql1="
set hive.exec.dynamic.partition.mode=nonstrict;

insert overwrite table ${APP}.dwd_dim_sku_info partition(dt='$do_date')
select
    sku.id,
    sku.spu_id,
    sku.price,
    sku.sku_name,
    sku.sku_desc,
    sku.weight,
    sku.tm_id,
    ob.tm_name,
    sku.category3_id,
    c2.id category2_id,
    c1.id category1_id,
    c3.name category3_name,
    c2.name category2_name,
    c1.name category1_name,
    spu.spu_name,
    sku.create_time
from
(
    select * from ${APP}.ods_sku_info where dt='$do_date'
)sku
join
(
    select * from ${APP}.ods_base_trademark where dt='$do_date'
)ob on sku.tm_id=ob.tm_id
join
(
    select * from ${APP}.ods_spu_info where dt='$do_date'
)spu on spu.id = sku.spu_id
join
(
    select * from ${APP}.ods_base_category3 where dt='$do_date'
)c3 on sku.category3_id=c3.id
join
(
    select * from ${APP}.ods_base_category2 where dt='$do_date'
)c2 on c3.category2_id=c2.id
join
(
    select * from ${APP}.ods_base_category1 where dt='$do_date'
)c1 on c2.category1_id=c1.id;

insert overwrite table ${APP}.dwd_dim_coupon_info partition(dt='$do_date')
select
    id,
    coupon_name,
    coupon_type,
    condition_amount,
    condition_num,
    activity_id,
    benefit_amount,
    benefit_discount,
    create_time,
    range_type,
    spu_id,
    tm_id,
    category3_id,
    limit_num,
    operate_time,
    expire_time
from ${APP}.ods_coupon_info
where dt='$do_date';

insert overwrite table ${APP}.dwd_dim_activity_info partition(dt='$do_date')
select
    info.id,
    info.activity_name,
    info.activity_type,
    rule.condition_amount,
    rule.condition_num,
    rule.benefit_amount,
    rule.benefit_discount,
    rule.benefit_level,
    info.start_time,
    info.end_time,
    info.create_time
from
(
    select * from ${APP}.ods_activity_info where dt='$do_date'
)info
left join
(
    select * from ${APP}.ods_activity_rule where dt='$do_date'
)rule on info.id = rule.activity_id;

insert overwrite table ${APP}.dwd_fact_order_detail partition(dt='$do_date')
select
    od.id,
    od.order_id,
    od.user_id,
    od.sku_id,
    od.sku_name,
    od.order_price,
    od.sku_num,
    od.create_time,
    oi.province_id,
    od.order_price*od.sku_num
from
(
    select * from ${APP}.ods_order_detail where dt='$do_date'
) od
join
(
    select * from ${APP}.ods_order_info where dt='$do_date'
) oi
on od.order_id=oi.id;

insert overwrite table ${APP}.dwd_fact_payment_info partition(dt='$do_date')
select
    pi.id,
    pi.out_trade_no,
    pi.order_id,
    pi.user_id,
    pi.alipay_trade_no,
    pi.total_amount,
    pi.subject,
    pi.payment_type,
    pi.payment_time,
    oi.province_id
from
(
    select * from ${APP}.ods_payment_info where dt='$do_date'
)pi
join
(
    select id, province_id from ${APP}.ods_order_info where dt='$do_date'
)oi
on pi.order_id = oi.id;

insert overwrite table ${APP}.dwd_fact_order_refund_info partition(dt='$do_
date')
select
    id,
    user_id,
    order_id,
    sku_id,
    refund_type,
    refund_num,
    refund_amount,
    refund_reason_type,
    create_time
from ${APP}.ods_order_refund_info
where dt='$do_date';

insert overwrite table ${APP}.dwd_fact_comment_info partition(dt='$do_date')
select
    id,
    user_id,
    sku_id,
    spu_id,
    order_id,
    appraise,
    create_time
from ${APP}.ods_comment_info
where dt='$do_date';

insert overwrite table ${APP}.dwd_fact_cart_info partition(dt='$do_date')
select
    id,
    user_id,
    sku_id,
    cart_price,
    sku_num,
    sku_name,
    create_time,
    operate_time,
    is_ordered,
    order_time
from ${APP}.ods_cart_info
where dt='$do_date';

insert overwrite table ${APP}.dwd_fact_favor_info partition(dt='$do_date')
select
    id,
    user_id,
    sku_id,
    spu_id,
    is_cancel,
    create_time,
    cancel_time
from ${APP}.ods_favor_info
where dt='$do_date';

insert overwrite table ${APP}.dwd_fact_coupon_use partition(dt)
select
    if(new.id is null,old.id,new.id),
    if(new.coupon_id is null,old.coupon_id,new.coupon_id),
    if(new.user_id is null,old.user_id,new.user_id),
    if(new.order_id is null,old.order_id,new.order_id),
    if(new.coupon_status is null,old.coupon_status,new.coupon_status),
    if(new.get_time is null,old.get_time,new.get_time),
    if(new.using_time is null,old.using_time,new.using_time),
    if(new.used_time is null,old.used_time,new.used_time),
    date_format(if(new.get_time is null,old.get_time,new.get_time),'yyyy-MM-dd')
from
(
    select
        id,
        coupon_id,
        user_id,
        order_id,
        coupon_status,
        get_time,
        using_time,
        used_time
    from ${APP}.dwd_fact_coupon_use
    where dt in
    (
        select
            date_format(get_time,'yyyy-MM-dd')
        from ${APP}.ods_coupon_use
        where dt='$do_date'
    )
)old
full outer join
(
    select
        id,
        coupon_id,
        user_id,
        order_id,
        coupon_status,
        get_time,
        using_time,
        used_time
    from ${APP}.ods_coupon_use
    where dt='$do_date'
)new
on old.id=new.id;


insert overwrite table ${APP}.dwd_fact_order_info partition(dt)
select
    if(new.id is null,old.id,new.id),
    if(new.order_status is null,old.order_status,new.order_status),
    if(new.user_id is null,old.user_id,new.user_id),
    if(new.out_trade_no is null,old.out_trade_no,new.out_trade_no),
    if(new.tms['1001'] is null,old.create_time,new.tms['1001']),--1001对应未支付状态
    if(new.tms['1002'] is null,old.payment_time,new.tms['1002']),
    if(new.tms['1003'] is null,old.cancel_time,new.tms['1003']),
    if(new.tms['1004'] is null,old.finish_time,new.tms['1004']),
    if(new.tms['1005'] is null,old.refund_time,new.tms['1005']),
    if(new.tms['1006'] is null,old.refund_finish_time,new.tms['1006']),
    if(new.province_id is null,old.province_id,new.province_id),
    if(new.activity_id is null,old.activity_id,new.activity_id),
    if(new.original_total_amount is null,old.original_total_amount,new.original_
total_amount),
    if(new.benefit_reduce_amount is null,old.benefit_reduce_amount,new.benefit_
reduce_amount),
    if(new.feight_fee is null,old.feight_fee,new.feight_fee),
    if(new.final_total_amount is null,old.final_total_amount,new.final_total_
amount),
    date_format(if(new.tms['1001'] is null,old.create_time,new.tms['1001']),
'yyyy-MM-dd')
from
(
    select
        id,
        order_status,
        user_id,
        out_trade_no,
        create_time,
        payment_time,
        cancel_time,
        finish_time,
        refund_time,
        refund_finish_time,
        province_id,
        activity_id,
        original_total_amount,
        benefit_reduce_amount,
        feight_fee,
        final_total_amount
    from ${APP}.dwd_fact_order_info
    where dt
    in
    (
        select
          date_format(create_time,'yyyy-MM-dd')
        from ${APP}.ods_order_info
        where dt='$do_date'
    )
)old
full outer join
(
    select
        info.id,
        info.order_status,
        info.user_id,
        info.out_trade_no,
        info.province_id,
        act.activity_id,
        log.tms,
        info.original_total_amount,
        info.benefit_reduce_amount,
        info.feight_fee,
        info.final_total_amount
    from
    (
        select
            order_id,
            str_to_map(concat_ws(',',collect_set(concat(order_status,'=',operate_
time))),',','=') tms
        from ${APP}.ods_order_status_log
        where dt='$do_date'
        group by order_id
    )log
    join
    (
        select * from ${APP}.ods_order_info where dt='$do_date'
    )info
    on log.order_id=info.id
    left join
    (
        select * from ${APP}.ods_activity_order where dt='$do_date'
    )act
    on log.order_id=act.order_id
)new
on old.id=new.id;


insert overwrite table ${APP}.dwd_dim_user_info_his_tmp
select * from
(
    select
        id,
        name,
        birthday,
        gender,
        email,
        user_level,
        create_time,
        operate_time,
        '$do_date' start_date,
        '9999-99-99' end_date
    from ${APP}.ods_user_info where dt='$do_date'

    union all
    select
        uh.id,
        uh.name,
        uh.birthday,
        uh.gender,
        uh.email,
        uh.user_level,
        uh.create_time,
        uh.operate_time,
        uh.start_date,
        if(ui.id is not null  and uh.end_date='9999-99-99', date_add(ui.dt,-1), uh.end_date) end_date
    from ${APP}.dwd_dim_user_info_his uh left join
    (
        select
            *
        from ${APP}.ods_user_info
        where dt='$do_date'
    ) ui on uh.id=ui.id
)his
order by his.id, start_date;

insert overwrite table ${APP}.dwd_dim_user_info_his select * from ${APP}.dwd_
dim_user_info_his_tmp;
"

sql2="
insert overwrite table ${APP}.dwd_dim_base_province
select
    bp.id,
    bp.name,
    bp.area_code,
    bp.iso_code,
    bp.region_id,
    br.region_name
from ${APP}.ods_base_province bp
join ${APP}.ods_base_region br
on bp.region_id=br.id;
"

case $1 in
"first"){
    $hive -e "$sql1"
    $hive -e "$sql2"
};;
"all"){
    $hive -e "$sql1"
};;
esac

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404

增加脚本执行权限

[jack@hadoop102 bin]$ chmod 777 ods_to_dwd_db.sh

电商仓库建设之DWD和DMI层 ​

1. 维度建模 ​

2. DWD层表结构设计 ​

3. 创建启动表 ​

4. DWD层(用户行为相关表) ​

4.5 自定义UDF函数(解析公共字段) ​

4.6 DWD层数据解析脚本 ​

4.7 DWD层(大屏显示表) ​

4.8 商品详情页表 ​

4.9 商品列表页表 ​

4.10 广告表 ​

4.12 消息通知表 ​

4.13 用户后台活跃表 ​

4.14 评论表 ​

4.15 收藏表 ​

4.16 点赞表 ​

4.17 错误日志表 ​

4.18 DWD层事件表加载数据脚本 ​

5. DWD层(业务数据) ​

5.1 商品维度表(全量表) ​

5.2 优惠券信息表(全量) ​

5.3 活动维度表(全量) ​

5.3 地区维度表(特殊) ​

5.4 时间维度表(特殊) ​

5.5 订单明细事实表(事务型快照事实表) ​

5.6 支付事实表(事务型快照事实表) ​

5.7 退款事实表(事务型快照事实表) ​

5.8 评价事实表(事务型快照事实表) ​

5.9 加购事实表(周期型快照事实表，每日快照) ​

5.10 收藏事实表(周期型快照事实表，每日快照) ​

5.11 优惠券领用事实表(累积型快照事实表) ​

5.12 订单事实表(累积型快照事实表) ​

5.13 用户维度表(拉链表) ​

6. DWD层数据导入脚本 ​

电商仓库建设之DWD和DMI层

1. 维度建模

2. DWD层表结构设计

3. 创建启动表

4. DWD层(用户行为相关表)

4.5 自定义UDF函数(解析公共字段)

4.6 DWD层数据解析脚本

4.7 DWD层(大屏显示表)

4.8 商品详情页表

4.9 商品列表页表

4.10 广告表

4.12 消息通知表

4.13 用户后台活跃表

4.14 评论表

4.15 收藏表

4.16 点赞表

4.17 错误日志表

4.18 DWD层事件表加载数据脚本

5. DWD层(业务数据)

5.1 商品维度表(全量表)

5.2 优惠券信息表(全量)

5.3 活动维度表(全量)

5.3 地区维度表(特殊)

5.4 时间维度表(特殊)

5.5 订单明细事实表(事务型快照事实表)

5.6 支付事实表(事务型快照事实表)

5.7 退款事实表(事务型快照事实表)

5.8 评价事实表(事务型快照事实表)

5.9 加购事实表(周期型快照事实表，每日快照)

5.10 收藏事实表(周期型快照事实表，每日快照)

5.11 优惠券领用事实表(累积型快照事实表)

5.12 订单事实表(累积型快照事实表)

5.13 用户维度表(拉链表)

6. DWD层数据导入脚本
