Docker 镜像 ​

镜像是一种轻量级、可执行的独立软件包，用来打包软件运行环境和基于运行环境开发的软件，它包含运行某个软件所需的所有内容，包括代码、运行时、库、环境变量和配置文件。

1. UnionFS(联合文件系统) ​

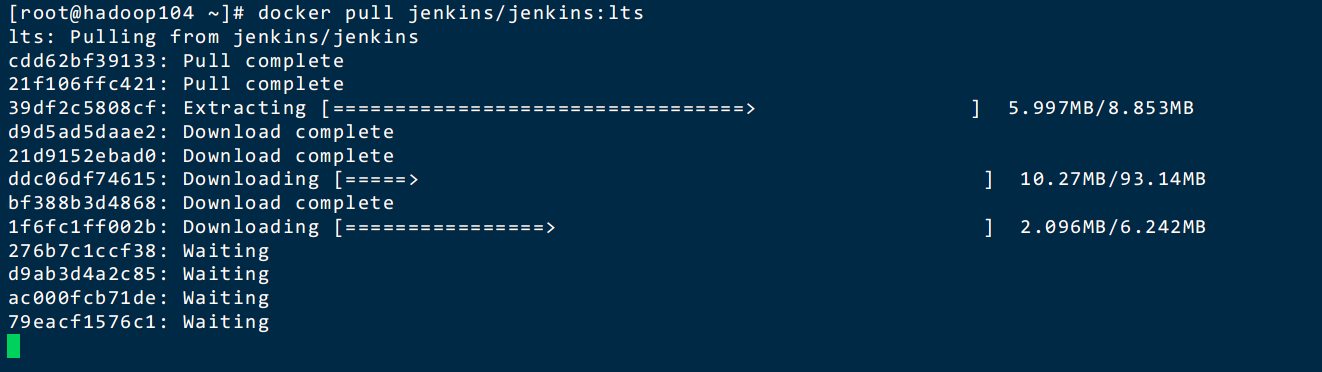

以pull为例，在下载的过程中我们可以看到docker的镜像好像是在一层一层的在下载:
Alt text Union文件系统(UnionFS)是一种分层、轻量级并且高性能的文件系统，它支持对文件系统的修改作为一次提交来一层层的叠加，同时可以将不同目录挂载到同一个虚拟文件系统下(unite several directories into a single virtual filesystem)。Union文件系统是Docker镜像的基础。镜像可以通过分层来进行继承，基于基础镜像(没有父镜像)，可以制作各种具体的应用镜像。 Alt text 特性：一次同时加载多个文件系统，但从外面看起来，只能看到一个文件系统，联合加载会把各层文件系统叠加起来，这样最终的文件系统会包含所有底层的文件和目录。

为什么 Docker 镜像要采用这种分层结构呢？

最大的一个好处就是 - 共享资源，方便复制迁移，更好的复用
比如：有多个镜像都从相同的base镜像构建而来，那么宿主机只需在磁盘上保存一份base镜像，同时内存中也只需加载一份base镜像，就可以为所有容器服务了。而且镜像的每一层都可以被共享。

2. Docker镜像加载原理 ​

Docker的镜像实际上由一层一层的文件系统组成，具体的层级的文件系统如下：

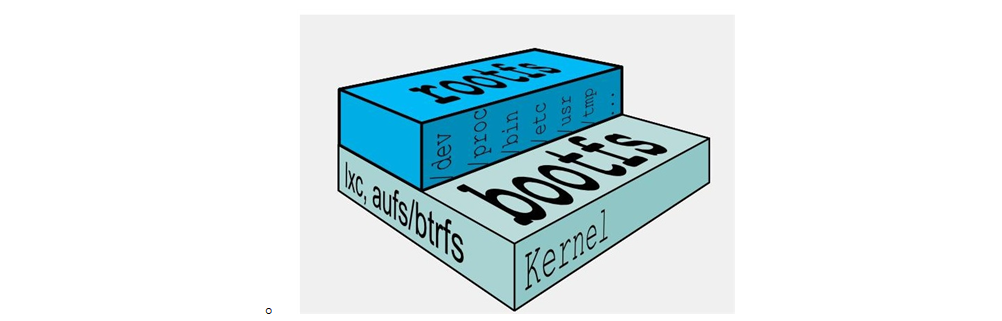

  • bootfs(boot file system): 主要包含bootloader和kernel, bootloader主要是引导加载kernel, Linux刚启动时会加载bootfs文件系统，在Docker镜像的最底层是bootfs。这一层与我们典型的Linux/Unix系统是一样的，包含boot加载器和内核。当boot加载完成之后整个内核就都在内存中了，此时内存的使用权已由bootfs转交给内核，此时系统也会卸载bootfs。
  • rootfs(root file system): 在bootfs之上。包含的就是典型 Linux 系统中的 /dev, /proc, /bin, /etc 等标准目录和文件。rootfs就是各种不同的操作系统发行版，比如Ubuntu，Centos等等。

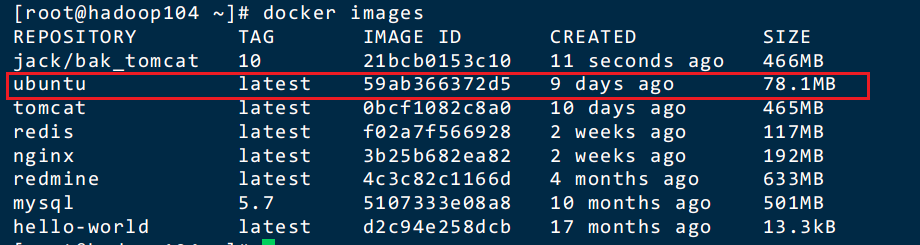

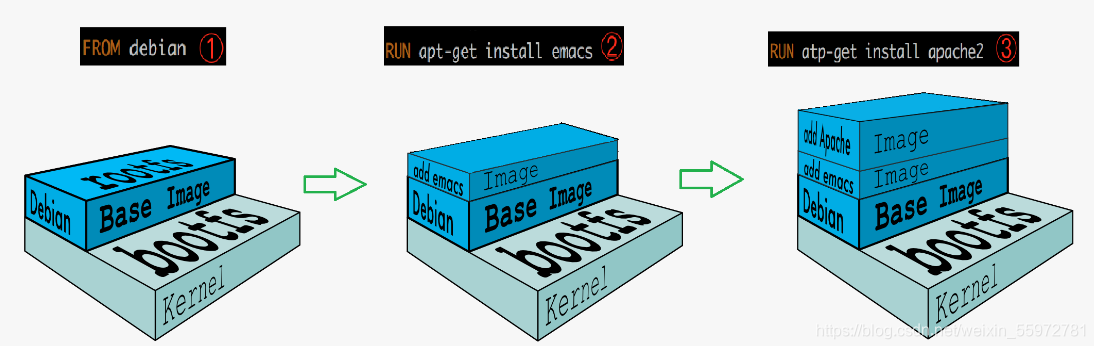

    Alt text 平时我们安装进虚拟机的Ubuntu都是好几个G，为什么docker这里才200M？？ Alt text 对于一个精简的OS，rootfs可以很小，只需要包括最基本的命令、工具和程序库就可以了，因为底层直接用Host的kernel，自己只需要提供 rootfs 就行了。由此可见对于不同的linux发行版, bootfs基本是一致的, rootfs会有差别, 因此不同的发行版可以公用bootfs。

3. Docker镜像特点 ​

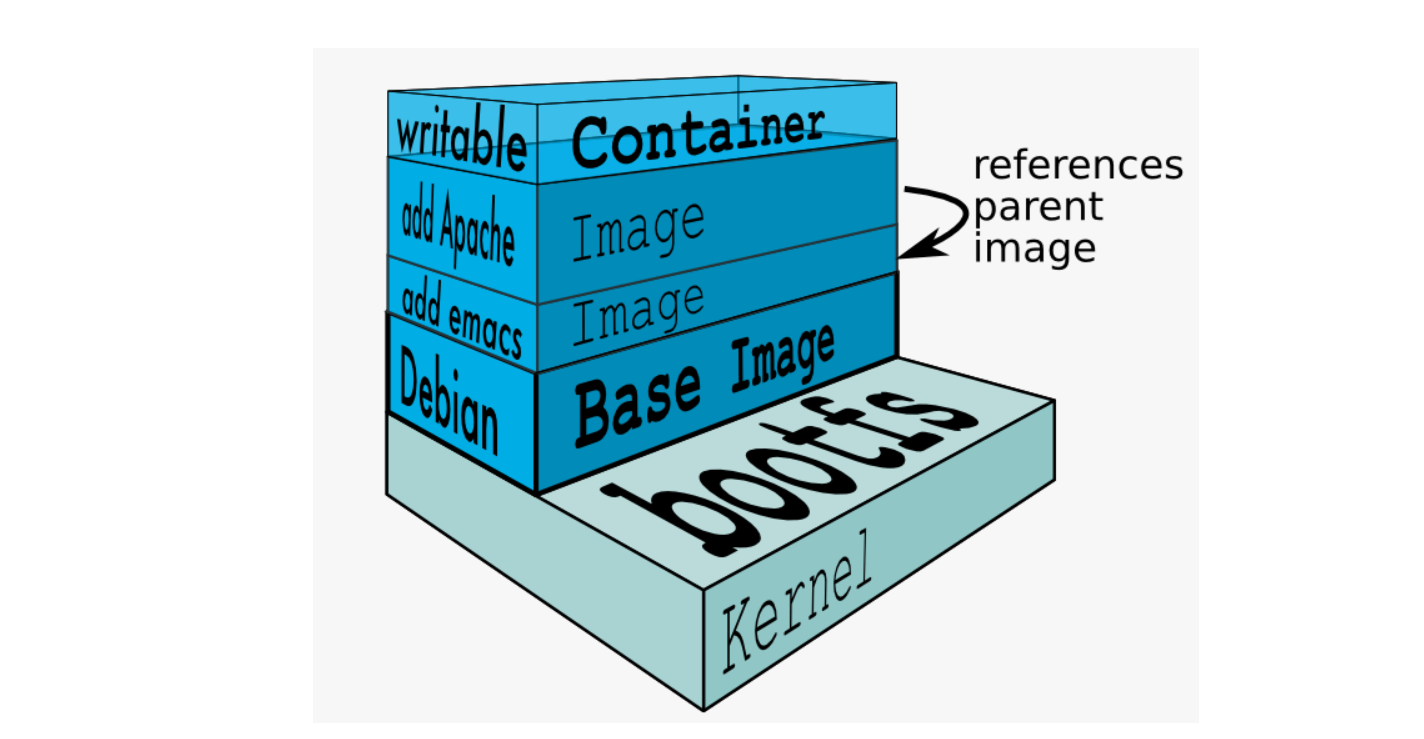

Docker镜像层都是只读的，容器层是可写的。当容器启动时，一个新的可写层被加载到镜像的顶部。这一层通常被称作"容器层"，"容器层"之下的都叫"镜像层"。所有对容器的改动(无论添加删除还是修改文件)都只会发生在容器层中。
Alt text

4. docker commit命令 ​

格式：docker commit -m="提交的描述信息" -a="作者" 容器ID 要创建的目标镜像名:[标签名] 提交容器副本使之成为一个新的镜像

4.1 从Hub上下载ubuntu镜像到本地并成功运行 ​

sh
[root@hadoop104 ~]# docker run --name myUbuntu -it ubuntu
root@f7703e8e9f71:/#

4.2 在镜像中安装vim ​

sh
root@f7703e8e9f71:/# apt-get update
# 原始的ubuntu镜像不带vim命令
root@f7703e8e9f71:/# apt-get -y install vim
# 查看最近的容器
[root@hadoop104 ~]# docker ps -n 1
CONTAINER ID   IMAGE     COMMAND       CREATED         STATUS                      PORTS     NAMES
f7703e8e9f71   ubuntu    "/bin/bash"   4 minutes ago   Exited (0) 14 seconds ago             myUbuntu

4.3 commit当前的镜像 ​

sh
[root@hadoop104 ~]# docker commit -m="vim add" -a="jack" f7703e8e9f71 jack/myubuntu:1.0
sha256:563feb03c432ecb905f3b05948fea3806e75bc59086bdada59aa3a640d8a42c9
[root@hadoop104 ~]# docker images
REPOSITORY        TAG       IMAGE ID       CREATED             SIZE
jack/myubuntu     1.0       563feb03c432   6 seconds ago       191MB
jack/bak_tomcat   10        21bcb0153c10   About an hour ago   466MB
ubuntu            latest    59ab366372d5   9 days ago          78.1MB
tomcat            latest    0bcf1082c8a0   10 days ago         465MB
redis             latest    f02a7f566928   2 weeks ago         117MB
nginx             latest    3b25b682ea82   2 weeks ago         192MB
jenkins/jenkins   lts       bac101b69b63   2 weeks ago         470MB
redmine           latest    4c3c82c1166d   4 months ago        633MB
mysql             5.7       5107333e08a8   10 months ago       501MB
hello-world       latest    d2c94e258dcb   17 months ago       13.3kB

总结

Docker中的镜像分层，支持通过扩展现有镜像，创建新的镜像。类似Java继承于一个Base基础类，自己再按需扩展，新镜像是从base镜像一层一层叠加生成的。每安装一个软件，就在现有镜像的基础上增加一层。
Alt text

5. 本地镜像发布到阿里云 ​

将jack/myubuntu镜像发布到阿里云镜像仓库中。

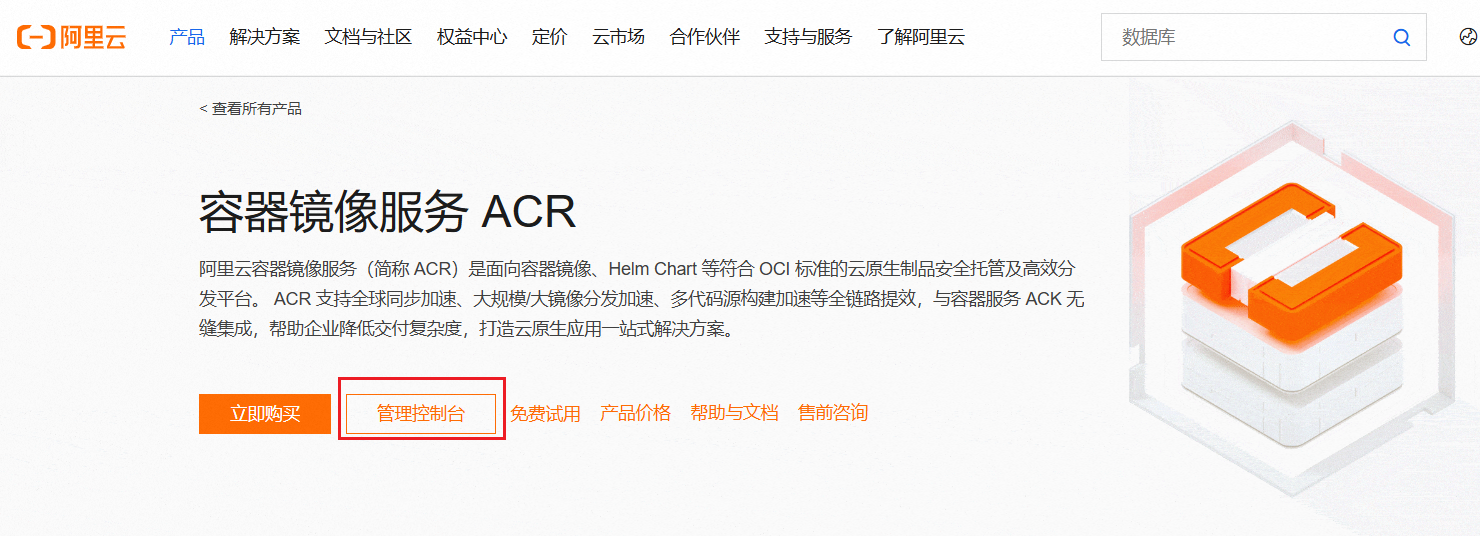

  1. 登陆阿里云, 搜索容器镜像服务,进入控制台:
    Alt text

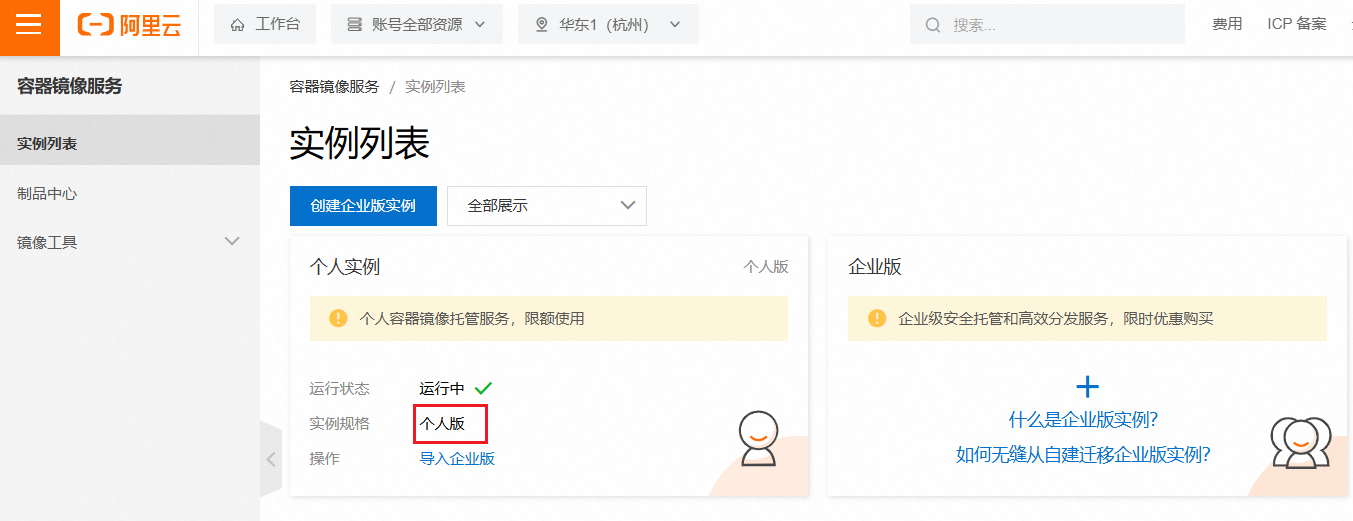

  2. 点击个人版:
    Alt text

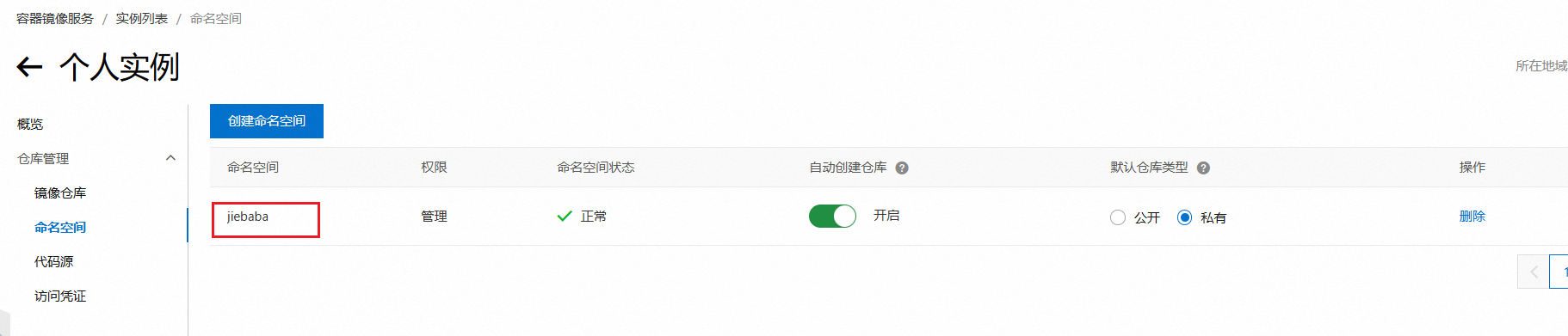

  3. 选择命名空间，创建命名空间
    Alt text

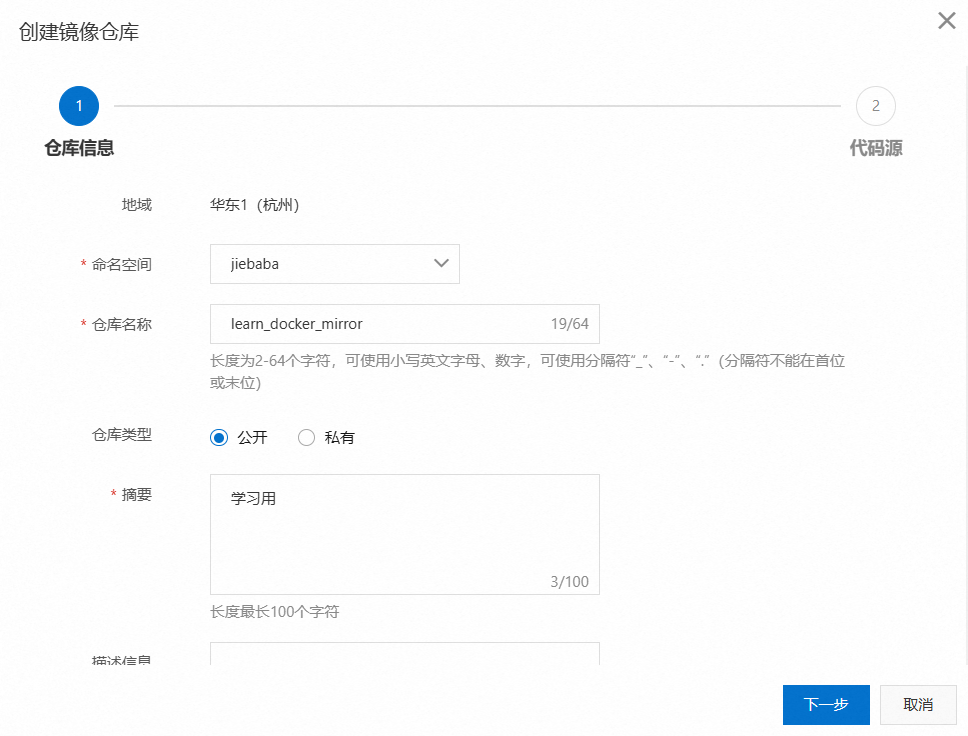

  4. 创建仓库名称 Alt text

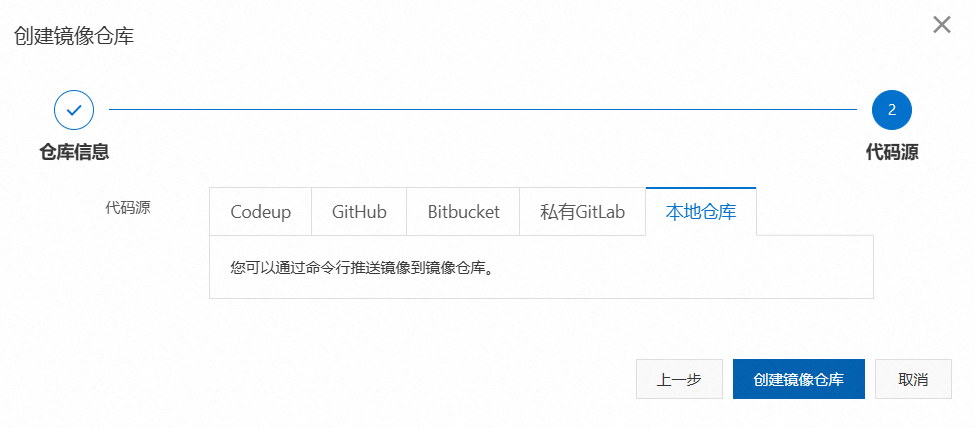

  5. 选择本地仓库，创建成功后，显示仓库信息及操作指南 Alt text
  6. 开始推送：
sh
[jack@hadoop104 ~]$ docker login --username=goder@aliyun.com registry.cn-hangzhou.aliyuncs.com
Password:
WARNING! Your password will be stored unencrypted in /home/jack/.docker/config.json.
Configure a credential helper to remove this warning. See
https://docs.docker.com/engine/reference/commandline/login/#credentials-store

Login Succeeded

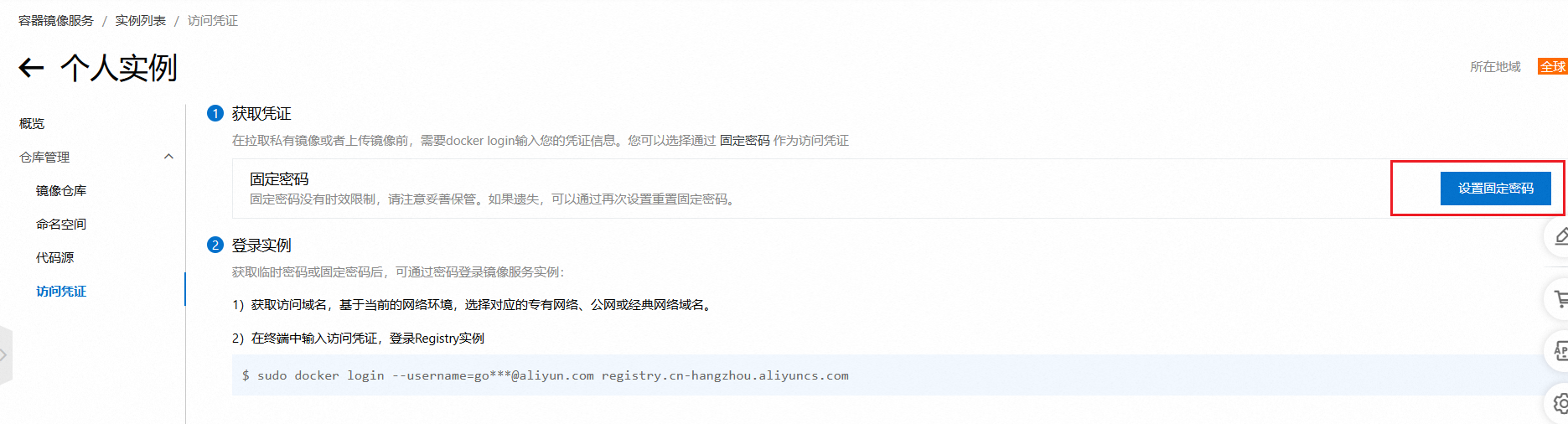

提示需要输入密码，密码是获取凭证不是阿里云密码：
Alt text

sh
[root@hadoop104 ~]# docker tag 563feb03c432 registry.cn-hangzhou.aliyuncs.com/jiebaba/learn_docker_mirror:1.0
[root@hadoop104 ~]# docker push registry.cn-hangzhou.aliyuncs.com/jiebaba/learn_docker_mirror:1.0
The push refers to repository [registry.cn-hangzhou.aliyuncs.com/jiebaba/learn_docker_mirror]
174122ceb801: Pushed
a46a5fb872b5: Pushed
1.0: digest: sha256:3849f9d0e8538120fa85c4c2cb7250d80af400dace308bda8d0b3442f2ec8e47 size: 741

6. 将阿里云镜像下载到本地库 ​

先删除本地相同的镜像：

sh
[root@hadoop104 ~]# docker rmi -f 563feb03c432
Untagged: jack/myubuntu:1.0
Untagged: registry.cn-hangzhou.aliyuncs.com/jiebaba/learn_docker_mirror:1.0
Untagged: registry.cn-hangzhou.aliyuncs.com/jiebaba/learn_docker_mirror@sha256:3849f9d0e8538120fa85c4c2cb7250d80af400dace308bda8d0b3442f2ec8e47
Deleted: sha256:563feb03c432ecb905f3b05948fea3806e75bc59086bdada59aa3a640d8a42c9
Deleted: sha256:2c3da70142e77bb0c28e64637a7f785d36f413f1acc9054c577de9807c31aa95

拉取镜像:

sh
[root@hadoop104 ~]# docker pull registry.cn-hangzhou.aliyuncs.com/jiebaba/learn_docker_mirror:1.0
1.0: Pulling from jiebaba/learn_docker_mirror
802008e7f761: Already exists
23e9208f5799: Pull complete
Digest: sha256:3849f9d0e8538120fa85c4c2cb7250d80af400dace308bda8d0b3442f2ec8e47
Status: Downloaded newer image for registry.cn-hangzhou.aliyuncs.com/jiebaba/learn_docker_mirror:1.0
registry.cn-hangzhou.aliyuncs.com/jiebaba/learn_docker_mirror:1.0
[root@hadoop104 ~]# docker images
REPOSITORY                                                      TAG           IMAGE ID       CREATED         SIZE
registry.cn-hangzhou.aliyuncs.com/jiebaba/learn_docker_mirror   1.0           563feb03c432   3 hours ago     191MB
jack/bak_tomcat                                                 10            21bcb0153c10   4 hours ago     466MB
ubuntu                                                          latest        59ab366372d5   9 days ago      78.1MB
tomcat                                                          latest        0bcf1082c8a0   10 days ago     465MB
redis                                                           latest        f02a7f566928   2 weeks ago     117MB
nginx                                                           latest        3b25b682ea82   2 weeks ago     192MB
jenkins/jenkins                                                 lts           bac101b69b63   2 weeks ago     470MB
tomcat                                                          9.0.93-jdk8   96353978e6a7   2 months ago    387MB
redmine                                                         latest        4c3c82c1166d   4 months ago    633MB
mysql                                                           5.7           5107333e08a8   10 months ago   501MB
hello-world                                                     latest        d2c94e258dcb   17 months ago   13.3kB

7. 创建本地私有库 ​

阿里云这样的公共镜像仓库可能不太方便，涉及机密的公司不可能提供镜像给公网，所以需要创建一个本地私人仓库供给团队使用，Docker Registry是官方提供的工具，可以用于构建私有镜像仓库。

7.1 下载Docker Registry镜像 ​

sh
[root@hadoop104 ~]# docker pull registry
Using default tag: latest
latest: Pulling from library/registry
1cc3d825d8b2: Pull complete
85ab09421e5a: Pull complete
40960af72c1c: Pull complete
e7bb1dbb377e: Pull complete
a538cc9b1ae3: Pull complete
Digest: sha256:ac0192b549007e22998eb74e8d8488dcfe70f1489520c3b144a6047ac5efbe90
Status: Downloaded newer image for registry:latest
docker.io/library/registry:latest

7.2 运行Registry镜像 ​

sh
[root@hadoop104 ~]# docker run -d -p 5000:5000 -v /hub/myregistry:/tmp/registry --privileged=true registry
d03ea3d31632c2baeda839376ce747784d5d9e8ef2221bc7180bc3146866125d
[root@hadoop104 ~]# docker ps
CONTAINER ID   IMAGE      COMMAND                   CREATED          STATUS          PORTS                                       NAMES
d03ea3d31632   registry   "/entrypoint.sh /etc…"   22 seconds ago   Up 20 seconds   0.0.0.0:5000->5000/tcp, :::5000->5000/tcp   elegant_sammet

不使用-v,默认情况下，仓库被创建在容器的var/lib/registry目录下，建议自行用容器卷映射，方便于宿主机联调。

7.3 ubuntu镜像添加ifconfig支持 ​

sh
[root@hadoop104 ~]# docker run --name="ubuntu" -it ubuntu /bin/bash
root@37e87bcc975d:/# apt-get update
root@37e87bcc975d:/# apt-get install net-tools -y
root@37e87bcc975d:/# ifconfig
eth0: flags=4163<UP,BROADCAST,RUNNING,MULTICAST>  mtu 1500
        inet 172.17.0.3  netmask 255.255.0.0  broadcast 172.17.255.255
        ether 02:42:ac:11:00:03  txqueuelen 0  (Ethernet)
        RX packets 6527  bytes 26803191 (26.8 MB)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 6517  bytes 503193 (503.1 KB)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

lo: flags=73<UP,LOOPBACK,RUNNING>  mtu 65536
        inet 127.0.0.1  netmask 255.0.0.0
        inet6 ::1  prefixlen 128  scopeid 0x10<host>
        loop  txqueuelen 1000  (Local Loopback)
        RX packets 0  bytes 0 (0.0 B)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 0  bytes 0 (0.0 B)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

7.4 commit新的镜像 ​

使用快捷键ctrl+P+Q退出当前ubuntu的shell,在宿主机上执行命令：

sh
[root@hadoop104 ~]# docker ps
CONTAINER ID   IMAGE      COMMAND                   CREATED          STATUS          PORTS                                       NAMES
37e87bcc975d   ubuntu     "/bin/bash"               5 minutes ago    Up 4 minutes                                                ubuntu
d03ea3d31632   registry   "/entrypoint.sh /etc…"   10 minutes ago   Up 10 minutes   0.0.0.0:5000->5000/tcp, :::5000->5000/tcp   elegant_sammet
[root@hadoop104 ~]# docker commit -m="ifconfig added" -a="jiebaba" 37e87bcc975d jiebaba_ubuntu:1.0
sha256:daa1b061aeac3d0dde5a349bd21a09aab91464a8599d6bc713049bbe874fd9a9
[root@hadoop104 ~]# docker images
REPOSITORY                                                      TAG           IMAGE ID       CREATED          SIZE
jiebaba_ubuntu                                                  1.0           daa1b061aeac   54 seconds ago   122MB
registry.cn-hangzhou.aliyuncs.com/jiebaba/learn_docker_mirror   1.0           563feb03c432   11 hours ago     191MB
jack/bak_tomcat                                                 10            21bcb0153c10   12 hours ago     466MB
ubuntu                                                          latest        59ab366372d5   9 days ago       78.1MB
tomcat                                                          latest        0bcf1082c8a0   11 days ago      465MB
redis                                                           latest        f02a7f566928   2 weeks ago      117MB
nginx                                                           latest        3b25b682ea82   2 weeks ago      192MB
jenkins/jenkins                                                 lts           bac101b69b63   2 weeks ago      470MB
tomcat                                                          9.0.93-jdk8   96353978e6a7   2 months ago     387MB
redmine                                                         latest        4c3c82c1166d   4 months ago     633MB
mysql                                                           5.7           5107333e08a8   10 months ago    501MB
registry                                                        latest        75ef5b734af4   12 months ago    25.4MB
hello-world                                                     latest        d2c94e258dcb   17 months ago    13.3kB

7.5 查看私服库的镜像 ​

sh
[root@hadoop104 ~]# curl -XGET http://192.168.101.104:5000/v2/_catalog
{"repositories":[]}

可以看到，目前私服库没有任何镜像上传过。

7.6 将新镜像修改为符合私服规范的Tag ​

格式： docker tag 镜像:Tag Host:PortRepository:Tag

sh
[root@hadoop104 ~]# docker tag jiebaba_ubuntu:1.0 192.168.101.104:5000/jiebaba_ubuntu:1.0
[root@hadoop104 ~]# docker images
REPOSITORY                                                      TAG           IMAGE ID       CREATED         SIZE
192.168.101.104:5000/jiebaba_ubuntu                             1.0           daa1b061aeac   9 minutes ago   122MB
jiebaba_ubuntu                                                  1.0           daa1b061aeac   9 minutes ago   122MB
registry.cn-hangzhou.aliyuncs.com/jiebaba/learn_docker_mirror   1.0           563feb03c432   11 hours ago    191MB
jack/bak_tomcat                                                 10            21bcb0153c10   12 hours ago    466MB
ubuntu                                                          latest        59ab366372d5   9 days ago      78.1MB
tomcat                                                          latest        0bcf1082c8a0   11 days ago     465MB
redis                                                           latest        f02a7f566928   2 weeks ago     117MB
nginx                                                           latest        3b25b682ea82   2 weeks ago     192MB
jenkins/jenkins                                                 lts           bac101b69b63   2 weeks ago     470MB
tomcat                                                          9.0.93-jdk8   96353978e6a7   2 months ago    387MB
redmine                                                         latest        4c3c82c1166d   4 months ago    633MB
mysql                                                           5.7           5107333e08a8   10 months ago   501MB
registry                                                        latest        75ef5b734af4   12 months ago   25.4MB
hello-world                                                     latest        d2c94e258dcb   17 months ago   13.3kB

7.7 修改配置文件支持http ​

由于Docker做了安全加固，上传镜像只支持https,需要修改配置将本地加入白名单：

sh
[root@hadoop104 ~]# vim /etc/docker/daemon.json
[root@hadoop104 ~]# cat /etc/docker/daemon.json
{
  "registry-mirrors": [
    "https://docker.1ms.run",
    "https://docker.m.daocloud.io",
    "https://docker.rainbond.cc",
    "https://docker.chenby.cn",
    "https://docker.1panel.live",
    "https://wnjwhe4c.mirror.aliyuncs.com"
  ],
  "insecure-registries":["192.168.101.104:5000"]
}

配置修改后重启Docker生效，然后启动registry容器。

7.8 push推送到私服库 ​

sh
[root@hadoop104 ~]# docker push 192.168.101.104:5000/jiebaba_ubuntu:1.0
The push refers to repository [192.168.101.104:5000/jiebaba_ubuntu]
6af086f1d357: Pushed
a46a5fb872b5: Pushed
1.0: digest: sha256:fd03586c01dffd5c5a49c0f7c81fd936758d5357b994a5ee6a24e3e9b0c514b4 size: 741

7.9 curl验证私服库 ​

sh
[root@hadoop104 ~]# curl -XGET http://192.168.101.104:5000/v2/_catalog
{"repositories":["jiebaba_ubuntu"]}

7.10 pull本地私服库 ​

先删除本地相同的镜像，然后在拉取私服库的镜像：

sh
[root@hadoop104 ~]# docker rmi -f 192.168.101.104:5000/jiebaba_ubuntu:1.0
Untagged: 192.168.101.104:5000/jiebaba_ubuntu:1.0
Untagged: 192.168.101.104:5000/jiebaba_ubuntu@sha256:fd03586c01dffd5c5a49c0f7c81fd936758d5357b994a5ee6a24e3e9b0c514b4
[root@hadoop104 ~]# docker images
REPOSITORY                                                      TAG           IMAGE ID       CREATED          SIZE
jiebaba_ubuntu                                                  1.0           daa1b061aeac   28 minutes ago   122MB
registry.cn-hangzhou.aliyuncs.com/jiebaba/learn_docker_mirror   1.0           563feb03c432   11 hours ago     191MB
jack/bak_tomcat                                                 10            21bcb0153c10   13 hours ago     466MB
ubuntu                                                          latest        59ab366372d5   9 days ago       78.1MB
tomcat                                                          latest        0bcf1082c8a0   11 days ago      465MB
redis                                                           latest        f02a7f566928   2 weeks ago      117MB
nginx                                                           latest        3b25b682ea82   2 weeks ago      192MB
jenkins/jenkins                                                 lts           bac101b69b63   2 weeks ago      470MB
tomcat                                                          9.0.93-jdk8   96353978e6a7   2 months ago     387MB
redmine                                                         latest        4c3c82c1166d   4 months ago     633MB
mysql                                                           5.7           5107333e08a8   10 months ago    501MB
registry                                                        latest        75ef5b734af4   12 months ago    25.4MB
hello-world                                                     latest        d2c94e258dcb   17 months ago    13.3kB
[root@hadoop104 ~]# docker pull 192.168.101.104:5000/jiebaba_ubuntu:1.0
1.0: Pulling from jiebaba_ubuntu
Digest: sha256:fd03586c01dffd5c5a49c0f7c81fd936758d5357b994a5ee6a24e3e9b0c514b4
Status: Downloaded newer image for 192.168.101.104:5000/jiebaba_ubuntu:1.0
192.168.101.104:5000/jiebaba_ubuntu:1.0
[root@hadoop104 ~]# docker images
REPOSITORY                                                      TAG           IMAGE ID       CREATED          SIZE
192.168.101.104:5000/jiebaba_ubuntu                             1.0           daa1b061aeac   30 minutes ago   122MB
jiebaba_ubuntu                                                  1.0           daa1b061aeac   30 minutes ago   122MB
registry.cn-hangzhou.aliyuncs.com/jiebaba/learn_docker_mirror   1.0           563feb03c432   11 hours ago     191MB
jack/bak_tomcat                                                 10            21bcb0153c10   13 hours ago     466MB
ubuntu                                                          latest        59ab366372d5   9 days ago       78.1MB
tomcat                                                          latest        0bcf1082c8a0   11 days ago      465MB
redis                                                           latest        f02a7f566928   2 weeks ago      117MB
nginx                                                           latest        3b25b682ea82   2 weeks ago      192MB
jenkins/jenkins                                                 lts           bac101b69b63   2 weeks ago      470MB
tomcat                                                          9.0.93-jdk8   96353978e6a7   2 months ago     387MB
redmine                                                         latest        4c3c82c1166d   4 months ago     633MB
mysql                                                           5.7           5107333e08a8   10 months ago    501MB
registry                                                        latest        75ef5b734af4   12 months ago    25.4MB
hello-world                                                     latest        d2c94e258dcb   17 months ago    13.3kB
