使用canal客户端消费消息

基于canal的TCP模式处理日志，以下为通过编码方式灵活的消费来自canal-server订阅192.168.101.105数据库数据。

1. 创建canal-demo项目

引入依赖canal.client：

<dependency>
    <groupId>com.alibaba.otter</groupId>
    <artifactId>canal.client</artifactId>
    <version>1.1.7</version>
</dependency>

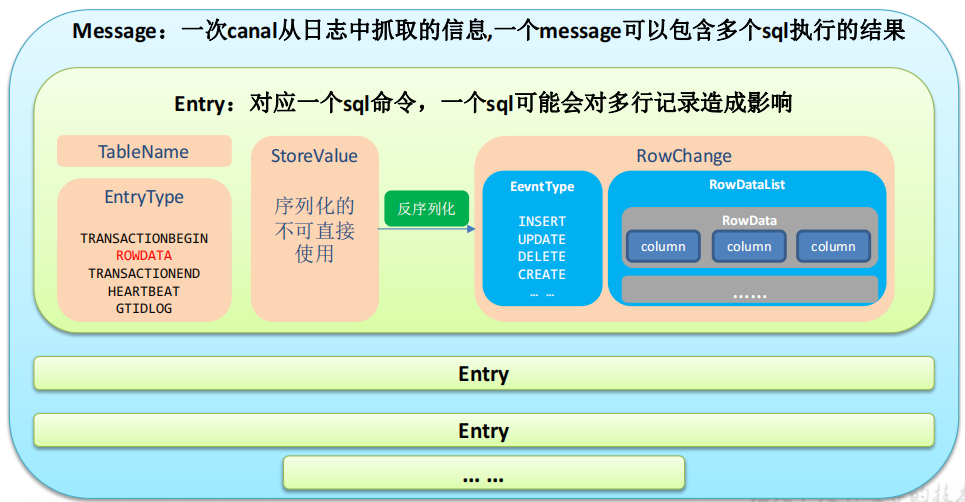

2. canal-client封装的数据结构

3. 编写代码并测试

public class App
{
    public static void main( String[] args ) {
        // 远程连接canal
        CanalConnector connector = CanalConnectors.newSingleConnector(new InetSocketAddress("192.168.101.102",
                11111), "example", "", "");
        int batchSize = 1000;
        int emptyCount = 0;
        try {
            connector.connect();
            // 设置订阅处理指定数据库的binlog
            connector.subscribe(".*\\..*");
            connector.rollback();
            int totalEmptyCount = 120;
            while (emptyCount < totalEmptyCount) {
                Message message = connector.getWithoutAck(batchSize); // 获取指定数量的数据
                long batchId = message.getId();
                int size = message.getEntries().size();
                if (batchId == -1 || size == 0) {
                    emptyCount++;
                    System.out.println("empty count : " + emptyCount);
                    try {
                        Thread.sleep(1000);
                    } catch (InterruptedException e) {
                    }
                } else {
                    emptyCount = 0;
                    // System.out.printf("message[batchId=%s,size=%s] \n", batchId, size);
                    printEntry(message.getEntries());
                }

                connector.ack(batchId); // 提交确认
                // connector.rollback(batchId); // 处理失败, 回滚数据
            }

            System.out.println("empty too many times, exit");
        } finally {
            connector.disconnect();
        }
    }

    private static void printEntry(List<Entry> entrys) {
        for (Entry entry : entrys) {
            if (entry.getEntryType() == EntryType.TRANSACTIONBEGIN || entry.getEntryType() == EntryType.TRANSACTIONEND) {
                continue;
            }

            RowChange rowChage = null;
            try {
                rowChage = RowChange.parseFrom(entry.getStoreValue());
            } catch (Exception e) {
                throw new RuntimeException("ERROR ## parser of eromanga-event has an error , data:" + entry.toString(),
                        e);
            }

            EventType eventType = rowChage.getEventType();
            System.out.println(String.format("================&gt; binlog[%s:%s] , name[%s,%s] , eventType : %s",
                    entry.getHeader().getLogfileName(), entry.getHeader().getLogfileOffset(),
                    entry.getHeader().getSchemaName(), entry.getHeader().getTableName(),
                    eventType));

            for (RowData rowData : rowChage.getRowDatasList()) {
                if (eventType == EventType.DELETE) {
                    printColumn(rowData.getBeforeColumnsList());
                } else if (eventType == EventType.INSERT) {
                    printColumn(rowData.getAfterColumnsList());
                } else {
                    System.out.println("-------&gt; before");
                    printColumn(rowData.getBeforeColumnsList());
                    System.out.println("-------&gt; after");
                    printColumn(rowData.getAfterColumnsList());
                }
            }
        }
    }

    private static void printColumn(List<Column> columns) {
        for (Column column : columns) {
            System.out.println(column.getName() + " : " + column.getValue() + "    update=" + column.getUpdated());
        }
    }
}

4. 运行Client

启动Canal Client后，可以从控制台从看到类似消息：

empty count : 1
empty count : 2
empty count : 3
empty count : 4

此时代表当前数据库无变更数据。

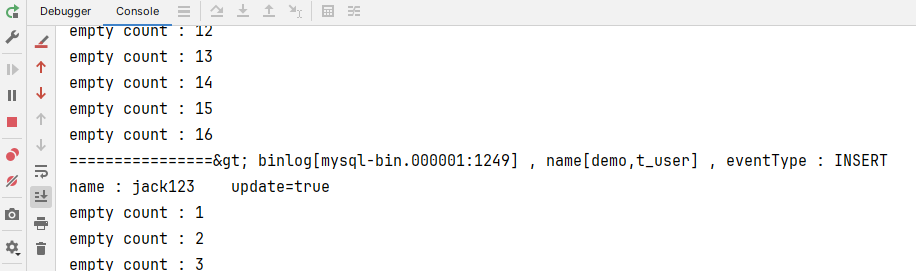

执行sql观察客户端控制台

INSERT INTO demo.t_user values("jack123");
INSERT INTO seata.newtable values("test");

打印出了新增数据的日志，由于seata数据库没有生成binlog,可以看到没有seata.newtable的binlog相关信息。

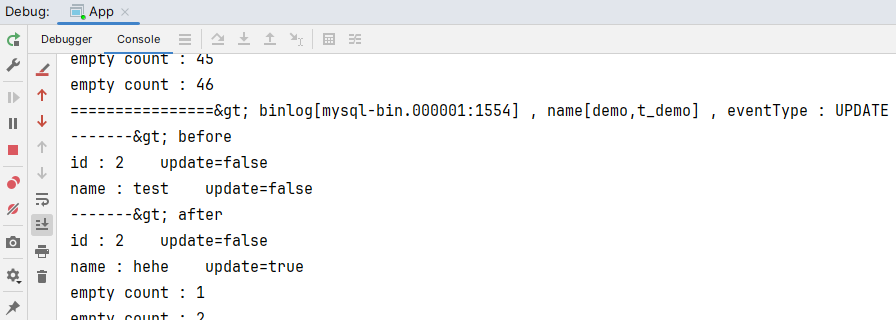

UPDATE demo.t_demo SET name ="hehe" WHERE id=2

更新也可以捕获binlog
