源码之Follower和Leader状态同步
当选举结束后，每个节点都需要根据自己的角色更新自己的状态。选举出的Leader更新自己状态为Leader，其他节点更新自己状态为Follower。

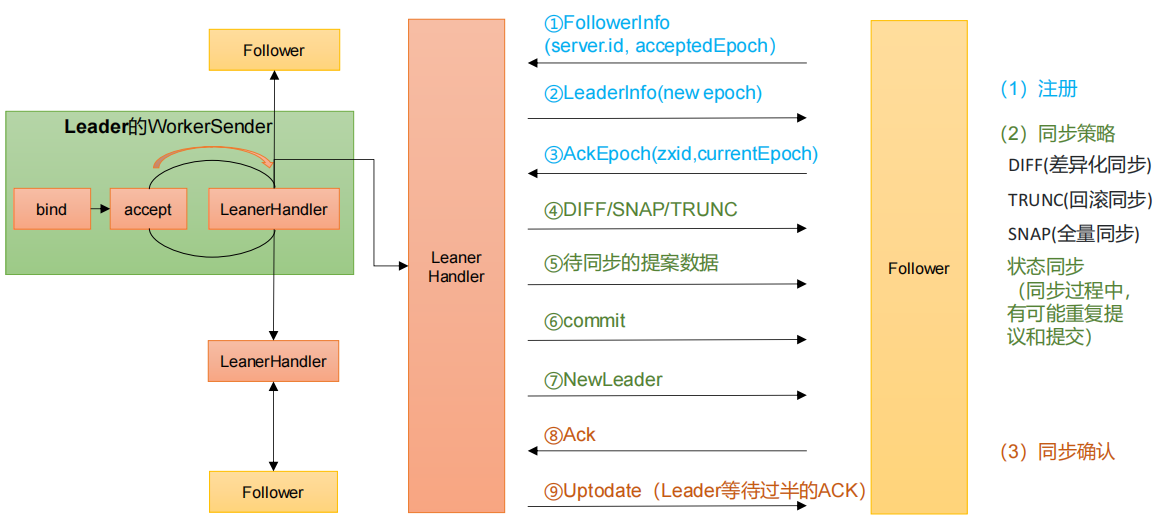

1. Follower和Leader状态同步流程
总结同步的策略方式
- DIFF: 咱两一样，不需要做什么。
- TRUNC: follower的zxid 比leader的zxid大，所以Follower要回滚。
- COMMIT: leader的zxid比follower的zxid大，发送Proposal给foloower提交执行。
- SNAP: 如果follower并没有任何数据，直接使用SNAP的方式来执行数据同步(直接把数据全部序列到 follower)。
2. Follower和Leader状态同步源码
Leader更新状态入口：leader.lead()
Follower更新状态入口：follower.followerLeader()
- follower必须要让leader知道自己的状态：epoch、zxid、sid
- 必须要找出谁是leader；
- 发起请求连接leader；
- 发送自己的信息给leader；
- leader接收到信息，必须要返回对应的信息给follower。
- 当leader得知follower的状态了，就确定需要做何种方式的数据同步DIFF、TRUNC、SNAP执行数据同步。
- 当leader接收到超过半数follower的ack之后，进入正常工作状态，集群启动完成了。

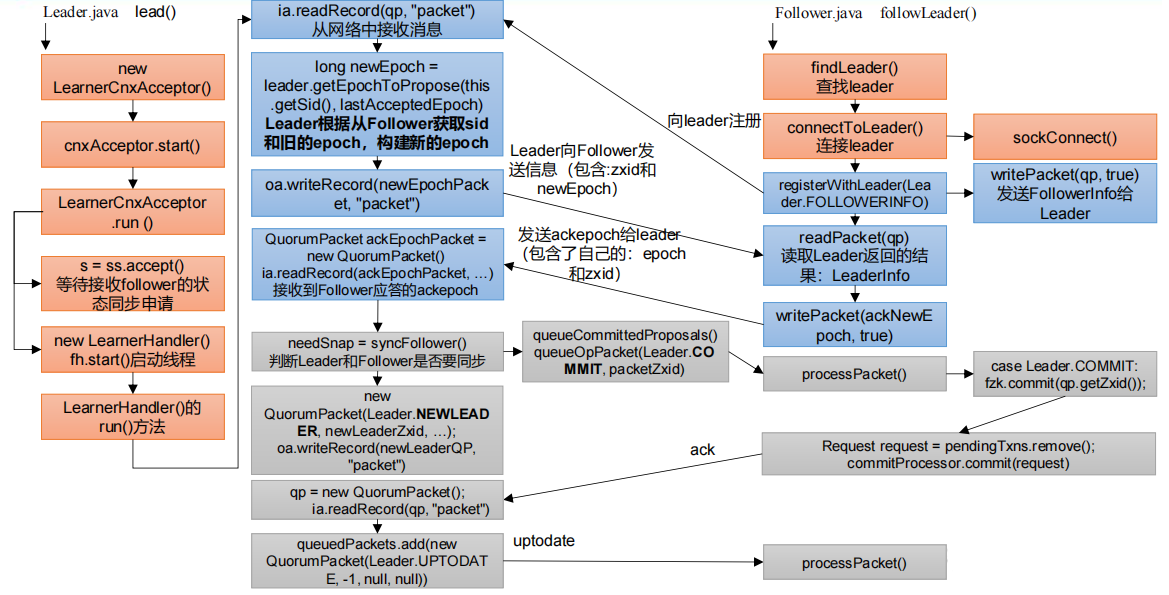

下图为具体源码中核心状态同步代码逻辑：
3. Leader等待接收follower的状态同步申请
- 在Leader.java中查找
lead()方法
java
void lead() throws IOException, InterruptedException {
self.end_fle = Time.currentElapsedTime();
long electionTimeTaken = self.end_fle - self.start_fle;
self.setElectionTimeTaken(electionTimeTaken);
ServerMetrics.getMetrics().ELECTION_TIME.add(electionTimeTaken);
LOG.info("LEADING - LEADER ELECTION TOOK - {} {}", electionTimeTaken, QuorumPeer.FLE_TIME_UNIT);
self.start_fle = 0;
self.end_fle = 0;
zk.registerJMX(new LeaderBean(this, zk), self.jmxLocalPeerBean);
try {
self.setZabState(QuorumPeer.ZabState.DISCOVERY);
self.tick.set(0);
// 恢复数据到内存，启动时，其实已经加载过了
zk.loadData();
leaderStateSummary = new StateSummary(self.getCurrentEpoch(), zk.getLastProcessedZxid());
// Start thread that waits for connection requests from
// new followers.
// 等待其他 follower 节点向 leader 节点发送同步状态请求
cnxAcceptor = new LearnerCnxAcceptor();
cnxAcceptor.start();
long epoch = getEpochToPropose(self.getMyId(), self.getAcceptedEpoch());
zk.setZxid(ZxidUtils.makeZxid(epoch, 0));
......
}
}- 使用多线程异步监听 LearnerCnxAcceptor.java
java
@Override
public void run() {
if (!stop.get() && !serverSockets.isEmpty()) {
ExecutorService executor = Executors.newFixedThreadPool(serverSockets.size());
CountDownLatch latch = new CountDownLatch(serverSockets.size());
serverSockets.forEach(serverSocket ->
executor.submit(new LearnerCnxAcceptorHandler(serverSocket, latch)));
try {
latch.await();
} catch (InterruptedException ie) {
LOG.error("Interrupted while sleeping in LearnerCnxAcceptor.", ie);
} finally {
closeSockets();
executor.shutdown();
try {
if (!executor.awaitTermination(1, TimeUnit.SECONDS)) {
LOG.error("not all the LearnerCnxAcceptorHandler terminated properly");
}
} catch (InterruptedException ie) {
LOG.error("Interrupted while terminating LearnerCnxAcceptor.", ie);
}
}
}
}- LearnerCnxAcceptorHandler是一个线程类，它的run()方法
java
@Override
public void run() {
try {
Thread.currentThread().setName("LearnerCnxAcceptorHandler-" + serverSocket.getLocalSocketAddress());
// 等待接收 follower 的状态同步申请
while (!stop.get()) {
acceptConnections();
}
} catch (Exception e) {
LOG.warn("Exception while accepting follower", e);
if (fail.compareAndSet(false, true)) {
handleException(getName(), e);
halt();
}
} finally {
latch.countDown();
}
}
private void acceptConnections() throws IOException {
Socket socket = null;
boolean error = false;
try {
socket = serverSocket.accept();
// start with the initLimit, once the ack is processed
// in LearnerHandler switch to the syncLimit
socket.setSoTimeout(self.tickTime * self.initLimit);
socket.setTcpNoDelay(nodelay);
BufferedInputStream is = new BufferedInputStream(socket.getInputStream());
// 一旦接收到 follower 的请求，就创建 LearnerHandler 对象，处理请求
LearnerHandler fh = new LearnerHandler(socket, is, Leader.this);
// 启动线程
fh.start();
} catch (SocketException e) {
.......
}
}4. Follower查找并连接Leader
- followLeader()方法
java
void followLeader() throws InterruptedException {
......
try {
self.setZabState(QuorumPeer.ZabState.DISCOVERY);
// 查找 leader
QuorumServer leaderServer = findLeader();
try {
// 连接 leader
connectToLeader(leaderServer.addr, leaderServer.hostname);
connectionTime = System.currentTimeMillis();
// 向 leader 注册
long newEpochZxid = registerWithLeader(Leader.FOLLOWERINFO);
if (self.isReconfigStateChange()) {
throw new Exception("learned about role change");
}
//check to see if the leader zxid is lower than ours
//this should never happen but is just a safety check
long newEpoch = ZxidUtils.getEpochFromZxid(newEpochZxid);
if (newEpoch < self.getAcceptedEpoch()) {
LOG.error("Proposed leader epoch "
+ ZxidUtils.zxidToString(newEpochZxid)
+ " is less than our accepted epoch "
+ ZxidUtils.zxidToString(self.getAcceptedEpoch()));
throw new IOException("Error: Epoch of leader is lower");
}
long startTime = Time.currentElapsedTime();
self.setLeaderAddressAndId(leaderServer.addr, leaderServer.getId());
self.setZabState(QuorumPeer.ZabState.SYNCHRONIZATION);
syncWithLeader(newEpochZxid);
self.setZabState(QuorumPeer.ZabState.BROADCAST);
completedSync = true;
long syncTime = Time.currentElapsedTime() - startTime;
ServerMetrics.getMetrics().FOLLOWER_SYNC_TIME.add(syncTime);
if (self.getObserverMasterPort() > 0) {
LOG.info("Starting ObserverMaster");
om = new ObserverMaster(self, fzk, self.getObserverMasterPort());
om.start();
} else {
om = null;
}
// create a reusable packet to reduce gc impact
QuorumPacket qp = new QuorumPacket();
while (this.isRunning()) {
readPacket(qp);
processPacket(qp);
}
} catch (Exception e) {
LOG.warn("Exception when following the leader", e);
closeSocket();
// clear pending revalidations
pendingRevalidations.clear();
}
} finally {
......
}
}- 查找Leader的findLeader()方法
Learner.java
java
protected QuorumServer findLeader() {
QuorumServer leaderServer = null;
// Find the leader by id
// 选举投票的时候记录的，最后推荐的 leader 的 sid
Vote current = self.getCurrentVote();
// 如果这个 sid 在启动的所有服务器范围中
for (QuorumServer s : self.getView().values()) {
if (s.id == current.getId()) {
// Ensure we have the leader's correct IP address before
// attempting to connect.
// 尝试连接 leader 的正确 IP 地址
s.recreateSocketAddresses();
leaderServer = s;
break;
}
}
if (leaderServer == null) {
LOG.warn("Couldn't find the leader with id = {}", current.getId());
}
return leaderServer;
}- 连接Leader
Learner.java
java
protected void connectToLeader(MultipleAddresses multiAddr, String hostname) throws IOException {
this.leaderAddr = multiAddr;
Set<InetSocketAddress> addresses;
if (self.isMultiAddressReachabilityCheckEnabled()) {
// even if none of the addresses are reachable, we want to try to establish connection
// see ZOOKEEPER-3758
addresses = multiAddr.getAllReachableAddressesOrAll();
} else {
addresses = multiAddr.getAllAddresses();
}
ExecutorService executor = Executors.newFixedThreadPool(addresses.size());
CountDownLatch latch = new CountDownLatch(addresses.size());
AtomicReference<Socket> socket = new AtomicReference<>(null);
addresses.stream().map(address -> new LeaderConnector(address, socket, latch)).forEach(executor::submit);
try {
latch.await();
} catch (InterruptedException e) {
LOG.warn("Interrupted while trying to connect to Leader", e);
} finally {
executor.shutdown();
try {
if (!executor.awaitTermination(1, TimeUnit.SECONDS)) {
LOG.error("not all the LeaderConnector terminated properly");
}
} catch (InterruptedException ie) {
LOG.error("Interrupted while terminating LeaderConnector executor.", ie);
}
}
if (socket.get() == null) {
throw new IOException("Failed connect to " + multiAddr);
} else {
sock = socket.get();
sockBeingClosed.set(false);
}
self.authLearner.authenticate(sock, hostname);
leaderIs = BinaryInputArchive.getArchive(new BufferedInputStream(sock.getInputStream()));
bufferedOutput = new BufferedOutputStream(sock.getOutputStream());
leaderOs = BinaryOutputArchive.getArchive(bufferedOutput);
if (asyncSending) {
startSendingThread();
}
}- 底层使用多线程，由LeaderConnector类的run()方法实现连接
java
@Override
public void run() {
try {
Thread.currentThread().setName("LeaderConnector-" + address);
// 具体逻辑远程连接leader
Socket sock = connectToLeader();
if (sock != null && sock.isConnected()) {
if (socket.compareAndSet(null, sock)) {
LOG.info("Successfully connected to leader, using address: {}", address);
} else {
LOG.info("Connection to the leader is already established, close the redundant connection");
sock.close();
}
}
} catch (Exception e) {
LOG.error("Failed connect to {}", address, e);
} finally {
latch.countDown();
}
}
private Socket connectToLeader() throws IOException, X509Exception, InterruptedException {
Socket sock = createSocket();
// leader connection timeout defaults to tickTime * initLimit
int connectTimeout = self.tickTime * self.initLimit;
// but if connectToLearnerMasterLimit is specified, use that value to calculate
// timeout instead of using the initLimit value
if (self.connectToLearnerMasterLimit > 0) {
connectTimeout = self.tickTime * self.connectToLearnerMasterLimit;
}
int remainingTimeout;
long startNanoTime = nanoTime();
// 尝试五次连接Leader
for (int tries = 0; tries < 5 && socket.get() == null; tries++) {
try {
// recalculate the init limit time because retries sleep for 1000 milliseconds
remainingTimeout = connectTimeout - (int) ((nanoTime() - startNanoTime) / 1_000_000);
if (remainingTimeout <= 0) {
LOG.error("connectToLeader exceeded on retries.");
throw new IOException("connectToLeader exceeded on retries.");
}
// 底层socket通信
sockConnect(sock, address, Math.min(connectTimeout, remainingTimeout));
if (self.isSslQuorum()) {
((SSLSocket) sock).startHandshake();
}
sock.setTcpNoDelay(nodelay);
break;
} catch (IOException e) {
......
}
Thread.sleep(leaderConnectDelayDuringRetryMs);
}
return sock;
}5. 创建LearnerHandler，处理连接请求
- 回到Leader源码中，等待连接后面，会进行请求数据处理 LearnerCnxAcceptorHandler.java
java
private void acceptConnections() throws IOException {
Socket socket = null;
boolean error = false;
try {
socket = serverSocket.accept();
// start with the initLimit, once the ack is processed
// in LearnerHandler switch to the syncLimit
socket.setSoTimeout(self.tickTime * self.initLimit);
socket.setTcpNoDelay(nodelay);
BufferedInputStream is = new BufferedInputStream(socket.getInputStream());
LearnerHandler fh = new LearnerHandler(socket, is, Leader.this);
fh.start();
} catch (SocketException e) {
error = true;
if (stop.get()) {
LOG.warn("Exception while shutting down acceptor.", e);
} else {
throw e;
}
} catch (SaslException e) {
LOG.error("Exception while connecting to quorum learner", e);
error = true;
} catch (Exception e) {
error = true;
throw e;
} finally {
// Don't leak sockets on errors
if (error && socket != null && !socket.isClosed()) {
try {
socket.close();
} catch (IOException e) {
LOG.warn("Error closing socket: " + socket, e);
}
}
}
}- LearnerHandler类是线程类，查看run()方法
java
@Override
public void run() {
try {
learnerMaster.addLearnerHandler(this);
// 获取心跳间隔时间
tickOfNextAckDeadline = learnerMaster.getTickOfInitialAckDeadline();
ia = BinaryInputArchive.getArchive(bufferedInput);
bufferedOutput = new BufferedOutputStream(sock.getOutputStream());
oa = BinaryOutputArchive.getArchive(bufferedOutput);
// 从网络中接收消息，并反序列化为 packet
QuorumPacket qp = new QuorumPacket();
ia.readRecord(qp, "packet");
messageTracker.trackReceived(qp.getType());
// 选举结束后，observer 和 follower 都应该给 leader 发送一个标志信息：
// FOLLOWERINFO 或者 OBSERVERINFO
if (qp.getType() != Leader.FOLLOWERINFO && qp.getType() != Leader.OBSERVERINFO) {
LOG.error("First packet {} is not FOLLOWERINFO or OBSERVERINFO!", qp.toString());
return;
}
if (learnerMaster instanceof ObserverMaster && qp.getType() != Leader.OBSERVERINFO) {
throw new IOException("Non observer attempting to connect to ObserverMaster. type = " + qp.getType());
}
byte[] learnerInfoData = qp.getData();
if (learnerInfoData != null) {
ByteBuffer bbsid = ByteBuffer.wrap(learnerInfoData);
if (learnerInfoData.length >= 8) {
this.sid = bbsid.getLong();
}
if (learnerInfoData.length >= 12) {
this.version = bbsid.getInt(); // protocolVersion
}
if (learnerInfoData.length >= 20) {
long configVersion = bbsid.getLong();
if (configVersion > learnerMaster.getQuorumVerifierVersion()) {
throw new IOException("Follower is ahead of the leader (has a later activated configuration)");
}
}
} else {
this.sid = learnerMaster.getAndDecrementFollowerCounter();
}
String followerInfo = learnerMaster.getPeerInfo(this.sid);
if (followerInfo.isEmpty()) {
LOG.info(
"Follower sid: {} not in the current config {}",
this.sid,
Long.toHexString(learnerMaster.getQuorumVerifierVersion()));
} else {
LOG.info("Follower sid: {} : info : {}", this.sid, followerInfo);
}
if (qp.getType() == Leader.OBSERVERINFO) {
learnerType = LearnerType.OBSERVER;
}
learnerMaster.registerLearnerHandlerBean(this, sock);
// 读取 Follower 发送过来的 lastAcceptedEpoch
// 选举过程中，所使用的 epoch，其实还是上一任 leader 的 epoch
long lastAcceptedEpoch = ZxidUtils.getEpochFromZxid(qp.getZxid());
long peerLastZxid;
StateSummary ss = null;
// 读取 follower 发送过来的 zxid
long zxid = qp.getZxid();
// Leader 根据从 Follower 获取 sid 和旧的 epoch，构建新的 epoch
long newEpoch = learnerMaster.getEpochToPropose(this.getSid(), lastAcceptedEpoch);
long newLeaderZxid = ZxidUtils.makeZxid(newEpoch, 0);
if (this.getVersion() < 0x10000) {
// we are going to have to extrapolate the epoch information
long epoch = ZxidUtils.getEpochFromZxid(zxid);
ss = new StateSummary(epoch, zxid);
// fake the message
learnerMaster.waitForEpochAck(this.getSid(), ss);
} else {
byte[] ver = new byte[4];
ByteBuffer.wrap(ver).putInt(0x10000);
// Leader 向 Follower 发送信息(包含:zxid 和 newEpoch)
QuorumPacket newEpochPacket = new QuorumPacket(Leader.LEADERINFO, newLeaderZxid, ver, null);
oa.writeRecord(newEpochPacket, "packet");
messageTracker.trackSent(Leader.LEADERINFO);
bufferedOutput.flush();
QuorumPacket ackEpochPacket = new QuorumPacket();
ia.readRecord(ackEpochPacket, "packet");
messageTracker.trackReceived(ackEpochPacket.getType());
if (ackEpochPacket.getType() != Leader.ACKEPOCH) {
LOG.error("{} is not ACKEPOCH", ackEpochPacket.toString());
return;
}
ByteBuffer bbepoch = ByteBuffer.wrap(ackEpochPacket.getData());
ss = new StateSummary(bbepoch.getInt(), ackEpochPacket.getZxid());
learnerMaster.waitForEpochAck(this.getSid(), ss);
}
peerLastZxid = ss.getLastZxid();
// Take any necessary action if we need to send TRUNC or DIFF
// startForwarding() will be called in all cases
boolean needSnap = syncFollower(peerLastZxid, learnerMaster);
// syncs between followers and the leader are exempt from throttling because it
// is important to keep the state of quorum servers up-to-date. The exempted syncs
// are counted as concurrent syncs though
boolean exemptFromThrottle = getLearnerType() != LearnerType.OBSERVER;
/* if we are not truncating or sending a diff just send a snapshot */
if (needSnap) {
syncThrottler = learnerMaster.getLearnerSnapSyncThrottler();
syncThrottler.beginSync(exemptFromThrottle);
ServerMetrics.getMetrics().INFLIGHT_SNAP_COUNT.add(syncThrottler.getSyncInProgress());
try {
long zxidToSend = learnerMaster.getZKDatabase().getDataTreeLastProcessedZxid();
oa.writeRecord(new QuorumPacket(Leader.SNAP, zxidToSend, null, null), "packet");
messageTracker.trackSent(Leader.SNAP);
bufferedOutput.flush();
LOG.info(
"Sending snapshot last zxid of peer is 0x{}, zxid of leader is 0x{}, "
+ "send zxid of db as 0x{}, {} concurrent snapshot sync, "
+ "snapshot sync was {} from throttle",
Long.toHexString(peerLastZxid),
Long.toHexString(leaderLastZxid),
Long.toHexString(zxidToSend),
syncThrottler.getSyncInProgress(),
exemptFromThrottle ? "exempt" : "not exempt");
// Dump data to peer
learnerMaster.getZKDatabase().serializeSnapshot(oa);
oa.writeString("BenWasHere", "signature");
bufferedOutput.flush();
} finally {
ServerMetrics.getMetrics().SNAP_COUNT.add(1);
}
} else {
syncThrottler = learnerMaster.getLearnerDiffSyncThrottler();
syncThrottler.beginSync(exemptFromThrottle);
ServerMetrics.getMetrics().INFLIGHT_DIFF_COUNT.add(syncThrottler.getSyncInProgress());
ServerMetrics.getMetrics().DIFF_COUNT.add(1);
}
LOG.debug("Sending NEWLEADER message to {}", sid);
// the version of this quorumVerifier will be set by leader.lead() in case
// the leader is just being established. waitForEpochAck makes sure that readyToStart is true if
// we got here, so the version was set
if (getVersion() < 0x10000) {
QuorumPacket newLeaderQP = new QuorumPacket(Leader.NEWLEADER, newLeaderZxid, null, null);
oa.writeRecord(newLeaderQP, "packet");
} else {
QuorumPacket newLeaderQP = new QuorumPacket(Leader.NEWLEADER, newLeaderZxid, learnerMaster.getQuorumVerifierBytes(), null);
queuedPackets.add(newLeaderQP);
}
bufferedOutput.flush();
// Start thread that blast packets in the queue to learner
startSendingPackets();
/*
* Have to wait for the first ACK, wait until
* the learnerMaster is ready, and only then we can
* start processing messages.
*/
qp = new QuorumPacket();
ia.readRecord(qp, "packet");
messageTracker.trackReceived(qp.getType());
if (qp.getType() != Leader.ACK) {
LOG.error("Next packet was supposed to be an ACK, but received packet: {}", packetToString(qp));
return;
}
LOG.debug("Received NEWLEADER-ACK message from {}", sid);
learnerMaster.waitForNewLeaderAck(getSid(), qp.getZxid());
syncLimitCheck.start();
// sync ends when NEWLEADER-ACK is received
syncThrottler.endSync();
if (needSnap) {
ServerMetrics.getMetrics().INFLIGHT_SNAP_COUNT.add(syncThrottler.getSyncInProgress());
} else {
ServerMetrics.getMetrics().INFLIGHT_DIFF_COUNT.add(syncThrottler.getSyncInProgress());
}
syncThrottler = null;
// now that the ack has been processed expect the syncLimit
sock.setSoTimeout(learnerMaster.syncTimeout());
/*
* Wait until learnerMaster starts up
*/
learnerMaster.waitForStartup();
// Mutation packets will be queued during the serialize,
// so we need to mark when the peer can actually start
// using the data
//
LOG.debug("Sending UPTODATE message to {}", sid);
queuedPackets.add(new QuorumPacket(Leader.UPTODATE, -1, null, null));
while (true) {
qp = new QuorumPacket();
ia.readRecord(qp, "packet");
messageTracker.trackReceived(qp.getType());
if (LOG.isTraceEnabled()) {
long traceMask = ZooTrace.SERVER_PACKET_TRACE_MASK;
if (qp.getType() == Leader.PING) {
traceMask = ZooTrace.SERVER_PING_TRACE_MASK;
}
ZooTrace.logQuorumPacket(LOG, traceMask, 'i', qp);
}
tickOfNextAckDeadline = learnerMaster.getTickOfNextAckDeadline();
packetsReceived.incrementAndGet();
ByteBuffer bb;
long sessionId;
int cxid;
int type;
switch (qp.getType()) {
case Leader.ACK:
if (this.learnerType == LearnerType.OBSERVER) {
LOG.debug("Received ACK from Observer {}", this.sid);
}
syncLimitCheck.updateAck(qp.getZxid());
learnerMaster.processAck(this.sid, qp.getZxid(), sock.getLocalSocketAddress());
break;
case Leader.PING:
// Process the touches
ByteArrayInputStream bis = new ByteArrayInputStream(qp.getData());
DataInputStream dis = new DataInputStream(bis);
while (dis.available() > 0) {
long sess = dis.readLong();
int to = dis.readInt();
learnerMaster.touch(sess, to);
}
break;
case Leader.REVALIDATE:
ServerMetrics.getMetrics().REVALIDATE_COUNT.add(1);
learnerMaster.revalidateSession(qp, this);
break;
case Leader.REQUEST:
bb = ByteBuffer.wrap(qp.getData());
sessionId = bb.getLong();
cxid = bb.getInt();
type = bb.getInt();
bb = bb.slice();
Request si;
if (type == OpCode.sync) {
si = new LearnerSyncRequest(this, sessionId, cxid, type, bb, qp.getAuthinfo());
} else {
si = new Request(null, sessionId, cxid, type, bb, qp.getAuthinfo());
}
si.setOwner(this);
learnerMaster.submitLearnerRequest(si);
requestsReceived.incrementAndGet();
break;
default:
LOG.warn("unexpected quorum packet, type: {}", packetToString(qp));
break;
}
}
} catch (IOException e) {
LOG.error("Unexpected exception in LearnerHandler: ", e);
closeSocket();
} catch (InterruptedException e) {
LOG.error("Unexpected exception in LearnerHandler.", e);
} catch (SyncThrottleException e) {
LOG.error("too many concurrent sync.", e);
syncThrottler = null;
} catch (Exception e) {
LOG.error("Unexpected exception in LearnerHandler.", e);
throw e;
} finally {
if (syncThrottler != null) {
syncThrottler.endSync();
syncThrottler = null;
}
String remoteAddr = getRemoteAddress();
LOG.warn("******* GOODBYE {} ********", remoteAddr);
messageTracker.dumpToLog(remoteAddr);
shutdown();
}
}6. 创建registerWithLeader
- 回到Follower.followLeader()方法
java
void followLeader() throws InterruptedException {
......
try {
self.setZabState(QuorumPeer.ZabState.DISCOVERY);
// 查找 leader
QuorumServer leaderServer = findLeader();
try {
// 连接 leader
connectToLeader(leaderServer.addr, leaderServer.hostname);
connectionTime = System.currentTimeMillis();
// 向 leader 注册
long newEpochZxid = registerWithLeader(Leader.FOLLOWERINFO);
if (self.isReconfigStateChange()) {
throw new Exception("learned about role change");
}
//check to see if the leader zxid is lower than ours
//this should never happen but is just a safety check
long newEpoch = ZxidUtils.getEpochFromZxid(newEpochZxid);
if (newEpoch < self.getAcceptedEpoch()) {
LOG.error("Proposed leader epoch "
+ ZxidUtils.zxidToString(newEpochZxid)
+ " is less than our accepted epoch "
+ ZxidUtils.zxidToString(self.getAcceptedEpoch()));
throw new IOException("Error: Epoch of leader is lower");
}
long startTime = Time.currentElapsedTime();
self.setLeaderAddressAndId(leaderServer.addr, leaderServer.getId());
self.setZabState(QuorumPeer.ZabState.SYNCHRONIZATION);
syncWithLeader(newEpochZxid);
self.setZabState(QuorumPeer.ZabState.BROADCAST);
completedSync = true;
long syncTime = Time.currentElapsedTime() - startTime;
ServerMetrics.getMetrics().FOLLOWER_SYNC_TIME.add(syncTime);
if (self.getObserverMasterPort() > 0) {
LOG.info("Starting ObserverMaster");
om = new ObserverMaster(self, fzk, self.getObserverMasterPort());
om.start();
} else {
om = null;
}
// create a reusable packet to reduce gc impact
QuorumPacket qp = new QuorumPacket();
while (this.isRunning()) {
// 读取 packet 信息
readPacket(qp);
// 处理 packet 消息
processPacket(qp);
}
} catch (Exception e) {
LOG.warn("Exception when following the leader", e);
closeSocket();
// clear pending revalidations
pendingRevalidations.clear();
}
} finally {
......
}
}- 向Leader注册
java
protected long registerWithLeader(int pktType) throws IOException {
/*
* Send follower info, including last zxid and sid
*/
long lastLoggedZxid = self.getLastLoggedZxid();
QuorumPacket qp = new QuorumPacket();
qp.setType(pktType);
qp.setZxid(ZxidUtils.makeZxid(self.getAcceptedEpoch(), 0));
/*
* Add sid to payload
*/
LearnerInfo li = new LearnerInfo(self.getMyId(), 0x10000, self.getQuorumVerifier().getVersion());
ByteArrayOutputStream bsid = new ByteArrayOutputStream();
BinaryOutputArchive boa = BinaryOutputArchive.getArchive(bsid);
boa.writeRecord(li, "LearnerInfo");
qp.setData(bsid.toByteArray());
// 发送 FollowerInfo 给 Leader
writePacket(qp, true);
// 读取 Leader 返回的结果：LeaderInfo
readPacket(qp);
final long newEpoch = ZxidUtils.getEpochFromZxid(qp.getZxid());
// 如果接收到 LeaderInfo
if (qp.getType() == Leader.LEADERINFO) {
// we are connected to a 1.0 server so accept the new epoch and read the next packet
leaderProtocolVersion = ByteBuffer.wrap(qp.getData()).getInt();
byte[] epochBytes = new byte[4];
final ByteBuffer wrappedEpochBytes = ByteBuffer.wrap(epochBytes);
// 接收 leader 的 epoch
if (newEpoch > self.getAcceptedEpoch()) {
// 把自己原来的 epoch 保存在 wrappedEpochBytes 里
wrappedEpochBytes.putInt((int) self.getCurrentEpoch());
// 把 leader 发送过来的 epoch 保存起来
self.setAcceptedEpoch(newEpoch);
} else if (newEpoch == self.getAcceptedEpoch()) {
// since we have already acked an epoch equal to the leaders, we cannot ack
// again, but we still need to send our lastZxid to the leader so that we can
// sync with it if it does assume leadership of the epoch.
// the -1 indicates that this reply should not count as an ack for the new epoch
wrappedEpochBytes.putInt(-1);
} else {
throw new IOException("Leaders epoch, "
+ newEpoch
+ " is less than accepted epoch, "
+ self.getAcceptedEpoch());
}
// 发送 ackepoch 给 leader(包含了自己的：epoch 和 zxid)
QuorumPacket ackNewEpoch = new QuorumPacket(Leader.ACKEPOCH, lastLoggedZxid, epochBytes, null);
writePacket(ackNewEpoch, true);
return ZxidUtils.makeZxid(newEpoch, 0);
} else {
if (newEpoch > self.getAcceptedEpoch()) {
self.setAcceptedEpoch(newEpoch);
}
if (qp.getType() != Leader.NEWLEADER) {
LOG.error("First packet should have been NEWLEADER");
throw new IOException("First packet should have been NEWLEADER");
}
return qp.getZxid();
}
}7. Leader接收Follwer状态，根据同步方式发送同步消息
- 再次回到Leader中，接收状态消息 LearnerHandler.java
java
@Override
public void run() {
try {
learnerMaster.addLearnerHandler(this);
// 心跳处理
tickOfNextAckDeadline = learnerMaster.getTickOfInitialAckDeadline();
ia = BinaryInputArchive.getArchive(bufferedInput);
bufferedOutput = new BufferedOutputStream(sock.getOutputStream());
oa = BinaryOutputArchive.getArchive(bufferedOutput);
// 从网络中接收消息，并反序列化为packet
QuorumPacket qp = new QuorumPacket();
ia.readRecord(qp, "packet");
messageTracker.trackReceived(qp.getType());
// 选举结束后，observer和follower都应该给leader发送一个标志信息：FOLLOWERINFO或者OBSERVERINFO
if (qp.getType() != Leader.FOLLOWERINFO && qp.getType() != Leader.OBSERVERINFO) {
LOG.error("First packet {} is not FOLLOWERINFO or OBSERVERINFO!", qp.toString());
return;
}
if (learnerMaster instanceof ObserverMaster && qp.getType() != Leader.OBSERVERINFO) {
throw new IOException("Non observer attempting to connect to ObserverMaster. type = " + qp.getType());
}
byte[] learnerInfoData = qp.getData();
if (learnerInfoData != null) {
ByteBuffer bbsid = ByteBuffer.wrap(learnerInfoData);
if (learnerInfoData.length >= 8) {
this.sid = bbsid.getLong();
}
if (learnerInfoData.length >= 12) {
this.version = bbsid.getInt(); // protocolVersion
}
if (learnerInfoData.length >= 20) {
long configVersion = bbsid.getLong();
if (configVersion > learnerMaster.getQuorumVerifierVersion()) {
throw new IOException("Follower is ahead of the leader (has a later activated configuration)");
}
}
} else {
this.sid = learnerMaster.getAndDecrementFollowerCounter();
}
String followerInfo = learnerMaster.getPeerInfo(this.sid);
if (followerInfo.isEmpty()) {
LOG.info(
"Follower sid: {} not in the current config {}",
this.sid,
Long.toHexString(learnerMaster.getQuorumVerifierVersion()));
} else {
LOG.info("Follower sid: {} : info : {}", this.sid, followerInfo);
}
if (qp.getType() == Leader.OBSERVERINFO) {
learnerType = LearnerType.OBSERVER;
}
learnerMaster.registerLearnerHandlerBean(this, sock);
// 读取Follower发送过来的lastAcceptedEpoch
// 选举过程中，所使用的epoch，其实还是上一任leader的epoch
long lastAcceptedEpoch = ZxidUtils.getEpochFromZxid(qp.getZxid());
long peerLastZxid;
StateSummary ss = null;
// 读取 follower 发送过来的 zxid
long zxid = qp.getZxid();
// 获取 leader 的最新 epoch
// 新的 leader 会构建一个新的 epoch
long newEpoch = learnerMaster.getEpochToPropose(this.getSid(), lastAcceptedEpoch);
long newLeaderZxid = ZxidUtils.makeZxid(newEpoch, 0);
if (this.getVersion() < 0x10000) {
// we are going to have to extrapolate the epoch information
long epoch = ZxidUtils.getEpochFromZxid(zxid);
ss = new StateSummary(epoch, zxid);
// fake the message
learnerMaster.waitForEpochAck(this.getSid(), ss);
} else {
byte[] ver = new byte[4];
ByteBuffer.wrap(ver).putInt(0x10000);
// Leader 向 Follower 发送信息(包含:zxid 和 newEpoch)
QuorumPacket newEpochPacket = new QuorumPacket(Leader.LEADERINFO, newLeaderZxid, ver, null);
oa.writeRecord(newEpochPacket, "packet");
messageTracker.trackSent(Leader.LEADERINFO);
bufferedOutput.flush();
// 接收到Follower应答的ackepoch
QuorumPacket ackEpochPacket = new QuorumPacket();
ia.readRecord(ackEpochPacket, "packet");
messageTracker.trackReceived(ackEpochPacket.getType());
if (ackEpochPacket.getType() != Leader.ACKEPOCH) {
LOG.error("{} is not ACKEPOCH", ackEpochPacket.toString());
return;
}
ByteBuffer bbepoch = ByteBuffer.wrap(ackEpochPacket.getData());
// 保存了对方follower或者observer的状态：epoch和zxid
ss = new StateSummary(bbepoch.getInt(), ackEpochPacket.getZxid());
learnerMaster.waitForEpochAck(this.getSid(), ss);
}
peerLastZxid = ss.getLastZxid();
// Take any necessary action if we need to send TRUNC or DIFF
// startForwarding() will be called in all cases
// 方法判断Leader和Follower是否需要同步
boolean needSnap = syncFollower(peerLastZxid, learnerMaster);
// syncs between followers and the leader are exempt from throttling because it
// is important to keep the state of quorum servers up-to-date. The exempted syncs
// are counted as concurrent syncs though
boolean exemptFromThrottle = getLearnerType() != LearnerType.OBSERVER;
/* if we are not truncating or sending a diff just send a snapshot */
if (needSnap) {
syncThrottler = learnerMaster.getLearnerSnapSyncThrottler();
syncThrottler.beginSync(exemptFromThrottle);
ServerMetrics.getMetrics().INFLIGHT_SNAP_COUNT.add(syncThrottler.getSyncInProgress());
try {
long zxidToSend = learnerMaster.getZKDatabase().getDataTreeLastProcessedZxid();
oa.writeRecord(new QuorumPacket(Leader.SNAP, zxidToSend, null, null), "packet");
messageTracker.trackSent(Leader.SNAP);
bufferedOutput.flush();
LOG.info(
"Sending snapshot last zxid of peer is 0x{}, zxid of leader is 0x{}, "
+ "send zxid of db as 0x{}, {} concurrent snapshot sync, "
+ "snapshot sync was {} from throttle",
Long.toHexString(peerLastZxid),
Long.toHexString(leaderLastZxid),
Long.toHexString(zxidToSend),
syncThrottler.getSyncInProgress(),
exemptFromThrottle ? "exempt" : "not exempt");
// Dump data to peer
learnerMaster.getZKDatabase().serializeSnapshot(oa);
oa.writeString("BenWasHere", "signature");
bufferedOutput.flush();
} finally {
ServerMetrics.getMetrics().SNAP_COUNT.add(1);
}
} else {
syncThrottler = learnerMaster.getLearnerDiffSyncThrottler();
syncThrottler.beginSync(exemptFromThrottle);
ServerMetrics.getMetrics().INFLIGHT_DIFF_COUNT.add(syncThrottler.getSyncInProgress());
ServerMetrics.getMetrics().DIFF_COUNT.add(1);
}
LOG.debug("Sending NEWLEADER message to {}", sid);
// the version of this quorumVerifier will be set by leader.lead() in case
// the leader is just being established. waitForEpochAck makes sure that readyToStart is true if
// we got here, so the version was set
if (getVersion() < 0x10000) {
QuorumPacket newLeaderQP = new QuorumPacket(Leader.NEWLEADER, newLeaderZxid, null, null);
oa.writeRecord(newLeaderQP, "packet");
} else {
QuorumPacket newLeaderQP = new QuorumPacket(Leader.NEWLEADER, newLeaderZxid, learnerMaster.getQuorumVerifierBytes(), null);
queuedPackets.add(newLeaderQP);
}
bufferedOutput.flush();
// Start thread that blast packets in the queue to learner
startSendingPackets();
/*
* Have to wait for the first ACK, wait until
* the learnerMaster is ready, and only then we can
* start processing messages.
*/
qp = new QuorumPacket();
ia.readRecord(qp, "packet");
messageTracker.trackReceived(qp.getType());
if (qp.getType() != Leader.ACK) {
LOG.error("Next packet was supposed to be an ACK, but received packet: {}", packetToString(qp));
return;
}
LOG.debug("Received NEWLEADER-ACK message from {}", sid);
learnerMaster.waitForNewLeaderAck(getSid(), qp.getZxid());
syncLimitCheck.start();
// sync ends when NEWLEADER-ACK is received
syncThrottler.endSync();
if (needSnap) {
ServerMetrics.getMetrics().INFLIGHT_SNAP_COUNT.add(syncThrottler.getSyncInProgress());
} else {
ServerMetrics.getMetrics().INFLIGHT_DIFF_COUNT.add(syncThrottler.getSyncInProgress());
}
syncThrottler = null;
// now that the ack has been processed expect the syncLimit
sock.setSoTimeout(learnerMaster.syncTimeout());
/*
* Wait until learnerMaster starts up
*/
learnerMaster.waitForStartup();
// Mutation packets will be queued during the serialize,
// so we need to mark when the peer can actually start
// using the data
//
LOG.debug("Sending UPTODATE message to {}", sid);
queuedPackets.add(new QuorumPacket(Leader.UPTODATE, -1, null, null));
while (true) {
......
}
} catch (IOException e) {
......
} finally {
......
}
}- 判断和Follower的同步方式代码 LearnerHandler.java
java
boolean syncFollower(long peerLastZxid, LearnerMaster learnerMaster) {
/*
* When leader election is completed, the leader will set its
* lastProcessedZxid to be (epoch < 32). There will be no txn associated
* with this zxid.
*
* The learner will set its lastProcessedZxid to the same value if
* it get DIFF or SNAP from the learnerMaster. If the same learner come
* back to sync with learnerMaster using this zxid, we will never find this
* zxid in our history. In this case, we will ignore TRUNC logic and
* always send DIFF if we have old enough history
*/
boolean isPeerNewEpochZxid = (peerLastZxid & 0xffffffffL) == 0;
// Keep track of the latest zxid which already queued
long currentZxid = peerLastZxid;
boolean needSnap = true;
ZKDatabase db = learnerMaster.getZKDatabase();
boolean txnLogSyncEnabled = db.isTxnLogSyncEnabled();
ReentrantReadWriteLock lock = db.getLogLock();
ReadLock rl = lock.readLock();
try {
rl.lock();
long maxCommittedLog = db.getmaxCommittedLog();
long minCommittedLog = db.getminCommittedLog();
long lastProcessedZxid = db.getDataTreeLastProcessedZxid();
LOG.info("Synchronizing with Learner sid: {} maxCommittedLog=0x{}"
+ " minCommittedLog=0x{} lastProcessedZxid=0x{}"
+ " peerLastZxid=0x{}",
getSid(),
Long.toHexString(maxCommittedLog),
Long.toHexString(minCommittedLog),
Long.toHexString(lastProcessedZxid),
Long.toHexString(peerLastZxid));
if (db.getCommittedLog().isEmpty()) {
/*
* It is possible that committedLog is empty. In that case
* setting these value to the latest txn in learnerMaster db
* will reduce the case that we need to handle
*
* Here is how each case handle by the if block below
* 1. lastProcessZxid == peerZxid -> Handle by (2)
* 2. lastProcessZxid < peerZxid -> Handle by (3)
* 3. lastProcessZxid > peerZxid -> Handle by (5)
*/
minCommittedLog = lastProcessedZxid;
maxCommittedLog = lastProcessedZxid;
}
/*
* Here are the cases that we want to handle
*
* 1. Force sending snapshot (for testing purpose)
* 2. Peer and learnerMaster is already sync, send empty diff
* 3. Follower has txn that we haven't seen. This may be old leader
* so we need to send TRUNC. However, if peer has newEpochZxid,
* we cannot send TRUNC since the follower has no txnlog
* 4. Follower is within committedLog range or already in-sync.
* We may need to send DIFF or TRUNC depending on follower's zxid
* We always send empty DIFF if follower is already in-sync
* 5. Follower missed the committedLog. We will try to use on-disk
* txnlog + committedLog to sync with follower. If that fail,
* we will send snapshot
*/
if (forceSnapSync) {
// Force learnerMaster to use snapshot to sync with follower
LOG.warn("Forcing snapshot sync - should not see this in production");
} else if (lastProcessedZxid == peerLastZxid) {
// Follower is already sync with us, send empty diff
LOG.info(
"Sending DIFF zxid=0x{} for peer sid: {}",
Long.toHexString(peerLastZxid),
getSid());
queueOpPacket(Leader.DIFF, peerLastZxid);
needOpPacket = false;
needSnap = false;
} else if (peerLastZxid > maxCommittedLog && !isPeerNewEpochZxid) {
// Newer than committedLog, send trunc and done
LOG.debug(
"Sending TRUNC to follower zxidToSend=0x{} for peer sid:{}",
Long.toHexString(maxCommittedLog),
getSid());
queueOpPacket(Leader.TRUNC, maxCommittedLog);
currentZxid = maxCommittedLog;
needOpPacket = false;
needSnap = false;
} else if ((maxCommittedLog >= peerLastZxid) && (minCommittedLog <= peerLastZxid)) {
// Follower is within commitLog range
LOG.info("Using committedLog for peer sid: {}", getSid());
Iterator<Proposal> itr = db.getCommittedLog().iterator();
currentZxid = queueCommittedProposals(itr, peerLastZxid, null, maxCommittedLog);
needSnap = false;
} else if (peerLastZxid < minCommittedLog && txnLogSyncEnabled) {
// Use txnlog and committedLog to sync
// Calculate sizeLimit that we allow to retrieve txnlog from disk
long sizeLimit = db.calculateTxnLogSizeLimit();
// This method can return empty iterator if the requested zxid
// is older than on-disk txnlog
Iterator<Proposal> txnLogItr = db.getProposalsFromTxnLog(peerLastZxid, sizeLimit);
if (txnLogItr.hasNext()) {
LOG.info("Use txnlog and committedLog for peer sid: {}", getSid());
currentZxid = queueCommittedProposals(txnLogItr, peerLastZxid, minCommittedLog, maxCommittedLog);
if (currentZxid < minCommittedLog) {
LOG.info(
"Detected gap between end of txnlog: 0x{} and start of committedLog: 0x{}",
Long.toHexString(currentZxid),
Long.toHexString(minCommittedLog));
currentZxid = peerLastZxid;
// Clear out currently queued requests and revert
// to sending a snapshot.
queuedPackets.clear();
needOpPacket = true;
} else {
LOG.debug("Queueing committedLog 0x{}", Long.toHexString(currentZxid));
Iterator<Proposal> committedLogItr = db.getCommittedLog().iterator();
currentZxid = queueCommittedProposals(committedLogItr, currentZxid, null, maxCommittedLog);
needSnap = false;
}
}
// closing the resources
if (txnLogItr instanceof TxnLogProposalIterator) {
TxnLogProposalIterator txnProposalItr = (TxnLogProposalIterator) txnLogItr;
txnProposalItr.close();
}
} else {
LOG.warn(
"Unhandled scenario for peer sid: {} maxCommittedLog=0x{}"
+ " minCommittedLog=0x{} lastProcessedZxid=0x{}"
+ " peerLastZxid=0x{} txnLogSyncEnabled={}",
getSid(),
Long.toHexString(maxCommittedLog),
Long.toHexString(minCommittedLog),
Long.toHexString(lastProcessedZxid),
Long.toHexString(peerLastZxid),
txnLogSyncEnabled);
}
if (needSnap) {
currentZxid = db.getDataTreeLastProcessedZxid();
}
LOG.debug("Start forwarding 0x{} for peer sid: {}", Long.toHexString(currentZxid), getSid());
leaderLastZxid = learnerMaster.startForwarding(this, currentZxid);
} finally {
rl.unlock();
}
if (needOpPacket && !needSnap) {
// This should never happen, but we should fall back to sending
// snapshot just in case.
LOG.error("Unhandled scenario for peer sid: {} fall back to use snapshot", getSid());
needSnap = true;
}
return needSnap;
}8. Follower应答Leader同步结果
- 回到Follower，处理Leader同步过来的数据
java
protected void processPacket(QuorumPacket qp) throws Exception {
switch (qp.getType()) {
case Leader.PING:
ping(qp);
break;
case Leader.PROPOSAL:
ServerMetrics.getMetrics().LEARNER_PROPOSAL_RECEIVED_COUNT.add(1);
TxnLogEntry logEntry = SerializeUtils.deserializeTxn(qp.getData());
TxnHeader hdr = logEntry.getHeader();
Record txn = logEntry.getTxn();
TxnDigest digest = logEntry.getDigest();
if (hdr.getZxid() != lastQueued + 1) {
LOG.warn(
"Got zxid 0x{} expected 0x{}",
Long.toHexString(hdr.getZxid()),
Long.toHexString(lastQueued + 1));
}
lastQueued = hdr.getZxid();
if (hdr.getType() == OpCode.reconfig) {
SetDataTxn setDataTxn = (SetDataTxn) txn;
QuorumVerifier qv = self.configFromString(new String(setDataTxn.getData(), UTF_8));
self.setLastSeenQuorumVerifier(qv, true);
}
fzk.logRequest(hdr, txn, digest);
if (hdr != null) {
/*
* Request header is created only by the leader, so this is only set
* for quorum packets. If there is a clock drift, the latency may be
* negative. Headers use wall time, not CLOCK_MONOTONIC.
*/
long now = Time.currentWallTime();
long latency = now - hdr.getTime();
if (latency >= 0) {
ServerMetrics.getMetrics().PROPOSAL_LATENCY.add(latency);
}
}
if (om != null) {
final long startTime = Time.currentElapsedTime();
om.proposalReceived(qp);
ServerMetrics.getMetrics().OM_PROPOSAL_PROCESS_TIME.add(Time.currentElapsedTime() - startTime);
}
break;
case Leader.COMMIT:
ServerMetrics.getMetrics().LEARNER_COMMIT_RECEIVED_COUNT.add(1);
fzk.commit(qp.getZxid());
if (om != null) {
final long startTime = Time.currentElapsedTime();
om.proposalCommitted(qp.getZxid());
ServerMetrics.getMetrics().OM_COMMIT_PROCESS_TIME.add(Time.currentElapsedTime() - startTime);
}
break;
case Leader.COMMITANDACTIVATE:
// get the new configuration from the request
Request request = fzk.pendingTxns.element();
SetDataTxn setDataTxn = (SetDataTxn) request.getTxn();
QuorumVerifier qv = self.configFromString(new String(setDataTxn.getData(), UTF_8));
// get new designated leader from (current) leader's message
ByteBuffer buffer = ByteBuffer.wrap(qp.getData());
long suggestedLeaderId = buffer.getLong();
final long zxid = qp.getZxid();
boolean majorChange = self.processReconfig(qv, suggestedLeaderId, zxid, true);
// commit (writes the new config to ZK tree (/zookeeper/config)
fzk.commit(zxid);
if (om != null) {
om.informAndActivate(zxid, suggestedLeaderId);
}
if (majorChange) {
throw new Exception("changes proposed in reconfig");
}
break;
case Leader.UPTODATE:
LOG.error("Received an UPTODATE message after Follower started");
break;
case Leader.REVALIDATE:
if (om == null || !om.revalidateLearnerSession(qp)) {
revalidate(qp);
}
break;
case Leader.SYNC:
fzk.sync();
break;
default:
LOG.warn("Unknown packet type: {}", LearnerHandler.packetToString(qp));
break;
}
}- 完成同步
java
public void commit(long zxid) {
if (pendingTxns.size() == 0) {
LOG.warn("Committing " + Long.toHexString(zxid) + " without seeing txn");
return;
}
long firstElementZxid = pendingTxns.element().zxid;
if (firstElementZxid != zxid) {
LOG.error("Committing zxid 0x" + Long.toHexString(zxid)
+ " but next pending txn 0x" + Long.toHexString(firstElementZxid));
ServiceUtils.requestSystemExit(ExitCode.UNMATCHED_TXN_COMMIT.getValue());
}
Request request = pendingTxns.remove();
request.logLatency(ServerMetrics.getMetrics().COMMIT_PROPAGATION_LATENCY);
commitProcessor.commit(request);
}9. Leader应答Follower
最后回到Leader中，LearnerHandler.java
java
@Override
public void run() {
try {
learnerMaster.addLearnerHandler(this);
tickOfNextAckDeadline = learnerMaster.getTickOfInitialAckDeadline();
ia = BinaryInputArchive.getArchive(bufferedInput);
bufferedOutput = new BufferedOutputStream(sock.getOutputStream());
oa = BinaryOutputArchive.getArchive(bufferedOutput);
QuorumPacket qp = new QuorumPacket();
ia.readRecord(qp, "packet");
messageTracker.trackReceived(qp.getType());
if (qp.getType() != Leader.FOLLOWERINFO && qp.getType() != Leader.OBSERVERINFO) {
LOG.error("First packet {} is not FOLLOWERINFO or OBSERVERINFO!", qp.toString());
return;
}
if (learnerMaster instanceof ObserverMaster && qp.getType() != Leader.OBSERVERINFO) {
throw new IOException("Non observer attempting to connect to ObserverMaster. type = " + qp.getType());
}
byte[] learnerInfoData = qp.getData();
if (learnerInfoData != null) {
ByteBuffer bbsid = ByteBuffer.wrap(learnerInfoData);
if (learnerInfoData.length >= 8) {
this.sid = bbsid.getLong();
}
if (learnerInfoData.length >= 12) {
this.version = bbsid.getInt(); // protocolVersion
}
if (learnerInfoData.length >= 20) {
long configVersion = bbsid.getLong();
if (configVersion > learnerMaster.getQuorumVerifierVersion()) {
throw new IOException("Follower is ahead of the leader (has a later activated configuration)");
}
}
} else {
this.sid = learnerMaster.getAndDecrementFollowerCounter();
}
String followerInfo = learnerMaster.getPeerInfo(this.sid);
if (followerInfo.isEmpty()) {
LOG.info(
"Follower sid: {} not in the current config {}",
this.sid,
Long.toHexString(learnerMaster.getQuorumVerifierVersion()));
} else {
LOG.info("Follower sid: {} : info : {}", this.sid, followerInfo);
}
if (qp.getType() == Leader.OBSERVERINFO) {
learnerType = LearnerType.OBSERVER;
}
learnerMaster.registerLearnerHandlerBean(this, sock);
long lastAcceptedEpoch = ZxidUtils.getEpochFromZxid(qp.getZxid());
long peerLastZxid;
StateSummary ss = null;
long zxid = qp.getZxid();
long newEpoch = learnerMaster.getEpochToPropose(this.getSid(), lastAcceptedEpoch);
long newLeaderZxid = ZxidUtils.makeZxid(newEpoch, 0);
if (this.getVersion() < 0x10000) {
// we are going to have to extrapolate the epoch information
long epoch = ZxidUtils.getEpochFromZxid(zxid);
ss = new StateSummary(epoch, zxid);
// fake the message
learnerMaster.waitForEpochAck(this.getSid(), ss);
} else {
byte[] ver = new byte[4];
ByteBuffer.wrap(ver).putInt(0x10000);
QuorumPacket newEpochPacket = new QuorumPacket(Leader.LEADERINFO, newLeaderZxid, ver, null);
oa.writeRecord(newEpochPacket, "packet");
messageTracker.trackSent(Leader.LEADERINFO);
bufferedOutput.flush();
QuorumPacket ackEpochPacket = new QuorumPacket();
ia.readRecord(ackEpochPacket, "packet");
messageTracker.trackReceived(ackEpochPacket.getType());
if (ackEpochPacket.getType() != Leader.ACKEPOCH) {
LOG.error("{} is not ACKEPOCH", ackEpochPacket.toString());
return;
}
ByteBuffer bbepoch = ByteBuffer.wrap(ackEpochPacket.getData());
ss = new StateSummary(bbepoch.getInt(), ackEpochPacket.getZxid());
learnerMaster.waitForEpochAck(this.getSid(), ss);
}
peerLastZxid = ss.getLastZxid();
// Take any necessary action if we need to send TRUNC or DIFF
// startForwarding() will be called in all cases
boolean needSnap = syncFollower(peerLastZxid, learnerMaster);
// syncs between followers and the leader are exempt from throttling because it
// is important to keep the state of quorum servers up-to-date. The exempted syncs
// are counted as concurrent syncs though
boolean exemptFromThrottle = getLearnerType() != LearnerType.OBSERVER;
/* if we are not truncating or sending a diff just send a snapshot */
if (needSnap) {
syncThrottler = learnerMaster.getLearnerSnapSyncThrottler();
syncThrottler.beginSync(exemptFromThrottle);
ServerMetrics.getMetrics().INFLIGHT_SNAP_COUNT.add(syncThrottler.getSyncInProgress());
try {
long zxidToSend = learnerMaster.getZKDatabase().getDataTreeLastProcessedZxid();
oa.writeRecord(new QuorumPacket(Leader.SNAP, zxidToSend, null, null), "packet");
messageTracker.trackSent(Leader.SNAP);
bufferedOutput.flush();
LOG.info(
"Sending snapshot last zxid of peer is 0x{}, zxid of leader is 0x{}, "
+ "send zxid of db as 0x{}, {} concurrent snapshot sync, "
+ "snapshot sync was {} from throttle",
Long.toHexString(peerLastZxid),
Long.toHexString(leaderLastZxid),
Long.toHexString(zxidToSend),
syncThrottler.getSyncInProgress(),
exemptFromThrottle ? "exempt" : "not exempt");
// Dump data to peer
learnerMaster.getZKDatabase().serializeSnapshot(oa);
oa.writeString("BenWasHere", "signature");
bufferedOutput.flush();
} finally {
ServerMetrics.getMetrics().SNAP_COUNT.add(1);
}
} else {
syncThrottler = learnerMaster.getLearnerDiffSyncThrottler();
syncThrottler.beginSync(exemptFromThrottle);
ServerMetrics.getMetrics().INFLIGHT_DIFF_COUNT.add(syncThrottler.getSyncInProgress());
ServerMetrics.getMetrics().DIFF_COUNT.add(1);
}
LOG.debug("Sending NEWLEADER message to {}", sid);
// the version of this quorumVerifier will be set by leader.lead() in case
// the leader is just being established. waitForEpochAck makes sure that readyToStart is true if
// we got here, so the version was set
if (getVersion() < 0x10000) {
QuorumPacket newLeaderQP = new QuorumPacket(Leader.NEWLEADER, newLeaderZxid, null, null);
oa.writeRecord(newLeaderQP, "packet");
} else {
QuorumPacket newLeaderQP = new QuorumPacket(Leader.NEWLEADER, newLeaderZxid, learnerMaster.getQuorumVerifierBytes(), null);
queuedPackets.add(newLeaderQP);
}
bufferedOutput.flush();
// Start thread that blast packets in the queue to learner
startSendingPackets();
/*
* Have to wait for the first ACK, wait until
* the learnerMaster is ready, and only then we can
* start processing messages.
*/
qp = new QuorumPacket();
ia.readRecord(qp, "packet");
messageTracker.trackReceived(qp.getType());
if (qp.getType() != Leader.ACK) {
LOG.error("Next packet was supposed to be an ACK, but received packet: {}", packetToString(qp));
return;
}
LOG.debug("Received NEWLEADER-ACK message from {}", sid);
learnerMaster.waitForNewLeaderAck(getSid(), qp.getZxid());
syncLimitCheck.start();
// sync ends when NEWLEADER-ACK is received
syncThrottler.endSync();
if (needSnap) {
ServerMetrics.getMetrics().INFLIGHT_SNAP_COUNT.add(syncThrottler.getSyncInProgress());
} else {
ServerMetrics.getMetrics().INFLIGHT_DIFF_COUNT.add(syncThrottler.getSyncInProgress());
}
syncThrottler = null;
// now that the ack has been processed expect the syncLimit
sock.setSoTimeout(learnerMaster.syncTimeout());
/*
* Wait until learnerMaster starts up
*/
learnerMaster.waitForStartup();
// Mutation packets will be queued during the serialize,
// so we need to mark when the peer can actually start
// using the data
//
LOG.debug("Sending UPTODATE message to {}", sid);
queuedPackets.add(new QuorumPacket(Leader.UPTODATE, -1, null, null));
while (true) {
qp = new QuorumPacket();
ia.readRecord(qp, "packet");
messageTracker.trackReceived(qp.getType());
if (LOG.isTraceEnabled()) {
long traceMask = ZooTrace.SERVER_PACKET_TRACE_MASK;
if (qp.getType() == Leader.PING) {
traceMask = ZooTrace.SERVER_PING_TRACE_MASK;
}
ZooTrace.logQuorumPacket(LOG, traceMask, 'i', qp);
}
tickOfNextAckDeadline = learnerMaster.getTickOfNextAckDeadline();
packetsReceived.incrementAndGet();
ByteBuffer bb;
long sessionId;
int cxid;
int type;
switch (qp.getType()) {
case Leader.ACK:
if (this.learnerType == LearnerType.OBSERVER) {
LOG.debug("Received ACK from Observer {}", this.sid);
}
syncLimitCheck.updateAck(qp.getZxid());
learnerMaster.processAck(this.sid, qp.getZxid(), sock.getLocalSocketAddress());
break;
case Leader.PING:
// Process the touches
ByteArrayInputStream bis = new ByteArrayInputStream(qp.getData());
DataInputStream dis = new DataInputStream(bis);
while (dis.available() > 0) {
long sess = dis.readLong();
int to = dis.readInt();
learnerMaster.touch(sess, to);
}
break;
case Leader.REVALIDATE:
ServerMetrics.getMetrics().REVALIDATE_COUNT.add(1);
learnerMaster.revalidateSession(qp, this);
break;
case Leader.REQUEST:
bb = ByteBuffer.wrap(qp.getData());
sessionId = bb.getLong();
cxid = bb.getInt();
type = bb.getInt();
bb = bb.slice();
Request si;
if (type == OpCode.sync) {
si = new LearnerSyncRequest(this, sessionId, cxid, type, bb, qp.getAuthinfo());
} else {
si = new Request(null, sessionId, cxid, type, bb, qp.getAuthinfo());
}
si.setOwner(this);
learnerMaster.submitLearnerRequest(si);
requestsReceived.incrementAndGet();
break;
default:
LOG.warn("unexpected quorum packet, type: {}", packetToString(qp));
break;
}
}
} catch (IOException e) {
LOG.error("Unexpected exception in LearnerHandler: ", e);
closeSocket();
} catch (InterruptedException e) {
LOG.error("Unexpected exception in LearnerHandler.", e);
} catch (SyncThrottleException e) {
LOG.error("too many concurrent sync.", e);
syncThrottler = null;
} catch (Exception e) {
LOG.error("Unexpected exception in LearnerHandler.", e);
throw e;
} finally {
if (syncThrottler != null) {
syncThrottler.endSync();
syncThrottler = null;
}
String remoteAddr = getRemoteAddress();
LOG.warn("******* GOODBYE {} ********", remoteAddr);
messageTracker.dumpToLog(remoteAddr);
shutdown();
}
}
